Quick Details
-
Brand Name:
-
MINGCH or OEM Logo
-
Model Number:
-
SBW-200KVA(50KVA up to 600KVA)
-
Item Name:
-
Voltage Regulator Tester
-
Capacity:
-
200KVA (50 KVA to 600 KVA Available)
-
Input Voltage:
-
Single Phase 175 to 265 V, Three Voltage 300 to 456 V
-
Output Voltage:
-
Single Phase 220 V, Three Voltage 380V
-
Efficiency:
-
≥95%
-
Response Time:
-
≤1.5 S
-
Ambient Temperature:
-
-10℃~+40℃
-
Usage:
-
To stabilize the input voltage automatically
-
Protection:
-
Over/Under Voltage, Short Circuit, Over Temperature, Phase Failure,etc
-
Main Products:
-
Voltage Regulator,Voltage Stabilizer,AVR,UPS,Inverter and so on.
Quick Details
-
Phase:
-
Three Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MINGCH or OEM Logo
-
Model Number:
-
SBW-200KVA(50KVA up to 600KVA)
-
Item Name:
-
Voltage Regulator Tester
-
Capacity:
-
200KVA (50 KVA to 600 KVA Available)
-
Input Voltage:
-
Single Phase 175 to 265 V, Three Voltage 300 to 456 V
-
Output Voltage:
-
Single Phase 220 V, Three Voltage 380V
-
Efficiency:
-
≥95%
-
Response Time:
-
≤1.5 S
-
Ambient Temperature:
-
-10℃~+40℃
-
Usage:
-
To stabilize the input voltage automatically
-
Protection:
-
Over/Under Voltage, Short Circuit, Over Temperature, Phase Failure,etc
-
Main Products:
-
Voltage Regulator,Voltage Stabilizer,AVR,UPS,Inverter and so on.
You are here: Home >> Voltage Regulators/Stabilizers >> SBW Voltage Regulators/Stabilizers

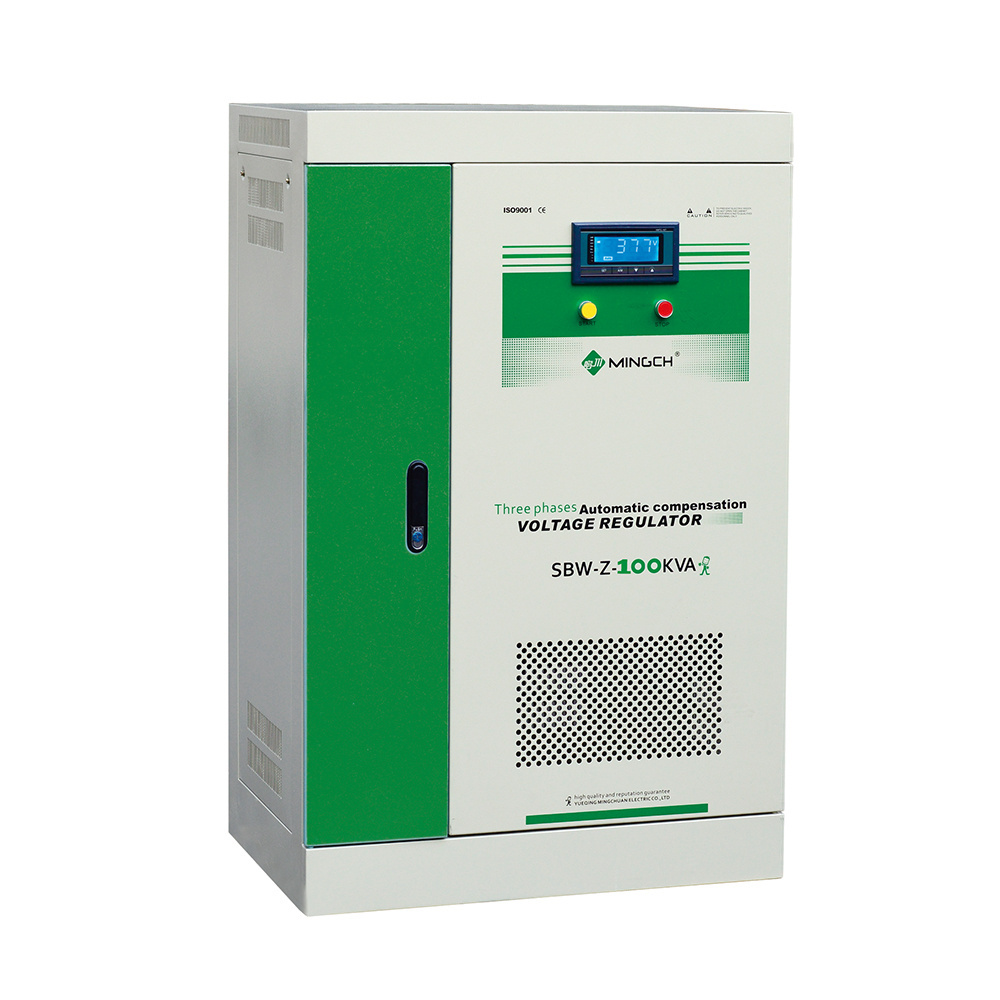

MINGCH Wholesale SBW 100kva 150kva 200KVA 300kva 100% load 380v high precision automatic voltage stabilizer/ regulator
SBW three phases AC voltage stabilizer is a contact adjustable automatic voltage compensation high power regulating power device. When voltage from support network is varied due to loading current effected,it automatically regulates the output voltage to ensure the normal function of the varied of electric equipments.
- L arge capacity,high efficiency,no waveform distortion,stable voltage regulation
- Widely load applied,stand by the instantaneous overload&continuous long work, manual/auto switch
- Provide over voltage, lack phase, phase order and machine faulty automatically protect
- Conveniently assemble and reliably operating(can be made digital display/analog display)
|
Specification |
SBW-50KVA up to 600KVA |
|
|
Input Voltage |
Single Phase:175V-265V |
Three Phase:300V-456V |
|
Output Voltage |
Single Phase:220V |
Three Phase:380V |
|
Output Deviance |
1-5%(Adjustable) |
|
|
Frequency |
50/60Hz |
|
|
Efficiency |
≥95% |
|
|
Response Time |
≤1.5S |
|
|
Ambient Temperature |
-10℃~+40℃ |
|
|
Insulation Resistance |
≥5MΩ |
|
|
Overload |
Double Reted Current,One Min |
|
|
Waveform Distortion |
Non-Lack Fidelity Wareform |
|
|
Protect |
Overvoltage,Overcurrent,Lack Phases |
|
| Trade Items | ||
|
MOQ |
1 Set |
|
|
Design Ability |
OEM&ODM is welcome,can supply sample | |
|
Certification |
CCC,CE,ISO9001, ISO14001,SGS | |
|
Packing |
Standard Export Packing | |
|
Payment Term |
Trade Assurance,T/T,L/C,D/A,D/P Western Union MoneyGram and so on | |
| Delivery time | 7-10 working days after payment received | |
|
Model |
Output Power (KVA) |
Outline (L*W*H, CM) |
Weight (KG) |
|
SBW-50 K |
50 |
80*54*135 |
250 |
|
SBW-60 K |
60 |
80*54*135 |
255 |
|
SBW-100 K |
100 |
85*62*150 |
357 |
|
SBW-150 K |
150 |
100*70*165 |
482 |
|
SBW-180 K |
180 |
100*70*165 |
515 |
|
SBW-200 K |
200 |
100*70*165 |
562 |
|
SBW-225 K |
225 |
110*80*185 |
670 |
|
SBW-250 K |
250 |
110*80*185 |
710 |
|
SBW-300 K |
300 |
110*80*195 |
755 |
|
SBW-320 K |
320 |
110*80*195 |
810 |
|
SBW-400 K |
400 |
100*80*200 Double cabinet |
1175 |
|
SBW-500 K |
500 |
100*80*200 Double cabinet |
1510 |
|
SBW-600 K |
600 |
100*80*200 Double cabinet |
1790 |
