Quick Details
-
Liquid Flow Rate:
-
0.11-0.22
-
Maximum Working Pressure:
-
5.5-16.6Kpa
-
Weight:
-
6 KG
-
Material:
-
copper
-
Application:
-
Heat Transfer Cooling
-
Heat exchanger type:
-
Plate Heater Exchanger
-
Plate thickness:
-
0.5-1.0mm
-
Keyword:
-
High Efficiency Clean Stream Heat Exchanger
-
Certification:
-
Ce/ISO 9001
-
Fin type:
-
Flat Fin
-
weight:
-
6kgs
Quick Details
-
Structure:
-
Plate Heat Exchanger
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
refworld
-
Liquid Flow Rate:
-
0.11-0.22
-
Maximum Working Pressure:
-
5.5-16.6Kpa
-
Weight:
-
6 KG
-
Material:
-
copper
-
Application:
-
Heat Transfer Cooling
-
Heat exchanger type:
-
Plate Heater Exchanger
-
Plate thickness:
-
0.5-1.0mm
-
Keyword:
-
High Efficiency Clean Stream Heat Exchanger
-
Certification:
-
Ce/ISO 9001
-
Fin type:
-
Flat Fin
-
weight:
-
6kgs
Product Introduction :
Its advantages: pressure proof, quake proof, Deformation proof, dirty proof,oil returning smoothly, safe and high-quality,leak proof, convenient,reasonable price,well applied into heat pump system.
Product Features :
• Low water quality requirements.A strong turbulent flow will be formed,and the water side is not easy to block the water side.
• Due to its structure,the product has good oil return characteristics.
• Heating and cooling capacity performance is relatively balanced.
• Due to its structure,the product has good oil return characteristics.
• Heating and cooling capacity performance is relatively balanced.
• According to different application scenarios,different heat exchange tubes can be selected.

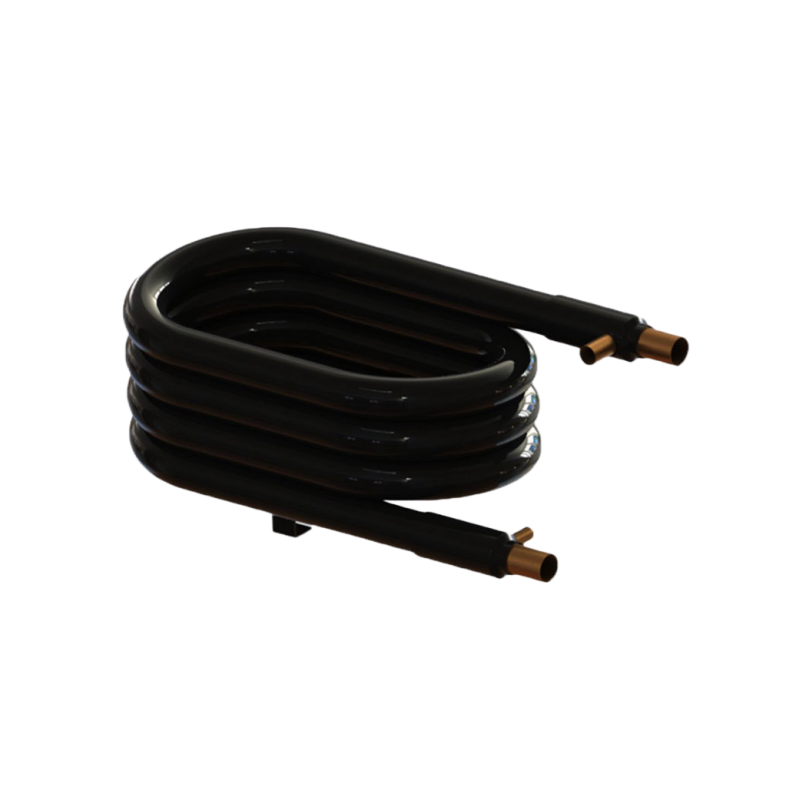

5HP Water loop water-cooled packaged air condition coaxial heat exchanger
|
Water Inlet Temp. |
Water Flow Rate |
Water Depressure |
Condensation
|
Evaporation
|
||
|
Heating Capacity |
Water Outlet Temp. |
Cooling capacity |
Water Outlet Temp. |
|||
| L/S | Kpa | KW | Kw | |||
| 4.4 | 0.13 | 7.6 | 5.625 | 15.1 | 3.045 | —— |
| 5.945 | 15.7 | 2.74 | —— | |||
| 6.131 | 16 | 2.478 | —— | |||
| 6.320 | 16.4 | 2.217 | —— | |||
| 0.19 | 13.8 | 5.759 | 11.7 | 3.177 | 0.4 | |
| 6.089 | 12.1 | 2.862 | 0.8 | |||
| 6.280 | 12.3 | 2.592 | 1.1 | |||
| 6.475 | 12.6 | 2.322 | 1.5 | |||
| 0.25 | 22.1 | 5.858 | 10 | 3.268 | 1.3 | |
| 6.195 | 10.3 | 2.944 | 1.6 | |||
| 6.390 | 10.5 | 2.866 | 1.9 | |||
| 6.590 | 10.7 | 2.388 | 2.1 | |||
| 10.0 | 0.13 | 7.6 | 5.479 | 20.4 | 3.582 | 3.4 |
| 5.787 | 21.0 | 3.238 | 4.0 | |||
| 5.965 | 21.3 | 2.943 | 4.6 | |||
| 6.147 | 21.7 | 2.649 | 5.1 | |||
| 0.19 | 13.8 | 5.605 | 17.1 | 3.736 | 5.3 | |
| 5.922 | 17.5 | 3.38 | 5.7 | |||
| 6.105 | 17.7 | 3.075 | 6.1 | |||
| 6.293 | 18.0 | 2.771 | 6.5 | |||
| 0.25 | 22.1 | 5.697 | 15.4 | 3.843 | 6.3 | |
| 6.021 | 15.7 | 3.477 | 6.7 | |||
| 6.208 | 15.9 | 3.163 | 7.0 | |||
| 6.400 | 16.1 | 2.850 | 7.3 | |||
