Quick Details
-
Output Speed:
-
25~300rpm, 25~300rpm
-
Warranty:
-
one year
-
Weight (KG):
-
1 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
kilomega
-
Product name:
-
shaft mount speed reducer shaft output transmission gear boxes
-
Keyword:
-
gear boxes
-
Material:
-
Iron Casting
-
Application:
-
Mining Plant
-
Packing:
-
Wooden Box
-
Ratio:
-
1/15
-
Mounting Position:
-
Torque Arm Mounted
-
Certification:
-
pcoc
Quick Details
-
Gearing Arrangement:
-
Cycloidal
-
Output Torque:
-
Upto 20000 Nm
-
Input Speed:
-
1400, 900, 500rpm, 1400, 900, 500rpm
-
Output Speed:
-
25~300rpm, 25~300rpm
-
Warranty:
-
one year
-
Weight (KG):
-
1 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
kilomega
-
Product name:
-
shaft mount speed reducer shaft output transmission gear boxes
-
Keyword:
-
gear boxes
-
Material:
-
Iron Casting
-
Application:
-
Mining Plant
-
Packing:
-
Wooden Box
-
Ratio:
-
1/15
-
Mounting Position:
-
Torque Arm Mounted
-
Certification:
-
pcoc
Products Description

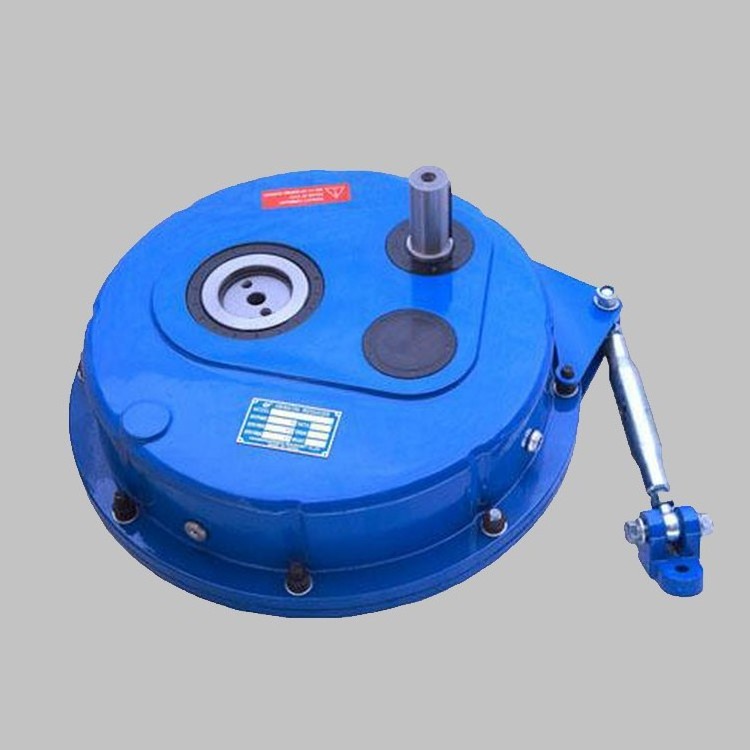

Shaft mounted Gearbox Reducer
Special for your Belt Conveyor
KTA Series Shaft mounted Gearbox Reducer
SMR Series Shaft mounted Gearbox Reducer
A famous product in Middle East, Africa, Asia.
Exporting to Saudi, UAE, Jordan, Oman, Syria, Yemen, Kuwait, Egypt, Libya, Algeria, Morocco, Tunisia, Tanzania, Sudan, Kenya, Uganda, Ethiopia, Burkina Faso, Ecuador, Columbia, Venezuela, Peru, Brazil, Chile, Uruguay, Argentina, Bolivia, Malaysia, Indonesia, Vietnam, Thailand, Srilanka, and so on more than 70 countries.
KTA series shaft mounted gearbox(speed reducer) with helical hardened gears has the characteristics of high carrying capacity, smooth transmission, light weight, low energy consumption and so on. Input shaft of KTA speed reducer is connected with gear motor by belt pulley, hollow output shaft is linked with a key. It can be replaced by electric drum as power for belt conveyors and lifting equipments. KTA series shaft mounted gearbox could be attached with back-stop to avoid the working machine back skating, and conveniently mounted by tie rod. KTA series shaft mounted speed reducer is widely applied in the mining equipments, concrete mixing batching plant, stone crushers, sand making production line and other belt conveyors, mechanical transmission areas.
Mechanical belt conveyors drive system is composed of KTA shaft mounted speed reducer, torque arm, pulleys and gear motors, whose power transmission from the gear motor to the gearbox through the pulley, and then speed reducer passed to the drive pulley through the hollow output shaft and the gearbox is fixed by torque arm, anti-slip device can be configured. The system is convenient to install,use and maintain.
Mechanical belt conveyors drive system is composed of KTA shaft mounted speed reducer, torque arm, pulleys and gear motors, whose power transmission from the gear motor to the gearbox through the pulley, and then speed reducer passed to the drive pulley through the hollow output shaft and the gearbox is fixed by torque arm, anti-slip device can be configured. The system is convenient to install,use and maintain.
Features
Mounting Type : Tie rod Hanging shaft mounted
Output Shaft : Single key hollow shaft, each model can select three hollow diameter at most.
Gearbox Housing : Hard Iron Steel, can be used outside.
Anti-slip device : Can suit for any model, It's very convenient to be mounted.
Mounting Type : Tie rod Hanging shaft mounted
Output Shaft : Single key hollow shaft, each model can select three hollow diameter at most.
Gearbox Housing : Hard Iron Steel, can be used outside.
Anti-slip device : Can suit for any model, It's very convenient to be mounted.
Application
Material Handling Industry, Quarrying and Mining Industry, Mining Equipment,
Stone crushers plant , Cement plant, Concrete batch mixing plant, Mining conveyors, Port transfer conveyor, Crushing machine, etc ···
Characteristic
1) All gears are heat treated and fixed to achieve low noise and high output
2) Mounting dimensions are interchangeable with Fenner
2) Mounting dimensions are interchangeable with Fenner
Product Paramenters
|
TA Shaft Mounted Reducer
|
Output Shaft Bore [mm]
|
Ratio(i)
|
Rated torque
|
|
KTA30
|
Φ30
|
7, 10, 12.5
|
180N.m
|
|
KTA35
|
Φ35
|
5,10,15,20,25
|
420N.m
|
|
KTA40
|
Φ40
|
5,10,12.5,15,20,25
|
900N.m
|
|
|
Φ45
|
5,10,15,20,25
|
|
|
KTA45
|
Φ45
|
5,10,12.5,15,20,25
|
1400N.m
|
|
|
Φ50
|
|
|
|
|
Φ55
|
|
|
|
KTA50
|
Φ50
|
5,10,12.5,15,20,25
|
2300N.m
|
|
|
Φ55
|
|
|
|
|
Φ60
|
|
|
|
KTA60
|
Φ60
|
5,10,12.5,15,20,25
|
3600N.m
|
|
|
Φ70
|
|
|
|
KTA70
|
Φ70
|
5,10,12.5,15,20,25,31
|
5100N.m
|
|
|
Φ85
|
|
|
|
KTA80
|
Φ80
|
5,10,12.5,15,20,25,31
|
7000N.m
|
|
|
Φ100
|
|
|
|
KTA100
|
Φ100
|
5,10,12.5,15,20,25,31
|
11000N.m
|
|
TA125
|
Φ125
|
|
|
|
KTA125
|
Φ125
|
5,10,12.5,15,20,25,31
|
17000N.m
|
|
|
Φ135
|
|
|
|
SMR
Model No.
|
Output Shaft Bore
[mm]
|
|
Ratio(i)
|
|
|
|
Standard
|
Alternative
|
5:1
13:1
20:1
|
|
|
B
|
30
|
Φ40
|
|
|
|
C
|
Φ40
|
Φ50
|
|
|
|
D
|
Φ50
|
Φ55
|
|
|
|
E
|
Φ55
|
Φ65
|
|
|
|
F
|
Φ65
|
Φ75
|
|
|
|
G
|
Φ75
|
Φ85
|
|
|
|
H
|
Φ85
|
Φ100
|
|
|
|
J
|
Φ100
|
Φ120
|
|
|
