Quick Details
-
Coil Number:
-
as per customer datasheet
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jiangyin Spark
-
Model Number:
-
XH-SCT-
-
current transformer:
-
split core current transformer
-
primary:
-
300A-800
-
Usage:
-
energy monitoring
-
housing case:
-
UL94-V0
-
color:
-
black
-
certificate:
-
CE UL ETL ISO
-
Insulation:
-
3KV
-
Accuracy:
-
0.5 1.0
-
Frequency:
-
50Hz/60Hz
Quick Details
-
Use:
-
current
-
Phase:
-
Single
-
Coil Structure:
-
TOROIDAL
-
Coil Number:
-
as per customer datasheet
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jiangyin Spark
-
Model Number:
-
XH-SCT-
-
current transformer:
-
split core current transformer
-
primary:
-
300A-800
-
Usage:
-
energy monitoring
-
housing case:
-
UL94-V0
-
color:
-
black
-
certificate:
-
CE UL ETL ISO
-
Insulation:
-
3KV
-
Accuracy:
-
0.5 1.0
-
Frequency:
-
50Hz/60Hz

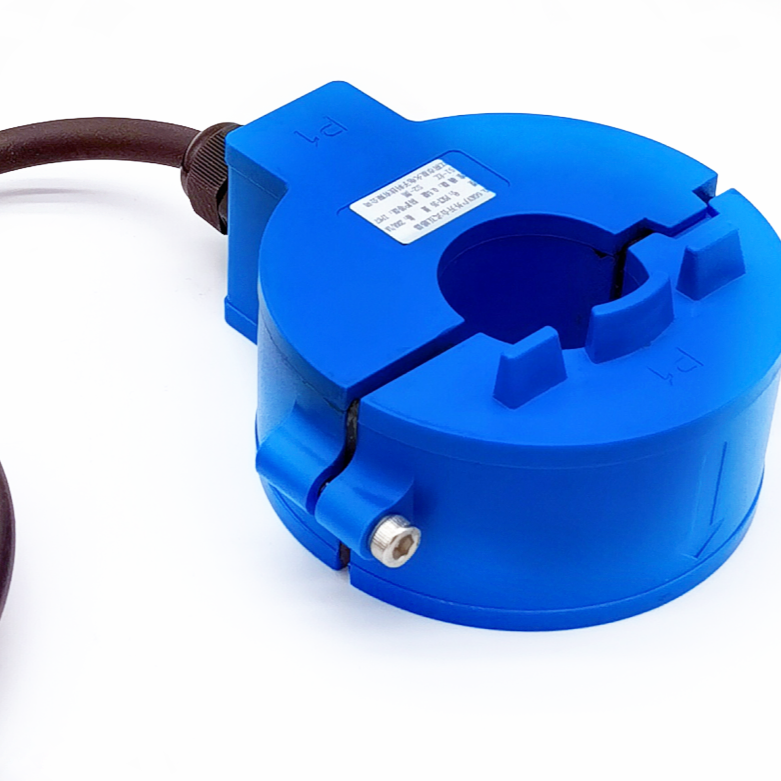

Outdoor waterproof split core current transformer
- Inner Diameter:36mm
- Feature & Application:For cable line measuring below 600A
-
Primary Current: 0~600A
-
Accurately Class: 0.5%, 1%
-
Split core type
-
output 5A/1A
-
IP67 level
|
Model |
WSCT-36 |
|
Standards |
GB 20840 (IEC 61869), GB4208 |
|
Equipment maximum voltage |
1v |
|
IP rating |
IP67 |
|
Rated current |
100-800 Arms |
|
Max current |
800 Arms |
|
Turns |
100-3000T |
|
Accuracy class |
0.5, 1.0 |
|
Rated output |
5A |
|
Wire lead |
2.5mm2 wire |
|
Insulation strength |
3KVVAC/min |
|
Insulation impedance |
DC500V/100M Ω |
|
Rated frequency |
50-400HZ |
|
Working temperature |
— 25 ℃ ~50 ℃ |
|
Storage temperature |
— 30 ℃ ~90 ℃ |
outdoor split core current transformers
