Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
BORT
-
Model Number:
-
2468
-
Product name:
-

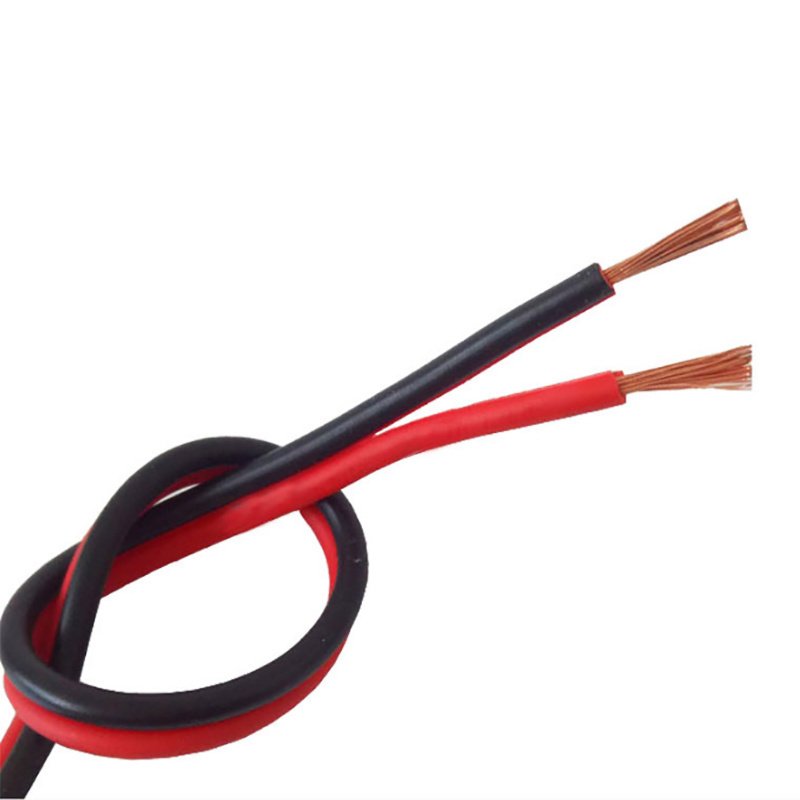

UL2468 Copper wire 2 core multi core flexible flat twin cable
-
Conductor:
-
Stranded, Tinned or Bare Copper Conductor Sample
-
Sample:
-
Conventional sample free
-
Producing Experience:
-
10 Years
-
No. of Cores:
-
One Core or Multi-Cores
-
Colors:
-
Could be customized color
-
Delivery time:
-
in 7-10days
-
Packing:
-
100m/Roll, 305m/Roll, Wrap Plastic Film Packaging
-
Company Type:
-
Manufacturer
-
Service:
-
OEM, ODM
Quick Details
-
Application:
-
For general purpose internal wiring of appliance
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
BORT
-
Model Number:
-
2468
-
Product name:
-
UL2468 Copper wire 2 core multi core flexible flat twin cable
-
Conductor:
-
Stranded, Tinned or Bare Copper Conductor Sample
-
Sample:
-
Conventional sample free
-
Producing Experience:
-
10 Years
-
No. of Cores:
-
One Core or Multi-Cores
-
Colors:
-
Could be customized color
-
Delivery time:
-
in 7-10days
-
Packing:
-
100m/Roll, 305m/Roll, Wrap Plastic Film Packaging
-
Company Type:
-
Manufacturer
-
Service:
-
OEM, ODM
Product Description
♦ Rated temperature: 80℃
♦
Rated voltage: 300V
♦
According to: UL Subject758,UL1581,C22.2
♦
Solid or stranded,tinned or bare copper conductor
32--16AWG
♦
PVC insulation
♦
Passes UL VW-1 FT1 vertical flame test
♦
Uniform insulation thickness of wire to ensure
easy stripping and cutting
♦
For general purpose internal wiring of appliance
| Conductor | Finished Products | Maximum Resistance at 20ºC | |||
| AWG/NO.OFCOND | Cond No. | Insulation Avg. Thick. | Outside Dia. | Packing | |
| /mm | mm | mm | m/r | Ω/mm | |
| 30×2C | 7/0.1 | 0.45 | 1.20×2.50 | 610 | 354.33 |
| 28×2C | 7/0.127 | 0.45 | 1.30×2.70 | 610 | 223.75 |
| 26×2C | 7/0.16 | 0.45 | 1.40×2.90 | 610 | 139.76 |
| 24×2C | 11/0.16 | 0.45 | 1.50×3.10 | 610 | 88.36 |
| 22×2C | 17/0.16 | 0.45 | 1.70×3.50 | 610 | 60.16 |
| 20×2C | 21/0.178 | 0.45 | 1.90×3.90 | 305 | 38.58 |
| 18×2C | 34/0.178 | 0.45 | 2.10×4.30 | 305 | 22.98 |
| 16×2C | 26/0.254 | 0.45 | 2.40×4.90 | 305 | 15.06 |
