* 12% Ultra Clear Tempered Glass.
* 30% Lower Reflection
* 3.2mm thickness
* >91% Higher Transmittance
* High mechanical strength
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
25 YEARS, 25 Years Output Power Guarantee
-
Brand Name:
-
greensun
-
Model Number:
-
gsm-410
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1950*990mm
-
Name:
-

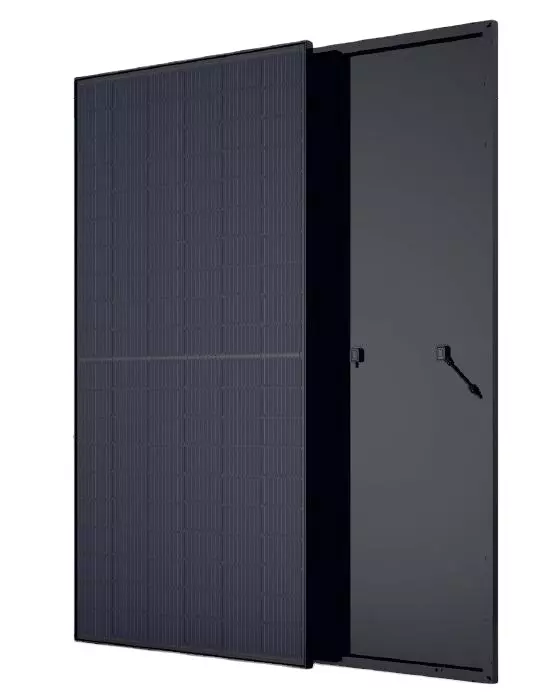

Full Black Solar Panel
-
Material:
-
Monocrystalline silicon
-
Solar cell:
-
Mono 182*182 Cell
-
Frame:
-
Anodized Aluminium Alloy
-
Frame Color:
-
Black
-
Junction Box:
-
IP67 Rated Waterproof
-
OEM:
-
Acceptable
-
Application:
-
Solar System Solar Street Light
-
Certificate:
-
CE TUV IEC ISO
Quick Details
-
Cell size:
-
158.75mmx158.75mm
-
Type:
-
PERC, Half Cell, Bifacial, HJT, N-TYPE, TOPCON
-
Panel Efficiency:
-
20%
-
Warranty:
-
25 YEARS, 25 Years Output Power Guarantee
-
Brand Name:
-
greensun
-
Model Number:
-
gsm-410
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1950*990mm
-
Name:
-
Full Black Solar Panel
-
Material:
-
Monocrystalline silicon
-
Solar cell:
-
Mono 182*182 Cell
-
Frame:
-
Anodized Aluminium Alloy
-
Frame Color:
-
Black
-
Junction Box:
-
IP67 Rated Waterproof
-
OEM:
-
Acceptable
-
Application:
-
Solar System Solar Street Light
-
Certificate:
-
CE TUV IEC ISO
Product Description
|
Electrical Parameters
|
|
|
|
|
|
|||||
|
Module
|
GSM440-460/72HC
|
|
|
|
|
|||||
|
Encapsulation
|
Class/Eva/Cell/Eva/Backsheet
|
|
|
|
|
|||||
|
Maximum Power Pmax (W)
|
440
|
445
|
450
|
455
|
460
|
|||||
|
Maximum Power Voltage (Vmp/V)
|
40.5
|
40.8
|
41
|
41.3
|
41.6
|
|||||
|
Maximum Power Current (Imp/A)
|
10.86
|
10.92
|
10.98
|
11.04
|
11.1
|
|||||
|
Open Circuit Voltage (Voc/V)
|
49
|
49.2
|
49.5
|
49.8
|
50.1
|
|||||
|
Short Circuit Current (Isc/A)
|
11.3
|
11.36
|
11.42
|
11.48
|
11.54
|
|||||
|
Cell Efficiency(%)
|
22.18
|
22.43
|
22.68
|
22.93
|
23.19
|
|||||
|
Module Efficiency (%)
|
20.24
|
20.47
|
20.7
|
20.93
|
21.16
|
|||||
|
Power Tolerance (W)
|
0 ~ +5W
|
|
|
|
|
|||||
|
Temperature Coefficient of Isc (αIsc)
|
0.06%/℃
|
|
|
|
|
|||||
|
Temperature Coefficient of Voc (βVoc)
|
0.30%/℃
|
|
|
|
|
|||||
|
Temperature Coefficient of Pmax (γPmp)
|
0.38%/℃
|
|
|
|
|
|||||
|
STC
|
Irradiance 1000W/㎡, Cell Temperature 25℃ , Air Mass 1.5
|
|
|
|
|
|||||
Grade A Materials
Tempered Glass
EVA
* >91% Higher Transmittance EVA,
* Higher GEL Content To Provide Good Encapsulation And
Protect Cells From Vibration With Longer Durability
Solar Cells
* A Grade Trina Solar Cells
* 93 Fingers PV Cells, Anti-Pid
* Appearance Consistency
Black Frame&Black Backsheet
* Aluminum Alloy Frame
* 120N Tensile Strength Frame
* 110% Seal-lip Design Glue Injection
* Black Color
Solar Juction Box
* IP67 Waterproof, Closed
* 4mm2, 6mm2 Wire Size Range
* -40 ℃ to +85 ℃ Temperature Range
* Innovative full-glue-filled junction box
Outstanding sealabilityPV Connector
* 4mm2 Qualified cable with
PV Connector
* 500N Tensile Strength
Factory
Packing & Transport
5 or 7 layers Corrugated Cartons, reinforced wooden box with pallet.
Customized Wooden Box is Optional.
All-round protection your products during transportation.
Make sure all solar panels safety.
|
Container(
60Cells
solar panel)
|
20'GP
|
40'GP
|
40'HC
|
|
PCS/Pallet
|
30
|
30
|
30
|
|
PCS/Container
|
400
|
840
|
924
|
|
Container(
72Cells
solar panel)
|
20'GP
|
40'GP
|
40'HC
|
|
PCS/Pallet
|
27
|
27
|
27
|
|
PCS/Container
|
270
|
648
|
696
|
Transport:
Accodring to your products quantity and requirement, we will choose Security and Economical transportation for you.
Including Sea transportation, Air transportation, Land transportation and Express.
Payment & Warranty
Payment:
You can choose a convenient payment term according to your local condition, and we accept Telegraphic Transfer, Western Union, L/C at sight, and on-line payment.
If you are worry about your money safety, we recommend Alibaba Trade Assurance Payment, which can protect your money until you receive your products.
More info please click the below picture:
Solar Panels Warranty:
Damage in transit (CNF Terms), we will make up for you free without any reason.
Project
3.6KW All Black Solar Energy System in Sweeden
5KW All Black Solar Power System in USA
55KW All Black Solar Panel System in CA, America
