Quick Details
-
Ejector Force(kN):
-
350 kN
-
Theoretical Shot Volume(cm³):
-
96 cm³
-
Injection Rate (g/s):
-
45 g/s
-
Injection Weight (g):
-
110 g
-
Screw Speed (rpm):
-
1 - 150 rpm
-
Screw diameter (mm):
-
32 mm
-
Screw L/D Ratio:
-
20
-
Distance between Tie Bars:
-
600*320mm
-
Weight (KG):
-
1100 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
330 mm
-
Model Number:
-
DLB-350-P
-
Brand Name:
-
Plastar
-
Power (kW):
-
5.6 kW
-
Product name:
-
Vertical machine
-
Machine type:
-
Vertical
-
Keyword:
-
Injection Machine
-
Marketing Type:
-
New Product 2022
-
Function:
-
Platic Injection Molding Machinery
-
Application:
-
Rubber Phone Case
-
Used for:
-
Plasic Products
-
After-sales Service Provided:
-
Video Technical Support
-
Structure:
-
Compact Unit
Quick Details
-
Mold Height(mm):
-
145 - 360 mm
-
Ejector Number:
-
16
-
Ejector Stroke(mm):
-
215 mm
-
Ejector Force(kN):
-
350 kN
-
Theoretical Shot Volume(cm³):
-
96 cm³
-
Injection Rate (g/s):
-
45 g/s
-
Injection Weight (g):
-
110 g
-
Screw Speed (rpm):
-
1 - 150 rpm
-
Screw diameter (mm):
-
32 mm
-
Screw L/D Ratio:
-
20
-
Distance between Tie Bars:
-
600*320mm
-
Weight (KG):
-
1100 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
330 mm
-
Model Number:
-
DLB-350-P
-
Brand Name:
-
Plastar
-
Power (kW):
-
5.6 kW
-
Product name:
-
Vertical machine
-
Machine type:
-
Vertical
-
Keyword:
-
Injection Machine
-
Marketing Type:
-
New Product 2022
-
Function:
-
Platic Injection Molding Machinery
-
Application:
-
Rubber Phone Case
-
Used for:
-
Plasic Products
-
After-sales Service Provided:
-
Video Technical Support
-
Structure:
-
Compact Unit

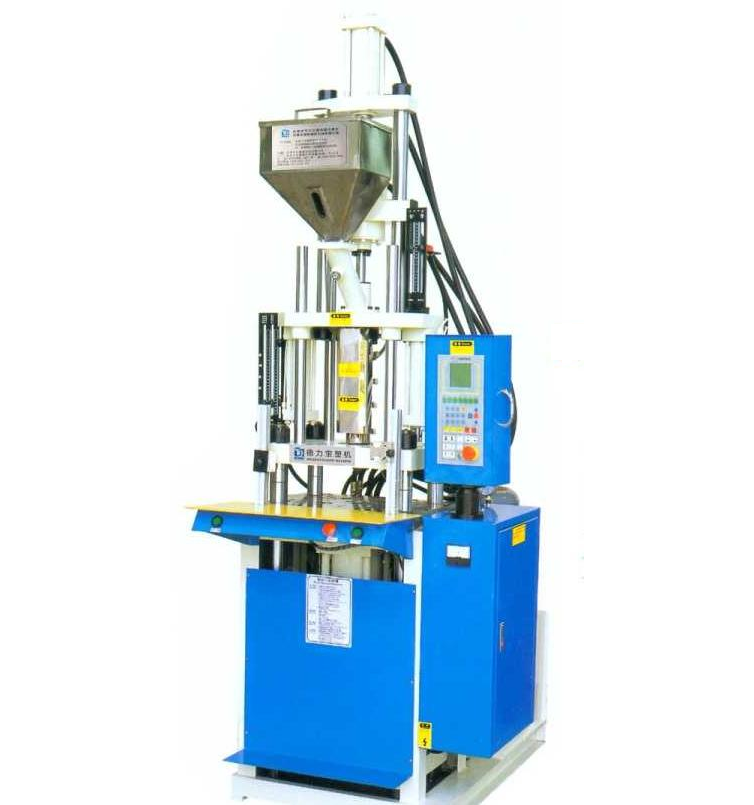

Injection Molding Machine
DLB-350-P
Professional Injection Molding Machine Supplier,
Service The Global Factories More Than 5000+
Service The Global Factories More Than 5000+
VIP Services
We Will Help You Choose The Most Suitable Machinery
To Win Business Opportunities
Contact us
To Win Business Opportunities
Contact us
1.Professional Engineers On-site Diagnosis
2.countries:Peru, Colombia, Ecuador
2.countries:Peru, Colombia, Ecuador
3.
Welcome To Visit Our Factory o make an Appointment
4.
Invitation Letter
5.Member Gift
6.0n-site preferential price
5.Member Gift
6.0n-site preferential price
7.
Contact UsTo Get The Latest Industry Information And Technical vices
Main Specifications
1. Vertical mold closing and vertical injection, suitable for all insert molding.
2. The stepless adjustment of temperature control, firing rate, pressure and screw speed is suitable for the molding of various precision plastic parts.
3. The lower mold is fixed and the upper mold is movable, which has good positioning for the inserted items, and has a finished product ejection device .
4. Low pressure mold closing device protects mold safety.
5. The material tube can be lifted and lowered, the cleaning head is convenient, and it is easier to fix the mold.
6 Unique oil circuit design increases molding efficiency by more than 30%.
|
Model
|
|
Unit
|
DLB-350-P
|
|
||
|
|
Screw Diameter
|
mm
|
28
|
32
|
||
|
|
Max. Injection Pressure
|
kgf/cm3
|
1785
|
1367
|
||
|
|
Theoretical Shot Volumn
|
cm3
|
74
|
96
|
||
|
|
Max.Shot Weight (PS)
|
g/oz
|
85/3.0
|
110/3.9
|
||
|
|
Screw Speed
|
cm3/sec
|
50
|
58
|
||
|
|
Screw Speed
|
r/min
|
0-150
|
|
||
|
|
Screw Stroke
|
mm
|
120
|
|
||
|
|
Nozzle Retraction Stroke
|
mm
|
150
|
|
||
|
|
NOzzle Contact Force
|
tf
|
2.4
|
|
||
|
|
Clamping Force
|
tf
|
35
|
|
||
|
|
Clamping Stroke
|
mm
|
215
|
|
||
|
|
Max.Mould Space
|
mm
|
360
|
|
||
|
|
Min Mould height
|
mm
|
145
|
|
||
|
|
Over size of platen (HXV)
|
mm
|
600x320
|
|
||
|
|
Space Between Tie-Bar (HXV)
|
mm
|
450x190
|
|
||
|
|
Hydraulic Ejector Force
|
tf
|
0.7
|
|
||
|
|
Ejector Stroke
|
mm
|
28
|
|
||
|
|
Drive Motor
|
kw
|
5.6(7.5HP)
|
|
||
|
Electrical & Other
|
Heating
|
kw
|
3.3
|
|
||
|
|
Machine Dimension
|
m
|
1.4x1.1x3.2
|
|
||
|
|
Machine Weight
|
kg
|
1.1
|
|
||
|
|
Packing Dimension
|
m
|
1.55x1.1x2.25
|
|
||
|
|
Packing Weight
|
kg
|
1.3
|
|
||
|
|
Oil Tank Capacity
|
l
|
160
|
|
||
|
|
Cooling Water Consumption
|
l/h
|
600〜800
|
|
||
Components Brand
We use international famous brand component to control the better quality and some components also accept
customermation.
|
Device
|
Item
|
Brand
|
Comments
|
|
|
PLC
|
Porcheson/Huilong
|
Optional
|
|
|
Applicance
|
Schneider
|
|
|
|
Botton
|
Fuji
|
|
|
|
Snesor
|
Yangming Taiwan
|
|
|
Hydraulic
|
Hydraulic Valve
|
Xuxin/Hehui
|
|
|
|
PQ Valve
|
Hyteck
|
|
|
|
Hydraulic Motor
|
Zhongyi/Dali
|
|
|
|
Oil Pump
|
Yongling
|
|
|
|
Seal
|
Nok Japan /Hallite Gemany
|
|
|
|
Oil Tubing
|
Yuken
|
|
|
|
Screw
|
Jinyi
|
|
|
|
Motor
|
Dongguan Dianji
|
|
|
|
Heating Band
|
Heyu
|
|
|
|
Bearing
|
NSK Japan
|
|
|
|
Machine Column
|
Jiangjun
|
|
|
|
Mold Platen
|
45# steel by CNC
|
|
Compatible
A variety of mold
Packing & Delivery
Wooden box wih fumigation
