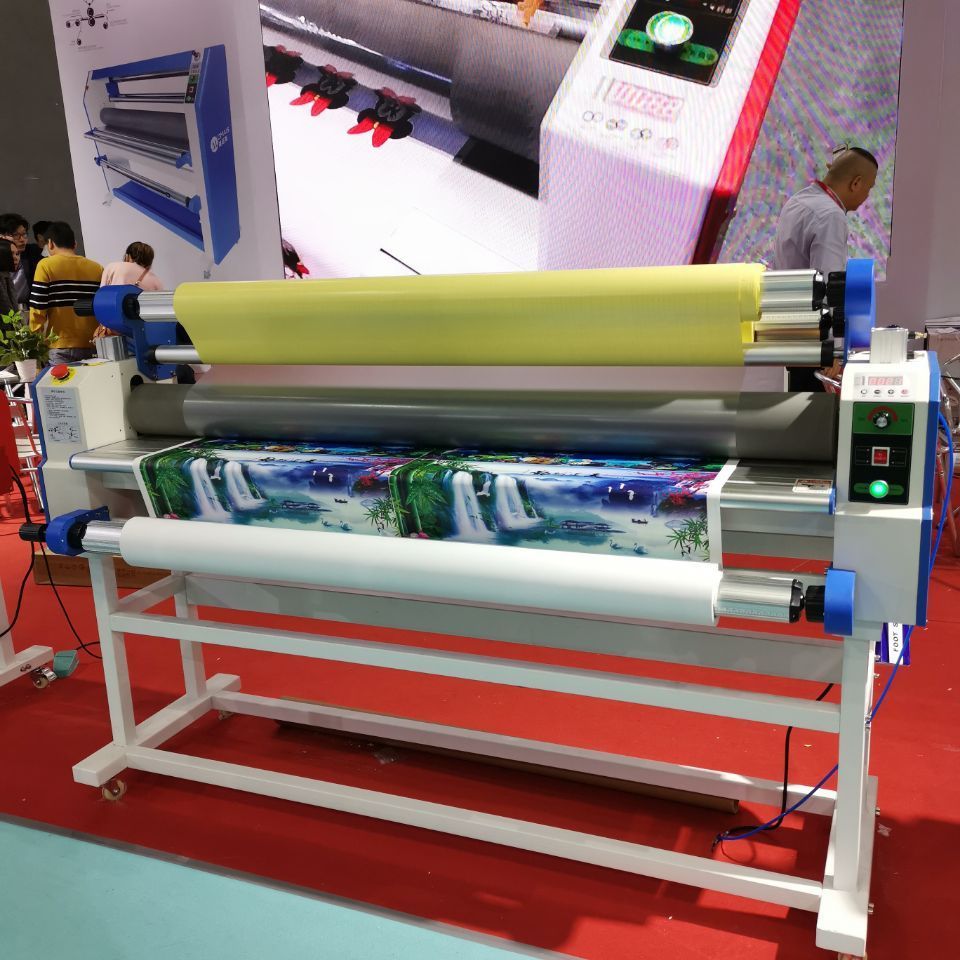

Large Format Laminator Machinery Heavy Duty Roll to Roll Lamination Machine
Large Format Laminator Machinery Heavy Duty Roll to Roll Lamination Machine
Large Format Laminator Machinery Heavy Duty Roll to Roll Lamination Machine
Large Format Laminator Machinery Heavy Duty Roll to Roll Lamination Machine
Large Format Laminator Machinery Heavy Duty Roll to Roll Lamination Machine
Large Format Laminator Machinery Heavy Duty Roll to Roll Lamination Machine
Large Format Laminator Machinery Heavy Duty Roll to Roll Lamination Machine
Large Format Laminator Machinery Heavy Duty Roll to Roll Lamination Machine

Large Format Laminator Machinery Heavy Duty Roll to Roll Lamination Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $1300
≥100 Sets
US $650
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
220V/110V
Place of Origin:
Guangdong, China
Brand Name:
DMAIS
Weight:
200 KG
Max laminating width:
1520mm
Max laminating thickness:
28mm
Laminating Speed:
0-8m/min
Working temperature:
Indoor Temperature - 60 Degree
Warm-up time:
0-10min
Pressure adjustment:
Pneumatic
Roller diameter:
130mm
Gross Weight:
200KG
Packing Size:
198X63X68cm
After Warranty Service:
Online support

Quick Details

Packaging Type:
Cartons
Packaging Material:
Wood
Driven Type:
Electric
Voltage:
220V/110V
Place of Origin:
Guangdong, China
Brand Name:
DMAIS
Weight:
200 KG
Max laminating width:
1520mm
Max laminating thickness:
28mm
Laminating Speed:
0-8m/min
Working temperature:
Indoor Temperature - 60 Degree
Warm-up time:
0-10min
Pressure adjustment:
Pneumatic
Roller diameter:
130mm
Gross Weight:
200KG
Packing Size:
198X63X68cm
After Warranty Service:
Online support
Specification
Nominal Voltage
110V/220V
Motor
90W
Heating Power
1500W
Laminating Width
≤1520mm
Laminating Speed
0-8m/min
Laminating Thickness
≤28mm
Roller Diameter
130mm
Roller Material
Silicon roller
Working Temperature
Room Temp-60℃
Pressure Adjustment
Pneumatic
Packing Size(mm)
2000*630*680
Net Weight/Gross Weight
170KG/200KG
Product Features
1. Independently R&D silicon roller with better flexibility & longer life.
2. Pneumatically up and down roller.
3. Two laminating ways: auto/foot control.
4. With reversing function.
5. Only need one person to operate.
6. Heating to 60ºC to avoid bubble thoroughly.
7. Uncovering backing paper and finishing products automatically.
8. High efficiency and high yield of laminating, whole film of 50m don't bevel.

Detail Images





Speed Can be adjustable




Anti-stick silicone roller with good elasticity, and it's easy to be cleaned.






Three cutters with tungsten steel blade are installed for each machine, durable and convenient to cut the useless paper side automatically.
Product Structure
Related Products
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, packing with standard exporting plywood case, stable and easy to be disassembled.
FAQ
1. Q: Are you the manufacturer or trading company?
A: We are the manufacturer specializing in laminator, and we independently R&D the silicone rollers. Therefore, we can provide the most competitive price for you.

2. Q: How long is the warranty of the laminator?
A: The machine have free 12 months warranty from the date of arrival of goods (Except for consumables), the seller give the damage part(non-human damage) for free, but the buyer need pay the freight fee. And if buyer need seller company arrange technician to buyer side, the buyer need bear the fee, include the back and forth flight, accommodation.

3. Q: I am the dealer, can I OEM the machine if I purchase your machines?
A: Yes, we can OEM for you, but the quantity you order must be large enough for us to customize them.

4. Q: When can I get the quotation?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent, please call/email us so we will deal your inquiry priority.

5. Q: How long is the delivery time?
A: We generally arrange production after receiving the deposit, it takes 7-15 days to finish the products and make shipment after receiving the balance.
