- Product Details
- {{item.text}}
Quick Details
-
Product name:
-

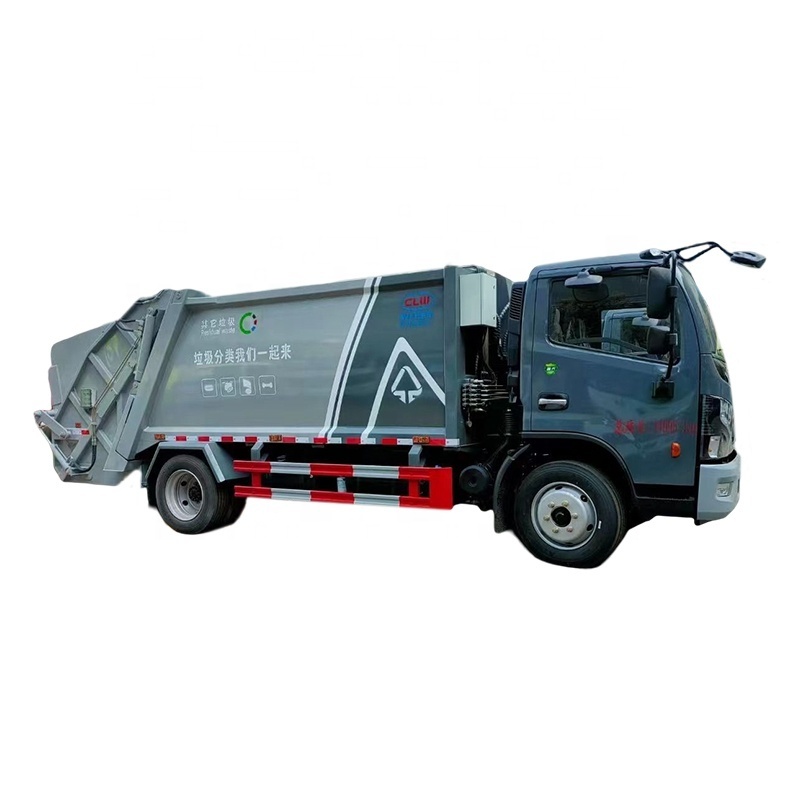

garbage compress Truck
-
Truck Chassis:
-
4x2
-
Light compactor body:
-
12m3
-
Overall dimension:
-
8680*2490*3030mm
-
Wheelbase:
-
4500mm
-
Axle(front/rear):
-
6.3T/11T
-
Engine:
-
CUMMINS B210 33
-
Transmission:
-
Manual gear box
-
Color:
-
Customer Requirements
-
Tires:
-
10.00R20
Quick Details
-
Size:
-
8680*2490*3030mm
-
Place of Origin:
-
China
-
Weight (KG):
-
12000 kg
-
Product name:
-
garbage compress Truck
-
Truck Chassis:
-
4x2
-
Light compactor body:
-
12m3
-
Overall dimension:
-
8680*2490*3030mm
-
Wheelbase:
-
4500mm
-
Axle(front/rear):
-
6.3T/11T
-
Engine:
-
CUMMINS B210 33
-
Transmission:
-
Manual gear box
-
Color:
-
Customer Requirements
-
Tires:
-
10.00R20
Products Description
Model :
DFT5168TZY3
Truck Chassis Brand :Dongfeng or can be optional
Garbage box volume: 8-12 ton
Engine : Cummins 210 HP
Overall dimension : 8680×2490×3030 mm
Engine : Cummins 210 HP
Emission Standard : EURO III
Transmission:
Manual gear box, 6 forward + 1 reverse
Overall dimension : 8680×2490×3030 mm
Details Images
Product Paramenters
|
General Description
|
|
|
|
Truck Chassis:
|
4x2
|
|
|
Light compactor body:
|
12m3
|
|
|
Driver position:
|
Right hand drive
|
|
|
Technical Specifications
|
|
|
|
Overall dimension
|
8680×2490×3030mm
|
|
|
Wheelbase
|
4500mm
|
|
|
Chassis & body weight
|
- Gross vehicle weight (GVW) ：16 tons
- Drive system 4x2 - Standard rigid chassis |
|
|
Axle(front/rear)
|
- 6.3T/11T
|
|
|
Wheel base
|
- wheel base ：4500mm
- Turning radius ：8.3 mm |
|
|
Suspension
|
- Leaf springs in the front and rear+ front Hydraulic shock absorber
|
|
|
Engine
|
- DONGFENG CUMMINS ENGINE CO.,LTD
- CUMMINS B210 33 - Intercooled diesel engine gross power output 155kW (210HP) - Fuel injection - Cooling system suitable for hot countries - Emission: Euro III emission level |
|
|
Fuel tank
|
- Main tank minimum capacity 280 litres
- Filler cap locking with key |
|
|
Transmission
|
- Manual gear box, 6 forward + 1 reverse
|
|
|
Braking
|
- Air Pressure, drum brakes
- ABS |
|
