Quick Details
-
Brand Name:
-
kexlimice
-
Theory:
-
Piezoelectric ceramic sensor
-
Output:
-
PNP Normally open/closed Ultrasonic switch sensor
-
Description:
-
Ultrasonic sensor
-
Product name:
-
PNP Normally open/closed Ultrasonic switch sensor UB1000-18GM75-E6-V15
-
Adjustment range:
-
90 ... 1000 mm
-
Dead band:
-
0 ... 70 mm
-
Standard target plate:
-
100 mm x 100 mm
-
Transducer frequency:
-
About 255kHz
-
Response delay:
-
About 125ms
-
voltage:
-
10...30VDC
-
Ambient temperature:
-
-25 ... 70 °C
-
Storage temperature:
-
-40 ... 85 °C
-
Degree of protection:
-
IP67
Quick Details
-
Use:
-
Liquid level detection, object detection
-
Model Number:
-
UB1000-18GM75-E6-V15
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
kexlimice
-
Theory:
-
Piezoelectric ceramic sensor
-
Output:
-
PNP Normally open/closed Ultrasonic switch sensor
-
Description:
-
Ultrasonic sensor
-
Product name:
-
PNP Normally open/closed Ultrasonic switch sensor UB1000-18GM75-E6-V15
-
Adjustment range:
-
90 ... 1000 mm
-
Dead band:
-
0 ... 70 mm
-
Standard target plate:
-
100 mm x 100 mm
-
Transducer frequency:
-
About 255kHz
-
Response delay:
-
About 125ms
-
voltage:
-
10...30VDC
-
Ambient temperature:
-
-25 ... 70 °C
-
Storage temperature:
-
-40 ... 85 °C
-
Degree of protection:
-
IP67

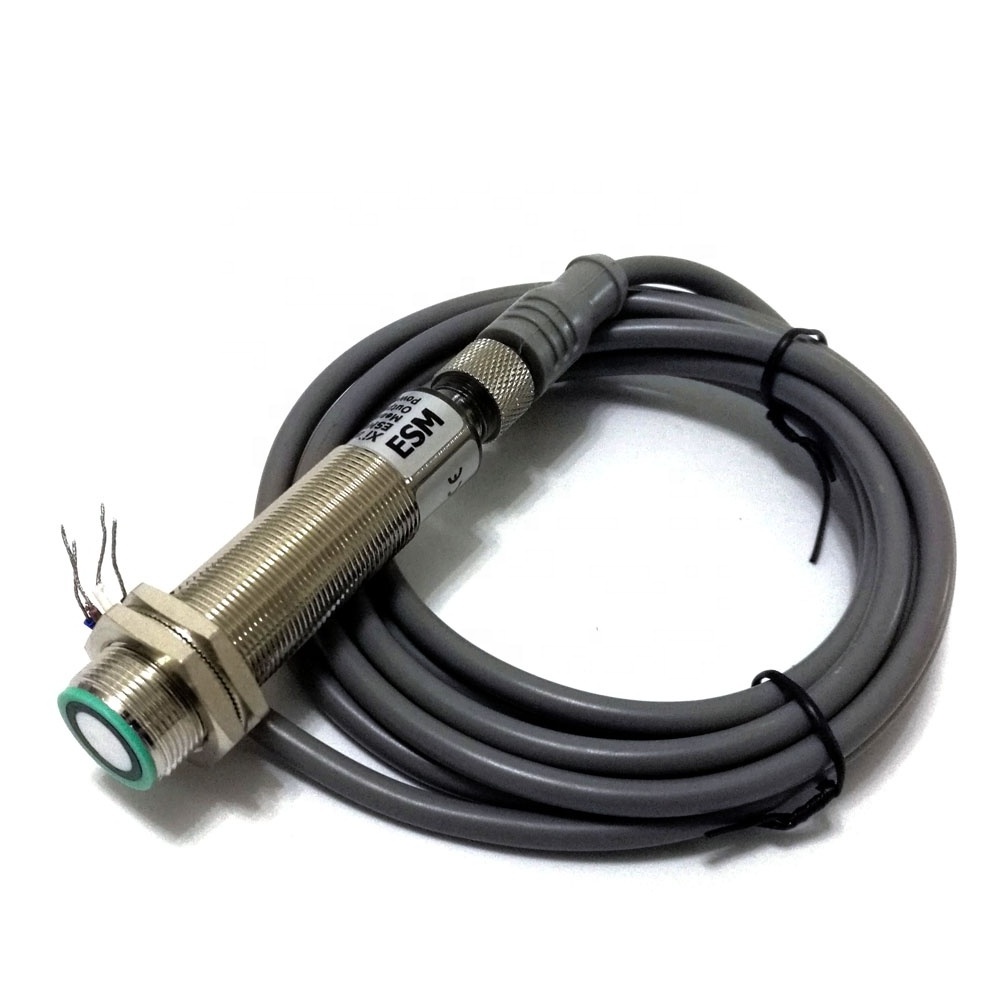

ESMUS06 PNP Normally open/closed Ultrasonic switch sensor UB1000-18GM75-E6-V15
Characteristics
2 switch outputs
3 different output functions can be set
Selectable sound lobe width
Program input
Temperature compensation
Very small unusable area
|
General specifications |
||
|
Sensing range |
70 ... 1000 mm |
|
|
Adjustment range |
90 ... 1000 mm |
|
|
Dead band |
0 ... 70 mm |
|
|
Standard target plate |
100 mm x 100 mm |
|
|
Transducer frequency |
approx. 255 kHz |
|
|
Response delay |
approx. 125 ms |
|
|
Indicators/operating means |
||
|
LED yellow |
indication of the switching state
|
|
|
LED red |
"Error", object uncertain
|
|
|
Electrical specifications |
||
|
Operating voltage |
10 ... 30 V DC , ripple 10 %SS |
|
|
No-load supply current |
≤ 50 mA |
|
|
Input |
||
|
Input type |
1 program input,
|
|
|
Output |
||
|
Output type |
2 switch outputs PNP, NO/NC, programmable |
|
|
Rated operating current |
2 x 100 mA , short-circuit/overload protected |
|
|
Voltage drop |
≤ 3 V |
|
|
Repeat accuracy |
≤ 1 % |
|
|
Switching frequency |
max. 3 Hz |
|
|
Range hysteresis |
1 % of the set operating distance |
|
|
Temperature influence |
± 1.5 % of full-scale value |
|
|
Compliance with standards and directives |
||
|
Standard conformity |
|
|
|
|
Standards |
EN 60947-5-2:2007+A1:2012
|
|
Approvals and certificates |
||
|
UL approval |
cULus Listed, General Purpose |
|
|
CSA approval |
cCSAus Listed, General Purpose |
|
|
CCC approval |
CCC approval / marking not required for products rated ≤36 V |
|
|
Ambient conditions |
||
|
Ambient temperature |
-25 ... 70 °C (-13 ... 158 °F) |
|
|
Storage temperature |
-40 ... 85 °C (-40 ... 185 °F) |
|
|
Mechanical specifications |
||
|
Connection type |
Connector plug M12 x 1 , 5-pin |
|
|
Degree of protection |
IP67 |
|
|
Material |
|
|
|
|
Housing |
brass, nickel-plated |
|
|
Transducer |
epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT |
|
Mass |
60 g |
|
|
Factory settings |
||
|
Output 1 |
Switching point: 90 mm
|
|
|
Output 2 |
Switching point: 1000 mm
|
|
|
Beam width |
wide |
|
