Quick Details
-
Brand Name:
-
DEWO
-
Model Number:
-
SS5-11N1-050
-
Max. Current:
-
5A
-
Operating Temperature:
-
25T125
-
Protection Level:
-
IP40
-
Item:
-
KW3-0z green interruptor 10t125 230v micro switch
-
Model NO.:
-
SS5-11N1-050
-
Rating:
-
5A 125/250V
-
Electrical Life:
-
50,000 cycles
-
Mechanical Life:
-
1,000,000 cycles
-
Autuator:
-
11 lever
-
Terminal Type:
-
solder terminal
-
Operating Force:
-
0.5~2.5N or as your requirement
-
Circuit:
-
SPDT
-
Certification:
-
UL, CUL, ENEC
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DEWO
-
Model Number:
-
SS5-11N1-050
-
Max. Current:
-
5A
-
Operating Temperature:
-
25T125
-
Protection Level:
-
IP40
-
Item:
-
KW3-0z green interruptor 10t125 230v micro switch
-
Model NO.:
-
SS5-11N1-050
-
Rating:
-
5A 125/250V
-
Electrical Life:
-
50,000 cycles
-
Mechanical Life:
-
1,000,000 cycles
-
Autuator:
-
11 lever
-
Terminal Type:
-
solder terminal
-
Operating Force:
-
0.5~2.5N or as your requirement
-
Circuit:
-
SPDT
-
Certification:
-
UL, CUL, ENEC

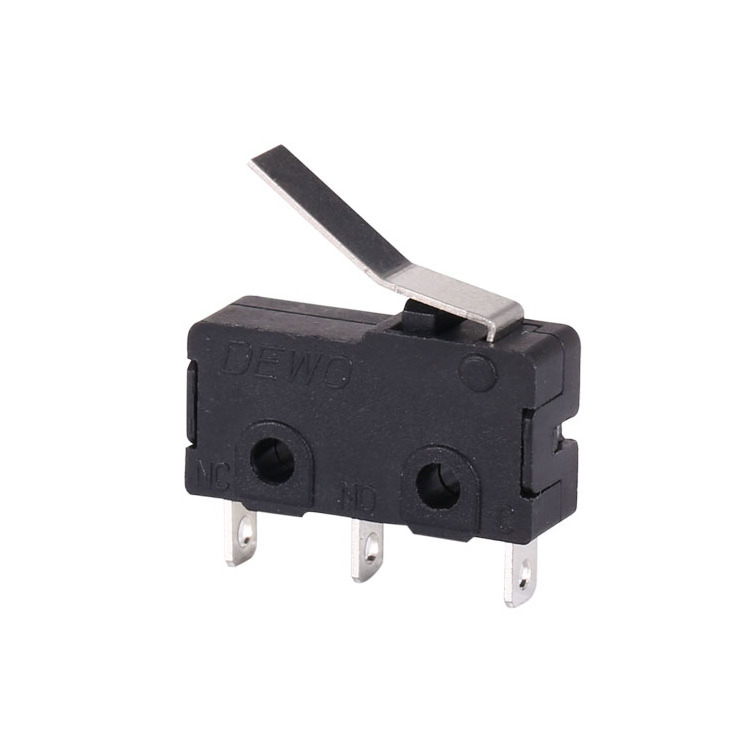

DEWO 5A Tipos-de-microswitch High Sensitivity Snap Action Microswitch Replace for Cherry Micro Switches
Features :
(1) Various levers and terminal types are available for choice.
(2) Compact design, assemble easily.
(3) Fast action, long life, which could decline cost.
(4) Quality is reliable, has got UL, CUL, ENEC15, SGS, CQC, CE, CB, KC certificates.
(5) Strict inspection: automated machine and human double full-inspection.
(6) Widely used in home appliances, electronic devices, automobile industry automation machines.
|
Item |
micro switch |
|
Model Number |
SS5-11N1-050 |
|
Rating |
5A 250VAC |
|
Temperature Range |
-40°C~+125°C |
|
IP Code |
IP40 |
|
Dimension |
19.8*10.6*6.4mm |
|
Material of Case & Knob |
PBT |
|
Material of Contacts |
AgNi10 |
|
Material of Terminal |
Sliver plated copper |
|
Electrical Service Life |
10,000 Cycles |
|
Mechanical Service Life |
1,000,000 Cycles |
|
Approval |
UL, CUL, ENEC15, CQC, CE, CB, KC |
