Quick Details
-
Range of Spindle Speed(r.p.m):
-
64 - 1500 r.p.m
-
Width of bed (mm):
-
182
-
Max. Turned Length (mm):
-
100 mm
-
Spindle Motor Power(kW):
-
1.1
-
Year:
-
articles made to order
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
AMCO
-
Model Number:
-
CZ1324G
-
Voltage:
-
110V/220V
-
Dimension(L*W*H):
-
1420*750*760mm
-
Weight (KG):
-
430 KG
-
Marketing Type:
-
Hot Product 2021
-
Core Components:
-
Other
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Online support
-
Certification:
-
ISO9001
Quick Details
-
Max. Length of Workpiece (mm):
-
100 mm
-
Machining Capacity:
-
Medium Duty
-
Spindle Bore(mm):
-
38
-
Range of Spindle Speed(r.p.m):
-
64 - 1500 r.p.m
-
Width of bed (mm):
-
182
-
Max. Turned Length (mm):
-
100 mm
-
Spindle Motor Power(kW):
-
1.1
-
Year:
-
articles made to order
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
AMCO
-
Model Number:
-
CZ1324G
-
Voltage:
-
110V/220V
-
Dimension(L*W*H):
-
1420*750*760mm
-
Weight (KG):
-
430 KG
-
Marketing Type:
-
Hot Product 2021
-
Core Components:
-
Other
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Online support
-
Certification:
-
ISO9001
product brief introduction:

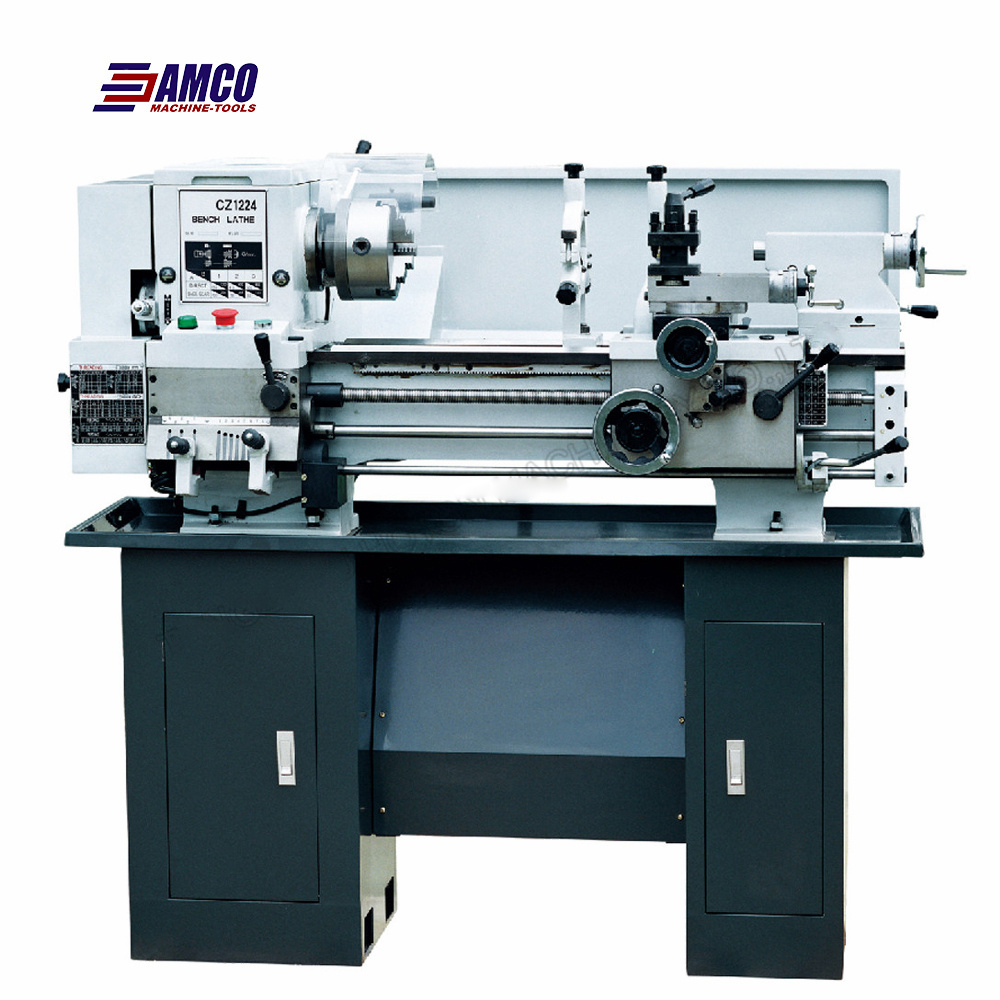

Desktop lathe is a machine tool mainly used to turn the rotating workpiece. Drills, reaming drills, reamers, taps, die and knurling tools can also be used on the lathe for corresponding processing.
performance feature:
1 . Engineered from high grade castings.
2.'V' way bedways lnduction hardend & Ground.
3.Gap bed.
4.Cross and longitudinal interlocking feed,with enough safety.
5.Inching switch for test running.
6.Metric/Imperial threading available
7.Precise gear-driven headstock.
Product Parameter:
|
ITEM |
Unit |
CZ1224G/CZ1324G |
CZ1237G-1/CZ1337G-1 |
|
Swing over bed |
mm |
φ305/φ330 |
φ305/φ330 |
|
Swing over carriage |
mm |
φ173/φ195 |
φ173/φ215 |
|
Swing over gap |
mm |
φ440/φ465 |
φ440/φ485 |
|
Width of bed-way |
mm |
182 |
182 |
|
Distance between centers |
mm |
530 |
940 |
|
Taper of spindle |
|
M.T.5 |
|
|
Spindle diameter |
mm |
φ38 |
|
|
Step of speed |
|
9 |
|
|
Range of speed |
rpm |
64~1500 |
|
|
Metric thread |
mm |
Closed box:11kinds (0. 5~3.5mm) |
|
|
Norton lever:15kinds (0.25~7.5mm) |
|||
|
Inch thread |
T.P.I |
Closed box:15kinds(7-1/2~48T.P.I) |
|
|
Norton lever:40kinds(4~112T.P.I) |
|||
|
Longitudinal feeds |
mm/r |
Closed box:0.051~0.303(0.002”~0.012”) |
|
|
Norton lever:m/r 0.12~0.42(0.0047”~0.0165) |
|||
|
Diameter of lead screw |
mm |
φ22(7/8”) |
|
|
Pitch of lead screw |
|
3mm or 8T.P.I |
|
|
Saddle travel |
mm |
510 |
810 |
|
Cross travel |
mm |
150 |
|
|
Compound travel |
mm |
85 |
|
|
Barrel travel |
mm |
95 |
|
|
Barrel diameter |
mm |
φ32 |
|
|
Taper of center |
mm |
M.T.3 |
|
|
Motor power |
Kw |
1.1(1.5HP) |
|
|
Coolant motor |
Kw |
0.04(0.055HP) |
|
|
Packing size(main machine) |
mm |
1420×750×760 |
1780×750×760 |
|
machine stand |
mm |
400×370×700 |
|
|
mm |
300×370×700 |
||
|
Main machine weight |
Kg |
380/430 |
400/450 |
|
Loading qty/20" |
|
27pcs |
24pcs |
