Quick Details
-
Brand Name:
-
Gangyuan
-
Model Number:
-
G20-16EM12-30-37
-
Max. Current:
-
16A
-
Operating Temperature:
-
-25℃~+85℃
-
Protection Level:
-
High level
-
Contact Resistance:
-
≤50mΩ
-
Insulation Resistance:
-
≥100MΩ
-
Dielectric Withstanding Voltage:
-
1500V AC 1Min
-
Soldering Temperature:
-
260±5℃ 5s
-
Operating Force:
-
15-500gf
-
Life Time:
-
10000 Cycles
-
Color:
-
Black
-
Type:
-
Micro Switch
-
Certification:
-
Rohs, Reach, CCC, CQC, KC, ISO14001, ISO9001
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
125V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Gangyuan
-
Model Number:
-
G20-16EM12-30-37
-
Max. Current:
-
16A
-
Operating Temperature:
-
-25℃~+85℃
-
Protection Level:
-
High level
-
Contact Resistance:
-
≤50mΩ
-
Insulation Resistance:
-
≥100MΩ
-
Dielectric Withstanding Voltage:
-
1500V AC 1Min
-
Soldering Temperature:
-
260±5℃ 5s
-
Operating Force:
-
15-500gf
-
Life Time:
-
10000 Cycles
-
Color:
-
Black
-
Type:
-
Micro Switch
-
Certification:
-
Rohs, Reach, CCC, CQC, KC, ISO14001, ISO9001

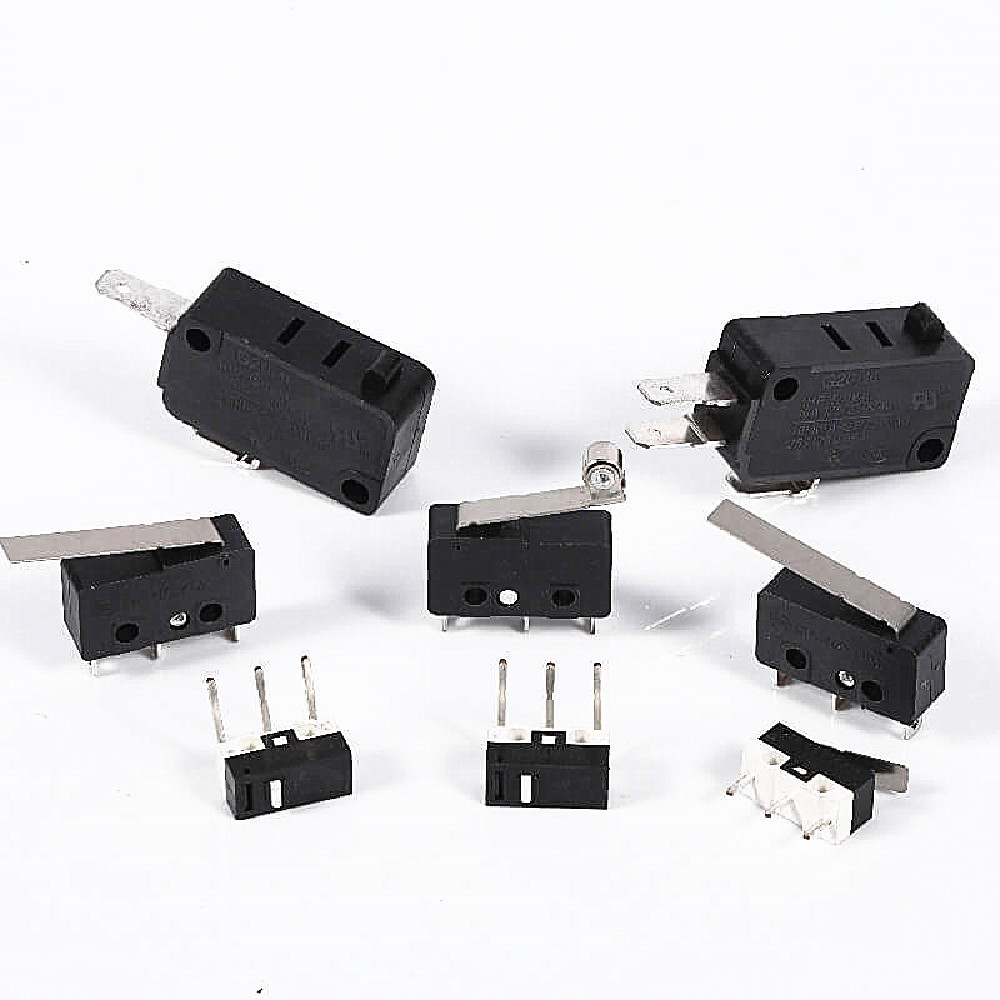

micro switch supplier hinge metal SPDT long roller lever 16a micro switch
Product Description
Operating Temperature Range
: -25℃~+125℃
Operating Relative Humidity
: ≤85%
Voltage Rating
: 125/250V AC
Current Rating
: 16A
Contact Resistance
: ≤50mΩ
Insulation Resistance
: ≥100MΩ
Dielectric Withstanding Voltage
: 1500V AC 1Min
Soldering Temperature
: 260±5℃ 5s
Operating Force
: 15-500gf
Life Time(mating cycles)
: 10000 Cycles
Application
Quality Control
- The picture on the below is the page of Gangyuan MES system, which can be traced back to all the information of each
batch of materials. Use a new type of QR code for traceability
- Product inspection process (a total of 36 inspection equipment)
- IQC incoming inspection → configuration group → IPQC inspection → equipment automatic inspection → QA warehousing random inspection
→ OQC shipment inspection
