Quick Details
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Mactron
-
Weight (KG):
-
52 KG
-
Core Components:
-
Laser source
-
Wavelength:
-
1064nm
-
Marking Depth:
-
≤2MM
-
Repetition Precision:
-
±0.01MM
-
Min. Line Width:
-
0.02MM
-
Minimum Character:
-
0.2 mm (0.008 in)
-
Beam Quality (M2):
-
Minimum Line 0.01 mm (0.0004 in)
-
Speed:
-
Up to 8000 mm/s (314.96 in/s)
-
Software:
-
MacMark / PC software EzCAD
-
Humidity:
-
10%- 90%, non-condensing
-
Operating Temperature:
-
10°C to 40°C (50F to 104F)
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Mactron
-
Weight (KG):
-
52 KG
-
Core Components:
-
Laser source
-
Wavelength:
-
1064nm
-
Marking Depth:
-
≤2MM
-
Repetition Precision:
-
±0.01MM
-
Min. Line Width:
-
0.02MM
-
Minimum Character:
-
0.2 mm (0.008 in)
-
Beam Quality (M2):
-
Minimum Line 0.01 mm (0.0004 in)
-
Speed:
-
Up to 8000 mm/s (314.96 in/s)
-
Software:
-
MacMark / PC software EzCAD
-
Humidity:
-
10%- 90%, non-condensing
-
Operating Temperature:
-
10°C to 40°C (50F to 104F)

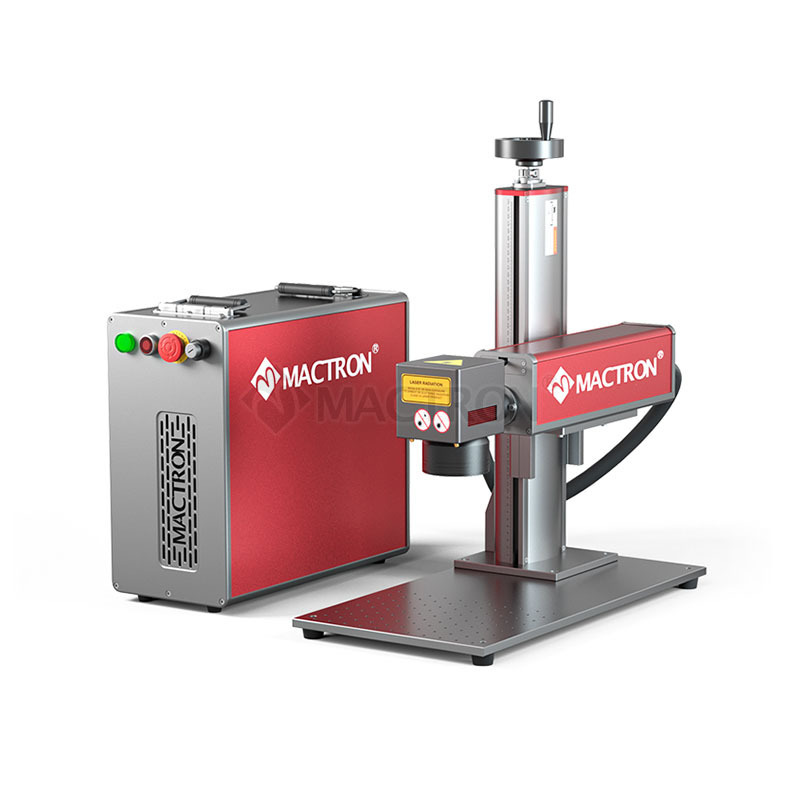

The portable split fiber laser marking machine is especially outstanding in the aspect of portability. It is endowed with the features of small volume and easily marking on the surface of big volume and heavy objects. The fiber laser marking machine adopts an advanced digital high-speed scan galvanometer and module design, which can separate the laser generator and lifter. This series has the advantages of low materials consumption, non-toxic, and pollution-free.
1. Technical Parameter Of Fiber Laser Engraving Machine
| Model | MT-FP20 | MT-FP30 | MT-FP50 |
| Laser Type | Q-Switched Pulse Fiber Laser / MOPA Pulse Fiber Laser | ||
| Wavelength (nm) | 1064 | ||
| Laser Power (W) | 20 | 30 | 50 |
| Pulse Energy (mJ) | 0.66 / 0.8 | 1 / 0.8 | 1 / 1.25 |
| Repetition Rate (kHz) | 30-60 / 1-600 or 1-4000 | 50-100 / 1-600 | |
| Pulse Duration (ns) | 120-150 / 200 or 2-350 | 120-150 / 200 | |
| Beam Quality (M2) | <1.5 / 1.4 | <1.6 / 1.5 or 1.4 | <1.6 / 1.8 |
| Output Power (%) | 10 - 100 | ||
| Marking Specifications |
Font formats: TTF, JSF, DMF, SHX fonts, etc.
Vector formats: PLT, DST, AI, DXF, SVG, GBR, NC, CAD, CDR, DWG, BOT, etc. Barcode formats: Code39, EAN, PDF417, DATAMATRIX, QR, 2D codes, etc. Bitmap formats: JPC, BMP, JPG, JPEG, PNG, etc. |
||
| Speed | Up to 8000 mm/s (314.96 in/s) | ||
| Beam Quality (M2) | Minimum Line 0.01 mm (0.0004 in) | ||
| Minimum Character | 0.2 mm (0.008 in) | ||
| Z axis type | Manual / Motorized & Programmable (optional) | ||
| Software | MacMark / PC software EzCAD (on separate, external, optional Windows OS PC) | ||
| Communication interfaces |
USB; Terminal block I/O; (standard)
Laser Safety Dedicated I/O; RS232; Ethernet TCP/IP (optional) |
||
|
Marking Area -
Available lenses |
Standard: F160: 110 mm (4.33 in) x 110 mm (4.33in)
F254: 160 mm (6.29 in) x 160 mm (6.29 in)
F450: 300 mm (11.8 in) x 300 mm (11.8 in) |
||
| Cooling | Air-cooled, auto-overheat protection | ||
| Laser safety classification | Class 4 | ||
| Operating Temperature | 10°C to 40°C (50F to 104F) | ||
| Humidity | 10%- 90%, non-condensing | ||
| Electrical Requirements | L/N/PE 100 - 240 VAC 50/60Hz ( According to local electricity supply ) | ||
| Power consumption rate | 400 W (800 W Max) | ||
2. Feature Of Portable Mini Fiber Laser Marking Machine :
(1)Low consumption, non-toxic, no pollution, high performance-price ratio.
( 2)Imported isolator for protection of the fiber laser generator to increase the stability and prolong the laser life.
( 3)Laser beam quality is much better than the traditional laser engraving machine.
(4)Free from maintenance, long working life, small size, suitable for any working environment
3. Portable Mini Fiber Laser Marking Machine Applicable Materials:
Fiber Laser Marking Machine is suitable for all metallic materials such as Gold, Silver, Stainless Steel, Brass, copper, Titanium, Aluminium, Steel, Iron, etc, and can also mark on many non-metallic materials, such as ceramics, ABS, Nylon, PES, PVC, Makrolon.
4. Portable Mini Fiber Laser Marking Machine Applicable Industry:
Widely applied in electronic components, communication equipment, the spare parts of automobiles and motorcycles, instruments and meters, aerospace, war products, hardware and machinery, sanitary equipment, medication, food and beverage, cosmetics, drugs packing, medical appliances, solar energy, handicraft and so on.
