- Product Details
- {{item.text}}
Quick Details
-
Material:
-
rubber
-
Size:
-
custom size
-
compound material:
-
meet ASTM D2000, ROSH compliance
-
Color:
-
Any pantone color available
-
Quality:
-
Can be ROSH, REACH, NSF , DVGW compliance
-
Apprearance:
-
Free of knit, void, lack of material , tool marking&any imperfed
-
Tolarance:
-
DIN ISO 3302-1 M2, RMA A2 or as per customer design
-
Others:
-
PPAP Level III or IV available
-
OEM service:
-
Acceptable
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
baoerte
-
Model Number:
-
rubber gasket
-
Material:
-
rubber
-
Size:
-
custom size
-
compound material:
-
meet ASTM D2000, ROSH compliance
-
Color:
-
Any pantone color available
-
Quality:
-
Can be ROSH, REACH, NSF , DVGW compliance
-
Apprearance:
-
Free of knit, void, lack of material , tool marking&any imperfed
-
Tolarance:
-
DIN ISO 3302-1 M2, RMA A2 or as per customer design
-
Others:
-
PPAP Level III or IV available
-
OEM service:
-
Acceptable
We are ISO factory
We have existing tools for below sizes. If they don't work for you, tell us your size.
We can OEM for you.
|
1
|
M3
|
3,3mm x 8mm x 1.5 mm
|
silicone 70 black + clear
|
|
2
|
M3
|
3,3mm x 16mm x 1.5 mm
|
silicone 70 black + clear
|
|
3
|
M4
|
4,3 mm x 9 mm x 1.5 mm
|
silicone 70 black + clear
|
|
4
|
M4
|
4,3 mm x 18 mm x 1.5 mm
|
silicone 70 black + clear
|
|
5
|
M5
|
5,3 mm x 10 mm x 2.0 mm
|
silicone 70 black + clear
|
|
6
|
M5
|
5,3 mm x 20 mm x 2.0 mm
|
silicone 70 black + clear
|
|
7
|
M6
|
6,4 mm x 13 mm x 2.0 mm
|
silicone 70 black + clear
|
|
8
|
M6
|
6,4 mm x 30 mm x 2.0 mm
|
silicone 70 black + clear
|
|
9
|
M8
|
8,4 mm x 16 mm x 2.0 mm
|
silicone 70 black + clear
|
|
10
|
M8
|
8,4 mm x 40 mm x 2.0 mm
|
silicone 70 black + clear
|
|
11
|
M10
|
10,5 mm x 20 mm x 2,5 mm
|
silicone 70 black + clear
|
|
12
|
M10
|
10,5 mm x 40 mm x 2,5 mm
|
silicone 70 black + clear
|
|
13
|
M12
|
12,5 mm x 25 mm x 2,5 mm
|
silicone 70 black + clear
|
|
14
|
M12
|
12,5 mm x 50 mm x 2,5 mm
|
silicone 70 black + clear
|
|
20
|
#2 Rubber disk A
|
8.5 mm x 15 mm x 5 mm
|
Silicone 50 Yellow
|
|
21
|
#3 Rubber disk B
|
8.5 mm x 15 mm x 3 mm
|
Silicone 70 Black
|
|
22
|
EPDM gasket
|
12,5 mm x 20 mm x1,5 mm
|
EPDM 70 Black
|
|
23
|
EPDM gasket
|
12,5mm x 20 mm x 1,5 mm
|
EPDM 70 Black
|
|
24
|
CR gasket
|
3.96 mm x 11.1 mm x 1.58 mm
|
Neoprene 45-65 Black
|
|
25
|
SCT-OR1
|
8.2 mm x 10.1 mm x 1.2 mm
|
silicone 70
|
|
26
|
CR-EX1
|
9.4 mm x 11.5 mm x 1.15 mm
|
silicone 60
|
|
27
|
CR-IN1
|
8.6 mmX12.5 mmX1.2 mm
|
silicone 60
|
|
28
|
Cutimze size
|
5 mm x 20 mm x 3 mm
|
silicone 60
|
|
29
|
Inch size 1#
|
.187x.125x.500"
|
EPDM 60 black
|
|
30
|
Inch size 2#
|
.187x .187 x .500"
|
EPDM 60 black
|
|
31
|
Inch size 3#
|
.187x .250 x .500 "
|
EPDM 60 black
|
|
32
|
Inch size 4#
|
.450x .220 x .375"
|
EPDM 75 black
|
|
33
|
Inch size 5#
|
.450x .220 x .500"
|
EPDM 75 black
|
|
34
|
Inch size 6#
|
.450x .220 x .625"
|
EPDM 75 black
|
|
35
|
Inch size 7#
|
.550 x 1.0x.125
|
FKM 70 black
|
|
36
|
AS006
|
1/16" X1/8"X1/4"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
37
|
AS010
|
1/16"X1/4"X3/8‘
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
38
|
AS012
|
1/16"X3/8"X1/2"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
39
|
AS014
|
1/16"X1/2"X5/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
40
|
AS019
|
1/16"X13/16"X15/16"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
41
|
AS024
|
1/16"X1-1/8"X1-1/4"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
42
|
AS027
|
1/16"X1-5/16"X1-7/16
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
43
|
AS028
|
1/16"X1-3/8"X1-1/2"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
44
|
AS029
|
1/16"X1-1/2"X1-5/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
45
|
AS032
|
1/16"X1-7/8"X2"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
46
|
AS111
|
3/32"X7/16"X5/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
47
|
AS118
|
3/32"X3/4"X15/16"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
48
|
AS126
|
3/32"X3/4"X15/16"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
49
|
AS128
|
3/32"X1-1/2"X1-11/16"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
50
|
AS132
|
3/32"X1-3/4"X1-15/16"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
51
|
AS133
|
3/32"X1-13/16"X2"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
52
|
AS134
|
3/32"X1-7/8"X2-1/16"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
53
|
AS135
|
3/32"X1-15/16"X2-1/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
54
|
AS136
|
3/32"X2"X2-3/16"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
55
|
AS137
|
3/32"X2-1/16"X2-1/4"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
56
|
AS138
|
3/32"X2-1/8"X2-5/16"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
57
|
AS139
|
3/32"X2-3/16"X2-3/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
58
|
AS210
|
1/8"X3/4"X1"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
59
|
AS219
|
1/8"X1-5/16"X1-9/16"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
60
|
AS220
|
1/8"X1-3/8"X1-5/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
61
|
AS221
|
1/8"X1-7/16"X1-11/16"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
62
|
AS222
|
1/8"X1-1/2"X1-3/4"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
63
|
AS225
|
1/8"X1-7/8"X2-1/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
64
|
AS227
|
1/8"X2-1/8"X2-3/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
65
|
AS229
|
1/8"X2-3/8"X2-5/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
66
|
AS230
|
1/8"X2-1/2"X2-3/4"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
67
|
AS231
|
1/8"X2-5/8"X2-7/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
68
|
AS232
|
1/8"X2-7/8"X3"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
69
|
AS234
|
1/8"X3"X3-1/4"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
70
|
AS235
|
1/8"X3-1/8"X3-3/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
71
|
AS237
|
1/8"X3-3/8"X3-5/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
72
|
AS240
|
1/8"X3-3/4"X4"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
73
|
AS246
|
1/8"X4-1/2"X4-3/4"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
74
|
AS325
|
3/16"X1-1/2"X1-7/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
75
|
AS326
|
3/16"X1-5/8"X2"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
76
|
AS336
|
3/16"X2-7/8"X3-1/4"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
77
|
AS337
|
3/16"X3"X3-3/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
|
Production information
|
|
|
Description
|

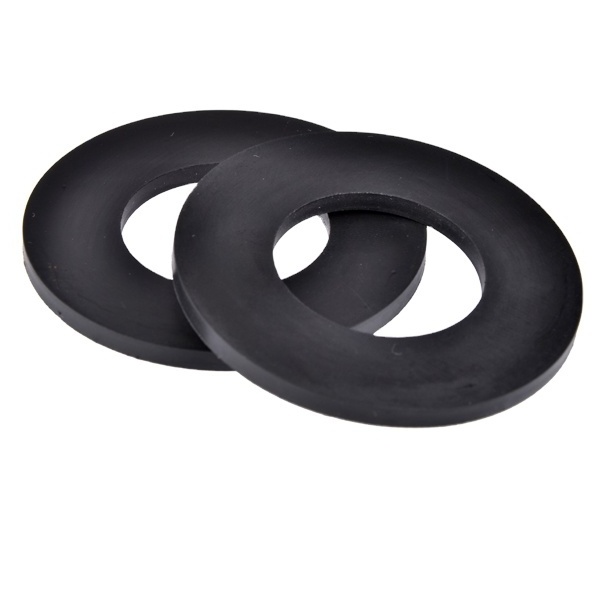

Rubber washer/ Flat rubber gasket
|
|
Material
|
EPDM, NBR, SBR, CR, FKM, PU, SILICONE, HNBR, PU, AEM, ACM, XNBR,NR, IIR, PTFE, SILICONE sponge, EPDM Sponge, PVC sponge, EVA
sponge and so on |
|
Compound material
|
Meet ASTM D2000 and can be Food grade, ROSH, REACH compliance
|
|
Hardness
|
From 20 ~ 90 shore A
|
|
Color
|
As per request
|
|
Size
|
As per customer's print or as per design
|
|
Finish
|
adhesive on one side or both side available
|
|
Package
|
PE bag, Carton
|
|
Leadtime
|
8 days for sample, 12~18 days for mass product
|
|
Advantage
|
Smooth surface with small parting line
|
|
Brand raw material used
|
|
|
NBR:
|
KUMMO, NANTEX, LANXESS, ZEON
|
|
EPDM:
|
KUMMO, LANXESS
|
|
SBR:
|
LANHUA
|
|
CR:
|
FUJI Electric
|
|
FKM:
|
CHENGGUANG, DUPONT
|
|
PU:
|
LANXESS
|
|
SILICONE:
|
Shin-Etsu, Dow Corning, Dong-Jue
|
|
HNBR
|
ZEON, LANXESS
|
|
AEM:
|
FUJI Electric
|
|
ACM:
|
ZEON
|
|
Production capacity
|
|
|
Mode of production
|
Compression molding, Transfer molding, Injection molding
|
