Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Tu-xin
-
Model Number:
-
TX-PB*6618
-
Product Name:
-
Network Cabinet
-
Type:
-
Floor Standing Network Rack
-
Capacity:
-
4U - 18U
-
Color:
-
Black
-
Feature:
-
For Switches, routers
-
Certification:
-
ISO 9001:2008/CE/ROHS
-
Surface finish:
-
Powder Coating
-
Accessories:
-
Screw,Nut,Supporting feet,Castor,Key
-
Material Thickness:
-
Mounting Profile2.0mm
-
Protection Level:
-
IP20 Floor Standing Cabinet
Quick Details
-
Cabinet Standard:
-
ANS/EIA RS-310-D;DIN41491
-
Size:
-
600*600*18U
-
Material:
-
SPCC cold rolled steel
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Tu-xin
-
Model Number:
-
TX-PB*6618
-
Product Name:
-
Network Cabinet
-
Type:
-
Floor Standing Network Rack
-
Capacity:
-
4U - 18U
-
Color:
-
Black
-
Feature:
-
For Switches, routers
-
Certification:
-
ISO 9001:2008/CE/ROHS
-
Surface finish:
-
Powder Coating
-
Accessories:
-
Screw,Nut,Supporting feet,Castor,Key
-
Material Thickness:
-
Mounting Profile2.0mm
-
Protection Level:
-
IP20 Floor Standing Cabinet

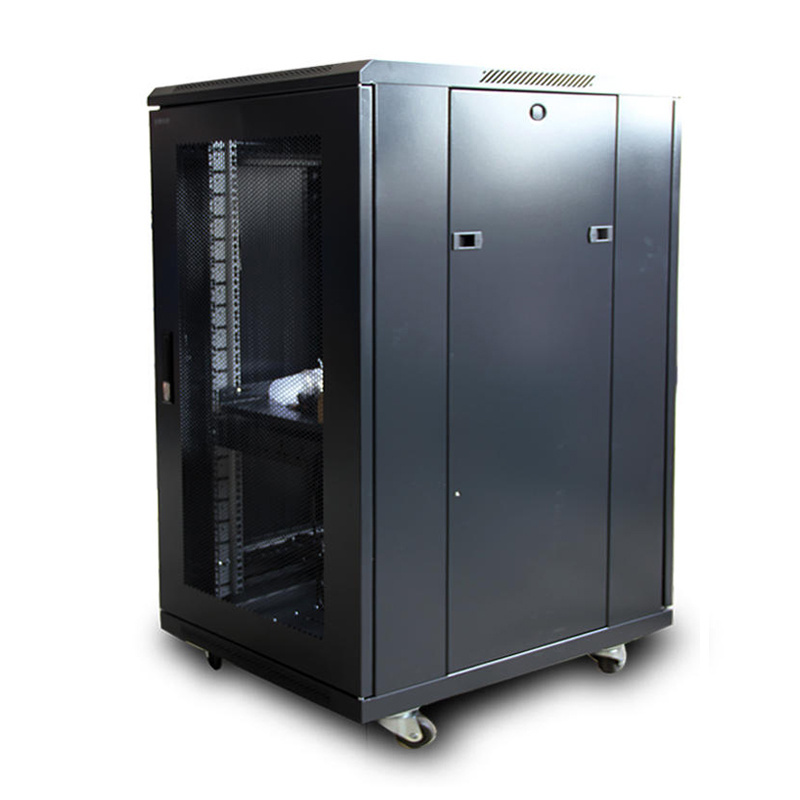

19 inch network data equipment rack 18u server rack cabinet half server rack
| Brand: | TUXIN | Column spacing: | 465mm (19 inch) |
| No: | TX-PB*6618 | Material: | SPCC cold rolled steel |
| Size: | 600mm*600mm*18U | Function: | Can install server equipment,the router,patch panel,KVM,UPS,Network device,etc. |
| IOS test: | Pass ISO9001:2008 Qualtiy System/CE/RoHS | Thickness: | Mounting Profile: 2.0mm,others: 1.2/1.0mm |
| Surface treatment: |
Degreasing,pickling,phosphating,power coating,etc. |
Configuration: | Cage nuts and M6 screws: 40 sets. |
| Standard: | Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491;PARTI,DIN41494;PART7,GB/T3047.2-92 standard; compatible with ETSI standard. | Device Installation: | It is recommended to install network equipment/server device within 700 mm depth. |
| Order Codes | Capacity(U) | W*D*H(mm) |
| TX-PB*6818 | 18 | 600*600*1000 |
| TX- PB *6822 | 22 | 600*600*1200 |
| TX- PB *6827 | 27 | 600*600*1400 |
| TX- PB *6832 | 32 | 600*600*1600 |
| TX- PB *6837 | 37 | 600*600*1800 |
| TX- PB *6842 | 42 | 600*600*2000 |
| TX- PB *6847 | 47 | 600*600*2200 |
