Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Nonw
-
Model Number:
-
8046
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
610x560x900mm
-
Power (kW):
-
1.5
-
Weight (KG):
-
280 KG
-
Model:
-

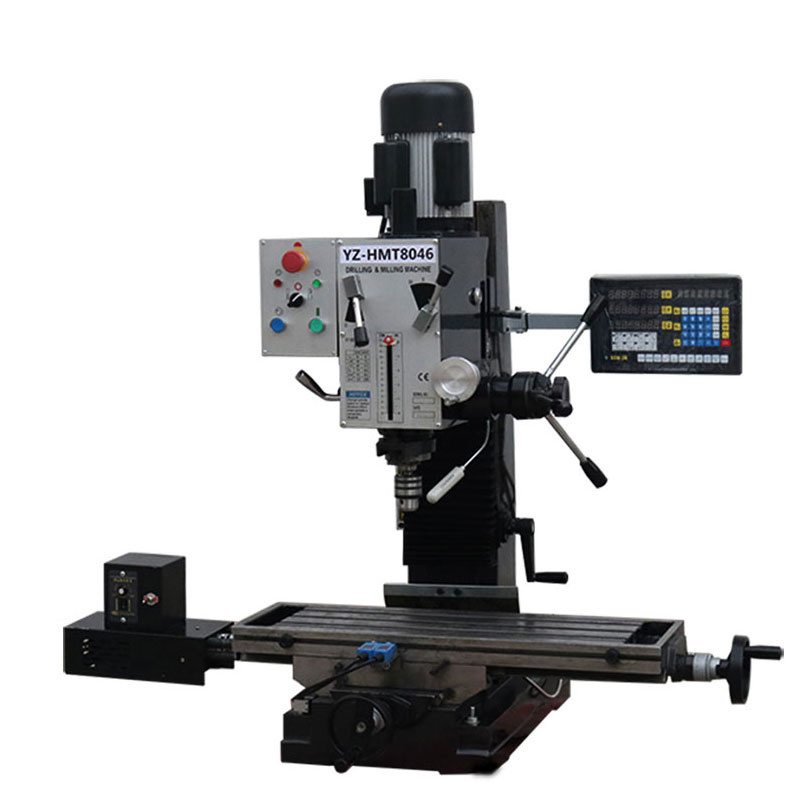

8046 drilling machine
-
Application:
-
Metal Part Processing
-
Function:
-
Drilling Milling Machining
-
Drilling capacity:
-
0-46mm
Quick Details
-
type:
-
Drilling & Milling Machine
-
Max. Drilling Dia. (mm):
-
46
-
Range of Spindle Speed(r.p.m):
-
80 - 1250 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
Nonw
-
Model Number:
-
8046
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
610x560x900mm
-
Power (kW):
-
1.5
-
Weight (KG):
-
280 KG
-
Model:
-
8046 drilling machine
-
Application:
-
Metal Part Processing
-
Function:
-
Drilling Milling Machining
-
Drilling capacity:
-
0-46mm
Product Description
The main performance characteristics:
1 Universal use as milling machines and drill press
2. Easily shiftable gear drive ensures power transmission without losses
3. With v-belt spindle drive
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the
spindle quill
5. Spindle and quill with large diameter, radial and axial bearing allows use for milling machines
6. Milling table swivels horizontally, including scale
7. Dovetail guides on all 3 axes
8. Head, table height can be adjusted through gear rack
9. Forward/reverse setting through motor switch
Application:
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
1 Universal use as milling machines and drill press
2. Easily shiftable gear drive ensures power transmission without losses
3. With v-belt spindle drive
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the
spindle quill
5. Spindle and quill with large diameter, radial and axial bearing allows use for milling machines
6. Milling table swivels horizontally, including scale
7. Dovetail guides on all 3 axes
8. Head, table height can be adjusted through gear rack
9. Forward/reverse setting through motor switch
Application:
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
|
Specifications
|
Units
|
8046
|
|
Workbench size
|
mm
|
800x240
|
|
Workbench travel
|
mm
|
580
|
|
Workbench vertical travel
|
mm
|
200
|
|
Vertical milling capacity
|
mm
|
83
|
|
Face milling capacity
|
mm
|
32
|
|
Drilling capacity
|
mm
|
46
|
|
Main motor
|
KW
|
1.5
|
|
T-slot width
|
mm
|
16
|
|
Spindle bore Morse taper
|
-
|
MT4
|
|
Overall dimensions(Lx W x H)
|
mm
|
610x560x900
|
|
Net weight
|
KG
|
280
|
