APPLICATION:
This product is widely used for covering the protection of various electronic components and circuit boards, forming a protective film on the surface, which can prevent corrosion, dust, moisture, leakage, short-circuit, cold and heat shock, a ging, and saltfog, etc.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
EINECS No.:
-
946-216-7
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
SAN CHEN
-
Model Number:
-
SC-9277
-
Type:
-
PCB COATING
-
Appearance:
-
Translucent liquid
-
Solid Content,%:
-
70±2
-
Viscosity ,25℃,CPs:
-
800-1100
-
Hardness, shore D:
-
≥22
-
/Special Gravity ,25℃,g/cm3:
-
1.037
-
Volume Resistivity, Ω.cm:
-
3.7X1015
-
Dielectric Constant,25℃ 100KHz:
-
≤2.71
-
Dielectric Loss Factor ,25℃ 100KHz:
-
≤2.8 X10-3
-
Adhesion:
-
Cross Hatch Test
-
High temp. resistance:
-
125℃/1000HOUR
Quick Details
-
CAS No.:
-
67763-03-5
-
Other Names:
-
silicone Conformal coating
-
MF:
-
H4Si
-
EINECS No.:
-
946-216-7
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
SAN CHEN
-
Model Number:
-
SC-9277
-
Type:
-
PCB COATING
-
Appearance:
-
Translucent liquid
-
Solid Content,%:
-
70±2
-
Viscosity ,25℃,CPs:
-
800-1100
-
Hardness, shore D:
-
≥22
-
/Special Gravity ,25℃,g/cm3:
-
1.037
-
Volume Resistivity, Ω.cm:
-
3.7X1015
-
Dielectric Constant,25℃ 100KHz:
-
≤2.71
-
Dielectric Loss Factor ,25℃ 100KHz:
-
≤2.8 X10-3
-
Adhesion:
-
Cross Hatch Test
-
High temp. resistance:
-
125℃/1000HOUR
Product Description

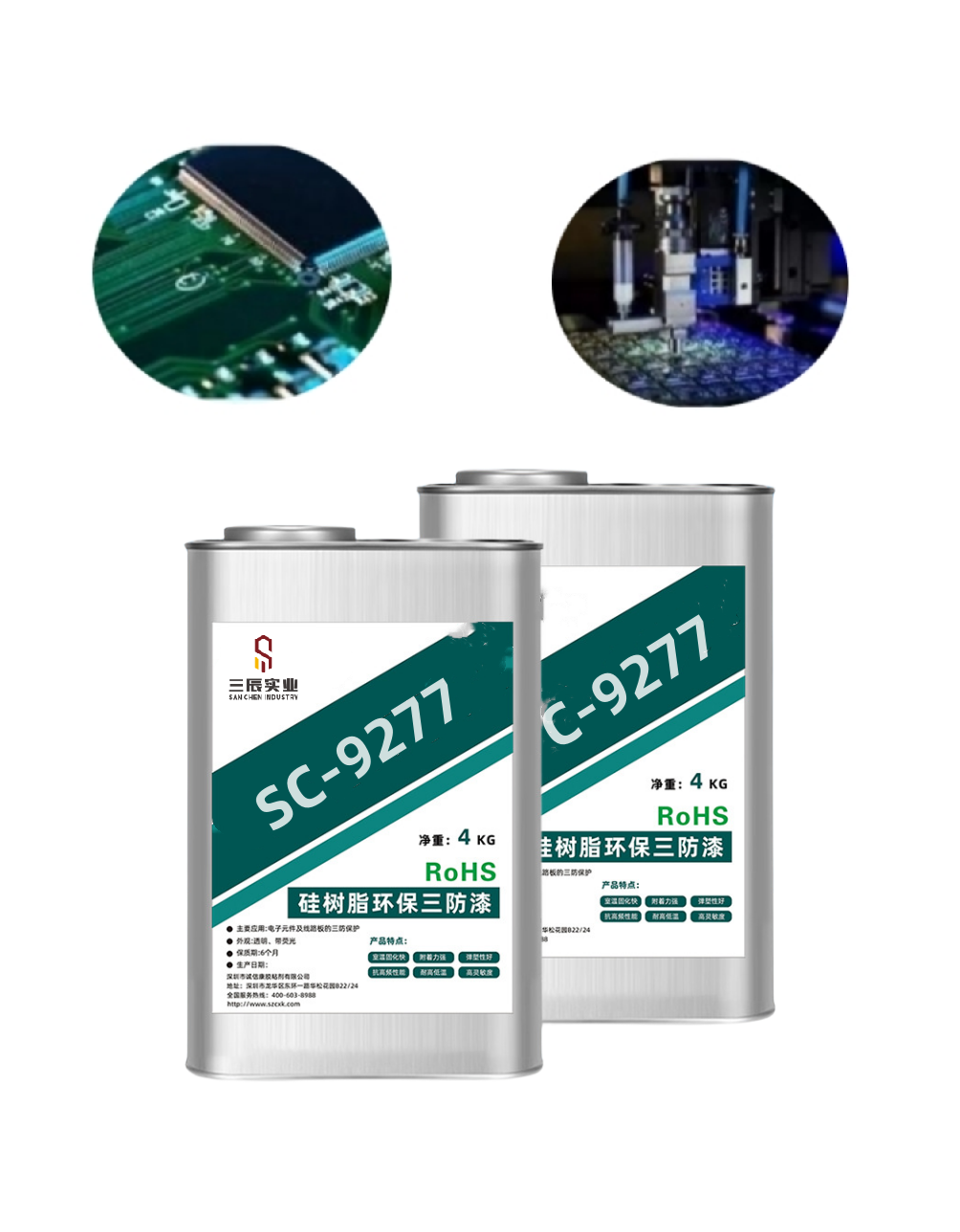

1. Name : SC-9277 silicone Conformal Coating
One-part, transparent medium viscosity conformal coating with firm, abrasion resistant surface after cure
2. FEATURES :
1. One Part Silicone Resin Solution
2. Cures to a tough, elastoplastic, resilient, abrasion resistant surface
3. Solvent-borne resin coating
4. Room temp cure with optional heat acceleration after solvent flash-off
5. UV indicator for inspection
6. UL V-0 flammability rating
7.. RT cure, no ovens required
8. Mild heat acceleration (after solvent flash-off) can speed in-line processing
9. Good adhesion allows use with many low-solids (no clean) and no-lead solders
10. UV indicator allows for automated inspection
11. Can be good choice for uses requiring more toughness and abrasion resistance after cure
One-part, transparent medium viscosity conformal coating with firm, abrasion resistant surface after cure
2. FEATURES :
1. One Part Silicone Resin Solution
2. Cures to a tough, elastoplastic, resilient, abrasion resistant surface
3. Solvent-borne resin coating
4. Room temp cure with optional heat acceleration after solvent flash-off
5. UV indicator for inspection
6. UL V-0 flammability rating
7.. RT cure, no ovens required
8. Mild heat acceleration (after solvent flash-off) can speed in-line processing
9. Good adhesion allows use with many low-solids (no clean) and no-lead solders
10. UV indicator allows for automated inspection
11. Can be good choice for uses requiring more toughness and abrasion resistance after cure
3. Application :
SC-9277 Conformal Coating is suitable for protective coating for rigid and flexible circuit boards and for electronic
printed wiring board (PWB) applications, particularly those requiring toughness and abrasion resistance
SC-9277 Conformal Coating is suitable for protective coating for rigid and flexible circuit boards and for electronic
printed wiring board (PWB) applications, particularly those requiring toughness and abrasion resistance
SILICONE RESIN CONFORMAL COATING
1.Dust proof, shock proof, chemical corrosion proof
2.Anti-friction, anti-high temperature
3.Three proof (waterproof, mildew proof, salt spray proof)
SC-9277
forms a persistent coating to insulate moisture and atmospheric contaminants, typical applications: coating thick film circuit systems, porous substrates and printed circuit boards. 9277, One component, transparent, medium viscosity coating for a rugged, wear-resistant surface after curing,UL94V-0,MIL approved, for moisture-proof insulation, mainly for PCB board coating.
It is easy to spray, dip, brush or pour coating, room temperature curing or add catalyst fast heat curing. Transparent, with good cohesiveness, stable and elastic at -60℃~200℃, containing UV fluorescent agent, with excellent dielectric properties.
Certificates
Specification
|
item
|
SILICONE RESIN CONFORMAL COATING
|
|
CAS No.
|
67763-03-5
|
|
Other Names
|
silicone resin
|
|
MF
|
H4Si
|
|
EINECS No.
|
946-216-7
|
|
Place of Origin
|
China
|
|
|
Jiangxi
|
|
Classification
|
Hot Melt Adhesives
|
|
Main Raw Material
|
Silicone
|
|
Usage
|
Transportation, automotive electronics
|
|
Brand Name
|
SAN CHEN
|
|
Model Number
|
SC-9277
|
|
Type
|
PCB COATING
|
|
Appearance
|
Translucent liquid
|
|
Solid Content,%
|
70±2
|
|
Viscosity ,25℃,CPs
|
800-1100
|
|
Hardness, shore D
|
≥22
|
|
/Special Gravity ,25℃,g/cm3
|
1.037
|
|
Volume Resistivity, Ω.cm
|
3.7X1015
|
|
Dielectric Constant,25℃ 100KHz
|
≤2.71
|
|
Dielectric Loss Factor ,25℃ 100KHz
|
≤2.8 X10-3
|
|
Adhesion
|
Cross Hatch Test
|
|
High temp. resistance
|
125℃/1000HOUR
|
Packing & Delivery
Packaging: 5kgs,10kgs,20kgs barrel packing(as customer's requirement)
