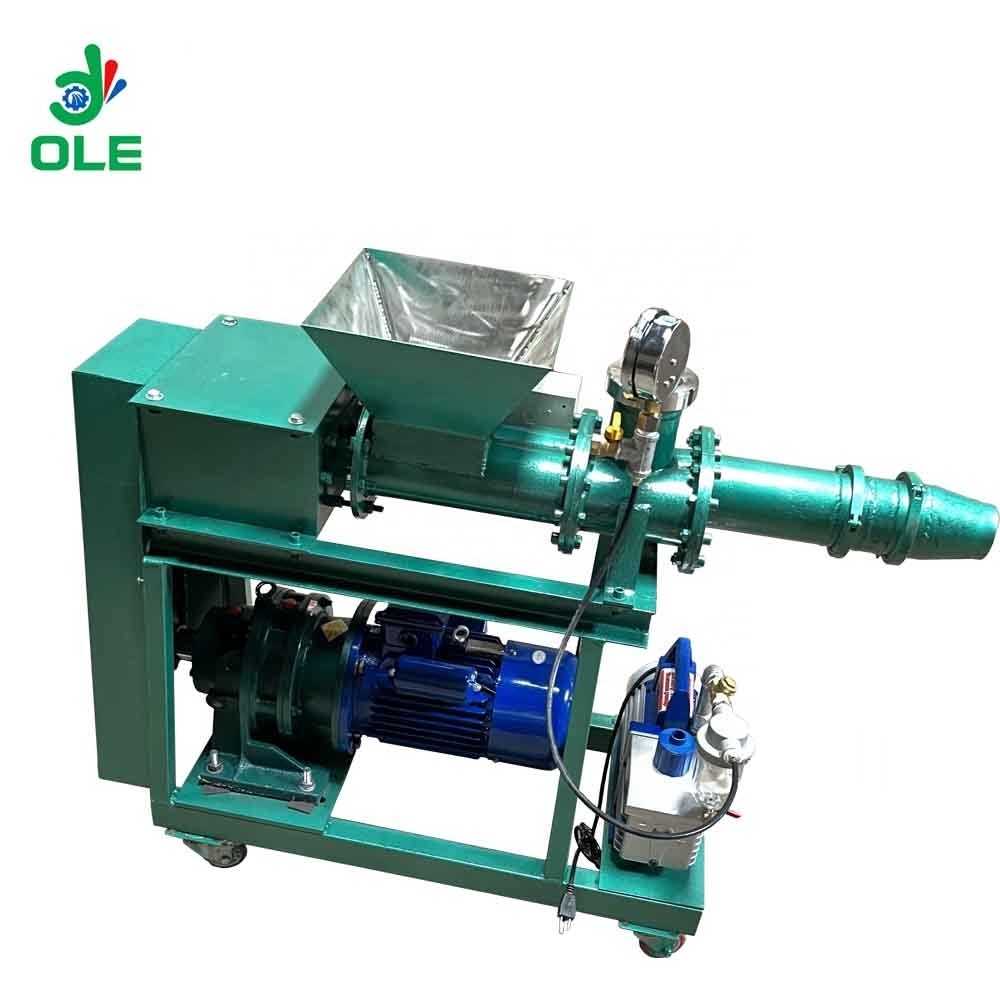

Stainless Steel Vacuum Clay Kneading Machine Automatic Vacuum Pug Mill Clay Extruder Machine

Stainless Steel Vacuum Clay Kneading Machine Automatic Vacuum Pug Mill Clay Extruder Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $1950

≥2 Sets

US $1850

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

voltage:: 380V/220V

Spiral diameter:: 170MM

power:: 3Kw

Capacity:: 0.6-1t/h

dimension:: 1130*400*960mm

Quick Details

Place of Origin:: Henan, China

Brand Name:: OL

Weight (KG):: 165

voltage:: 380V/220V

Spiral diameter:: 170MM

power:: 3Kw

Capacity:: 0.6-1t/h

dimension:: 1130*400*960mm

Stainless Steel Vacuum Clay Kneading Machine Automatic Vacuum Pug Mill Clay Extruder Machine

Product Paramenters

Model	OLNTJC-ZK150
dimensions	1130400960mm
weight	165kg
Capacity	0.6-1t/h
power	3kw 380v
Speed	1440R
voltage	380V
Spiral diameter	170mm
Inlet size	11-20cm

Details Images

The mud training machine adopts double-shaft feeding and stirring, and the mud knife cuts and extrudes. The hardness and viscosity of the pottery clay produced can meet the needs of pottery making, which reduces the labor of stepping on mud in artificial pottery pools, and solves the problem of ceramic trachoma that is easy to appear when the soil particles are large when artificial and mud.

1. Lubricate the reducer before use.
2. Do not reverse the direction of rotation before use.
3. Do not put hard objects (stones, sticks, etc.) into the feed hopper before use, it will damage the feed shaft.
4. The mud bearing is cleaned and refueled once a month. After removing the screw on the mud plate during cleaning, it can be pulled out from any direction.
5. Discharge the mud nozzle, the screw can be pulled out for easy cleaning.
