New Zeland AS Prefab Mobile Light steel structure durable villa
Light steel villa is kind of modular house, consisting of cold form, thin-walled light steel keel system, thermal wall system, and roof system.
It is new type of energy conservation and environment protection house which is easy and convenient to install .
1. Roof System
Materials of the Roof
Colorbond glazed tile
size:0.4mm effective width:800m
Coral metal roofing
Galvainzed steel plate(thickness:0.4mm) treatd with natural glazed color sand.
Size: length 1170mm * width420mm * effective width 375mm, 2.47 pieces/m2
2.3kg/piece
Glass fiber glazed tile(mosaic shaped)
Its base is made of glass fiber, spreaded with anti-water pitch on both sides, treated with natural glazed color sand.
Fasia plate
Verge board corner cornice.
2. Floor System
Materials of the floor
Colored steel ceiling
Size: effective width 145mm
thickness:0.5mm/0.42mm
Downspout
PVC ceiling
PVC gutter
Steel gutter
Insulation materials
Glass insulation cotton and XPS
Used in the wall system and roof system as insulation materials
Building paper
Isolate the mositure: mainly used in the wall system and the connection of wall keel and cement floor.
House wrap
It is used to let the inside mositure out and protect the inner space from the humidity outside. Used in the wall system
Boards
Gypsum board
Size:2.4m*3m
Thickness:9.5mm/12mm/15mm
Used in the inner wall, floor
Cement fiber board
Size:2.4m*1.2m
Thickness: 9mm/10mm/12mm/24mm
Used in toilet wall, kitchen wall and chassis.
Wood floor
3. Wall System
Materials of the wall
16MM metal external wall
Its surface is made of 0.42mm colored steel pressed with embossed pattern; bottom is pasted with dampproof aluminium foil, integrated with PU between the surface and bottom. size:16mm
12MMmetal external wall cladding
Its surface is made of 0.42mm colored steel pressed with embossed pattern; bottom is pasted with dampproof aluminium foil; Integrated with PU between the surface and bottom, Size:12mm
Metal Carved board
Its surface is made of 0.42mm colored steel pressed with embossed pattern; bottom is pasted with dampproof aluminium foil; Integrated with PU between the surface and bottom, Size:16mm, effective width 375mm and 385mm
PVC metal external wall cladding(Holland style)
Size: width 20.32-25.4cm.
Thickness:0.8mm-1.0mm
Normal ength: 3.81m
Weight:2.2 kg/m2
Cement fiber external wall cladding(solid)
Size:effective width:460mm
Effective thickness:16mm/18mm
Rippled plate
Size: effective width:825mm
Advantages of light steel structure villa
* Easy to install: all the fixed holes and pipe holes are prepunched , 2-3 workers can finish the installation. (save 70% labor cost, shorten 10% construction period, fasten 30% the construction precess )
* Suitable for extreme climate, can endure 9 grade seismic, 12 grade hurricane, 1500mm snow load 2.5h fire resistance .
* Moisture-proof and great ventilation design .
* Long lifespan up to 50 years .
* Dry construction and recycled building materials, environment-friendly.
Short construction period, saving up to 50% time period of construction.

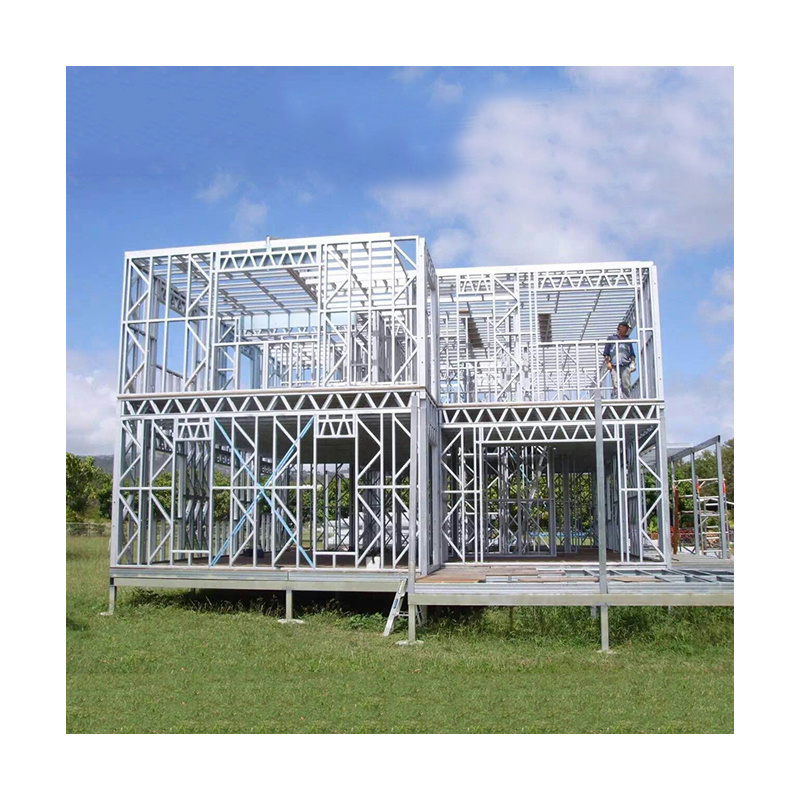

Project of light steel structure villa
