Quick Details
-
Product name:
-

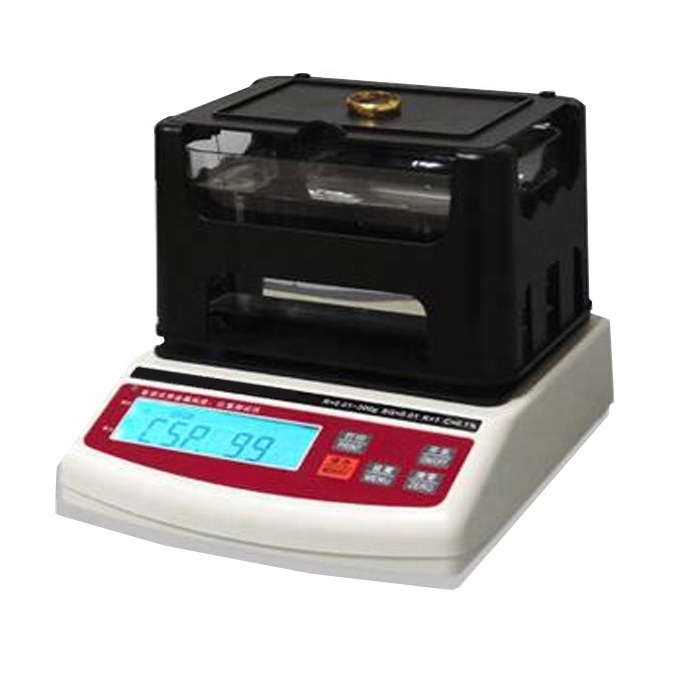

Digital Electronic Portable Gold Purity Testing Machine Factory
-
Usage:
-
Gold Purity Tester
-
Sensor brand:
-
German HBM
-
Density (specific gravity) test accuracy:
-
0.001 g/cm3
-
Repeatability accuracy:
-
±1k
-
Temperature settings:
-
Freely set
-
Solution compensation settings:
-
Freely set
-
Print interface:
-
Standard RS-232 interface
-
Display:
-
Digital Display
-
Warranty:
-
1 Year
Quick Details
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
K300
-
Product name:
-
Digital Electronic Portable Gold Purity Testing Machine Factory
-
Usage:
-
Gold Purity Tester
-
Sensor brand:
-
German HBM
-
Density (specific gravity) test accuracy:
-
0.001 g/cm3
-
Repeatability accuracy:
-
±1k
-
Temperature settings:
-
Freely set
-
Solution compensation settings:
-
Freely set
-
Print interface:
-
Standard RS-232 interface
-
Display:
-
Digital Display
-
Warranty:
-
1 Year
1. Directly read the purity of gold and measure the density (specific gravity) of other metals. After testing, your gold will not leave any stains and scratches;
2. It takes only 10 seconds to accurately measure the K number and density of gold, the Pt value and density of platinum;
3 . E asy to operate, determine the precious metal density (specific gravity) and gold k number / platinum PT value, only need to weigh 2 times, just put the sample into the water, the instrument's internal software will automatically calculate;
4 . A ccording to market demand, through special software design, the user can set the upper and lower limits of K number and Pt value. When the test gold K number is greater than 24K, the instrument will display HI; when it is less than 12K, LO will be displayed. Identify the authenticity of gold in a more intuitive and faster way;
5. According to the ratio of copper and silver in gold, set the ratio of copper and silver to compensate the parameter value;
6. It adopts one-piece transparent large water tank (size: 15cm×10cm×9cm). The water tank is formed by special material, which is not only anti-wear and corrosion-resistant, but also not easy to break. It is also very beautiful and can be very convenient for users. use;
7. Lightweight, thin strip and stainless steel hanging bar line design can greatly reduce the error caused by the buoyancy of the hanging bar line;
8 . C an test other precious metals, such as silver, copper, tin, etc.; can also be used as a precision electronic balance.
9 . O nly for solid metal parts, and solid metal parts are not equipped with gemstones;
10 . I ncluding RS-232C communication interface, easy to connect PC and printer, optional MZ-P1 printer to print measurement data
Technical Parameters:
|
M odel: |
K300 |
K600 |
K1200 |
|
|
Weighing range: |
5~ 300g |
5~ 600g |
5-1200g |
|
|
Sensor brand: |
German HBM |
|||
|
Density (specific gravity) test accuracy: |
0.001 g/cm 3 |
|||
|
Repeatability accuracy: |
±1k |
|||
|
Temperature, solution compensation settings: |
Freely set |
|||
|
Gold test mode |
Features: |
Direct reading of gold K, density (specific gravity) |
||
|
Display value: |
K number, density (specific gravity) of gold |
|||
|
Copper and silver matching parameter compensation settings: |
The ratio of copper to silver is set to 7: 3, 6: 4, 5: 5 compensation parameters |
|||
|
K value upper and lower limit settings: |
The upper and lower limits of the gold K number can be set as follows: 24K~5K, 24K~6K |
|||
|
Platinum test mode |
Features: |
Direct reading of Platinum Pt value, density (specific gravity) |
||
|
Display value: |
Platinum Pt value, density (specific gravity) |
|||
|
Other alloy specific gravity settings: |
Can set the standard specific gravity value of other alloys in platinum, such as copper: 8.93 |
|||
|
The upper and lower limits of the Pt value are set: |
Can set the upper and lower limits of Platinum Pt value, such as: 1000~600 |
|||
|
Print interface: |
Standard RS-232 interface for easy connection to computers and printers |
|||
Each set protected with strong carton case with English operation manual. It would be best to be delivered by Courier Ecpress because of small weight and packing size.
Customer: What about the transportation?
Answer: It depends on your requirement. We can delivery by air to your airport, or by sea to your seaport, and we can also delivery to your office address by express courier, and we also accept to co-operate with your ship agent or forwarder.
Customer: What about the after-sale service?
Answer: Guarantee period is 12 months, after the warranty, we also provide life-long paid repair or service. Response within 24 hours for any problems. Overseas training, installation is available.
Customer: What about the delivery date?
Answer: Usually we offer 15workdays after order confirmed and payment received, and we can also accept urgent order for prompt shipment.
All machine quality guarantee for one year and lift-time technical support for customer. On line response to customers technical problems.and life-time technical support for customer.
