Quick Details
-
Brand Name:
-
wolck
-
Use:
-
FTTH
-
Warranty Time:
-
1 year
-
Item:
-
passive optical node
-
Input optical power:
-
-15~0
-
Reflection loss:
-
>45
-
Received light wavelength:
-
1310~1550
-
Input optical interface:
-
SC/APC-SC/UPC
-
Frequency Range:
-
47~1000
-
In-band flatness:
-
1.5
-
RF output impedance:
-
75
-
Factory experience:
-
17years
-
Application:
-
FTTH system
Quick Details
-
Type:
-
Optical Receiver
-
Model Number:
-
FT-1000WMS
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
wolck
-
Use:
-
FTTH
-
Warranty Time:
-
1 year
-
Item:
-
passive optical node
-
Input optical power:
-
-15~0
-
Reflection loss:
-
>45
-
Received light wavelength:
-
1310~1550
-
Input optical interface:
-
SC/APC-SC/UPC
-
Frequency Range:
-
47~1000
-
In-band flatness:
-
1.5
-
RF output impedance:
-
75
-
Factory experience:
-
17years
-
Application:
-
FTTH system

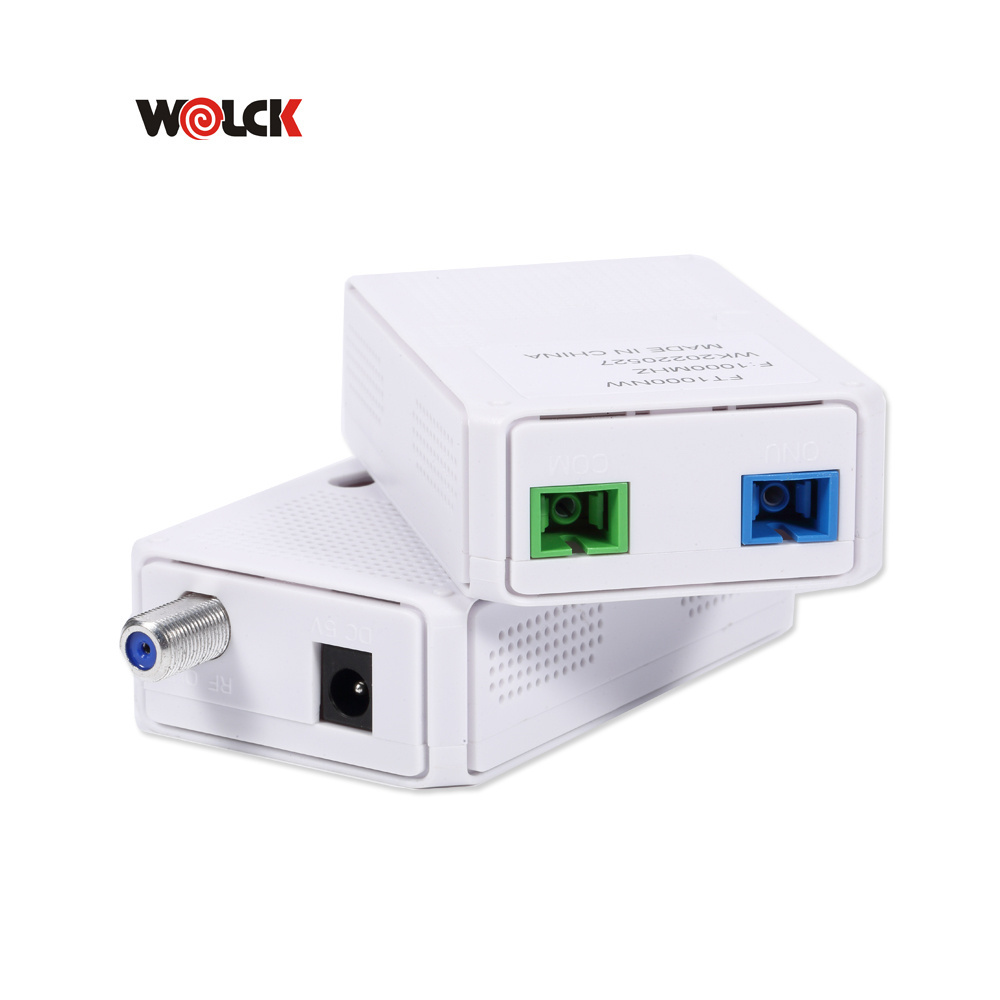

Wolck FTTH Optical Fiber CATV 1550nm Optic Active Node
Fiber to the home ( FTTH ) broadband access is the ultimate development goal, FT-1000WMS optical receiver is the target terminal products for this goal. This device adopts technology of high isolation WDM in order to separate CATV and ONU signal. Further more, it also adopts low optical power receiving, which could achieve therequirement of ≤-9dBm CATV receiving for FTTH. The optical power receiving monitoring indicator LED ( ≥-15dBm) is provided on the pane and it supports RF outputs constantly, convenience of customers use, which is the ideal receiver equipment for FTTH.
|
Item
|
|
Unit
|
Performance Parameter
|
||
|
Optical characteristic |
input wavelength
|
(nm)
|
1310,1490,1550
|
||
|
|
Output wavelength
|
(nm)
|
1310,1490
|
||
|
|
CATV operation wavelength
|
(nm)
|
1540～1560
|
||
|
|
channel separation
|
(dB)
|
≥40（1310/1490nm and 1550nm)
|
||
|
|
response
|
(A/W)
|
≥0.9
|
||
|
|
receive power range
|
(dB)
|
+3～-18
|
||
|
|
reflection loss
|
(dB)
|
≥55
|
||
|
|
fiber linker
|
/
|
SC/APC
|
||
|
RF characteristic |
Bandwidth/flatness
|
MHz/dB
|
47-1000/≤±1
|
||
|
|
output level
|
dBuv
|
82/76/70±1/(0～--9/-12/-15dBm)
|
||
|
|
output level adjustment
|
dB
|
0～-18
|
||
|
|
reflection loss
|
dB
|
≥14（75Ω characteristic impedance）
|
||
|
|
RF output interface
|
/
|
Metric (one way output)
|
||
|
|
CNR/MER
|
dB
|
≥44/34(PAL-D 60CH,OMI3.8%,-9dBm)
|
||
|
|
CTB/CSO/HUM
|
dB
|
≥65/≥60/≥60(-1dBm receive)
|
||
|
Other requirement |
power supply/consumption
|
V/W
|
External AC155～255V→DC12,/5
|
||
|
|
working/storage temperature
|
℃
|
-35～50/-40～75(humidity 5～90%)
|
||
|
|
size
|
mm
|
130×60×22
|
||
|
Packaging
|
200pcs in one carton Carton size: 39*34*50cm GW: 13.3kgs
|
|
|
||
Shenzhen Wolck Network
Product
Co.,Ltd. is located in Shenzhen city which is one of the first-tier cities in China. Wolck company is a high-tech enterprise specializing in the development of technology and equipment for EPON/GPON/CATV equipments.Production and equipments detailed can be shown online, and all products will be passed the test before shipment.
Wolck company not only offer equipments but also offer technical support and best service for after-sales. Wolck company also is Quality Guarantee Enterprise, got the ISO9000 cetificate, and offer cetificates such as CE, CO, FORM-E/F/M etc.
Wolck company not only offer equipments but also offer technical support and best service for after-sales. Wolck company also is Quality Guarantee Enterprise, got the ISO9000 cetificate, and offer cetificates such as CE, CO, FORM-E/F/M etc.
