- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
RT8(8+4)
-
Dimension:
-
82x34x40 / 80x60x1200
-
Power Supply Mode:
-
Other
-
Storage:
-
/
-
SNR:
-
105dB
-
Output Power:
-
700W / 800W
-
Connection Type:
-
Other
-
Shell Material:
-
Other
-
Format:
-
/
-
The body material:
-
Other
-
Brand:
-
ARE Audio
-
Type:
-

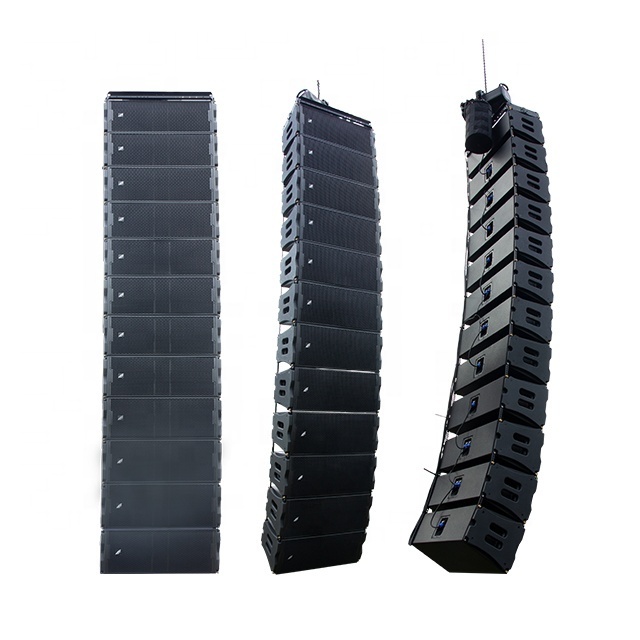

Passive Line Array Sound System
-
Model:
-
L24P&BS24
-
DC-Impedance:
-
12.8Ohm / 6.4Ohm
-
Power (W):
-
700W / 800W
-
Frequency Range (Hz/-10db):
-
60-20k / 30-90
-
Sensitivity (dB/m.w):
-
102 / 104
-
Max SPL (dB):
-
137-149 / 138
Quick Details
-
Warranty:
-
3years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ARE Audio
-
Model Number:
-
RT8(8+4)
-
Dimension:
-
82x34x40 / 80x60x1200
-
Power Supply Mode:
-
Other
-
Storage:
-
/
-
SNR:
-
105dB
-
Output Power:
-
700W / 800W
-
Connection Type:
-
Other
-
Shell Material:
-
Other
-
Format:
-
/
-
The body material:
-
Other
-
Brand:
-
ARE Audio
-
Type:
-
Passive Line Array Sound System
-
Model:
-
L24P&BS24
-
DC-Impedance:
-
12.8Ohm / 6.4Ohm
-
Power (W):
-
700W / 800W
-
Frequency Range (Hz/-10db):
-
60-20k / 30-90
-
Sensitivity (dB/m.w):
-
102 / 104
-
Max SPL (dB):
-
137-149 / 138
Product Paramenters
|
|

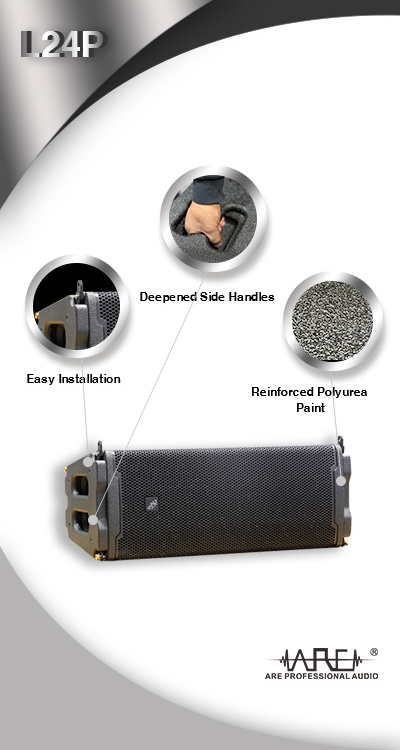

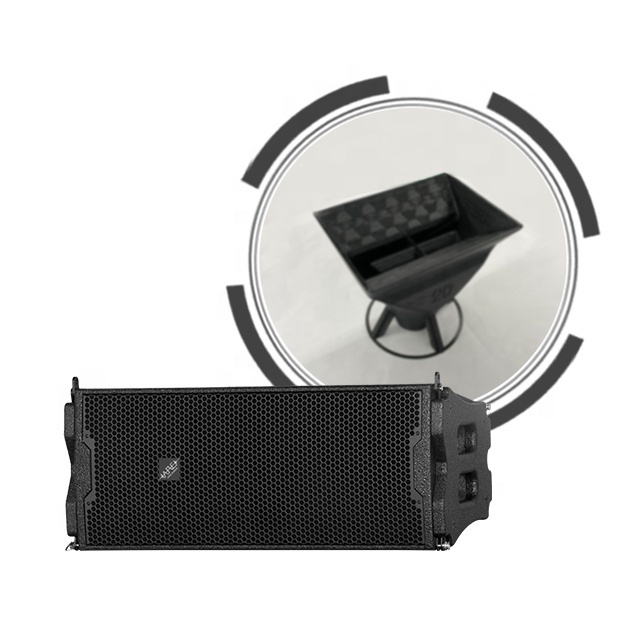

L24P
|

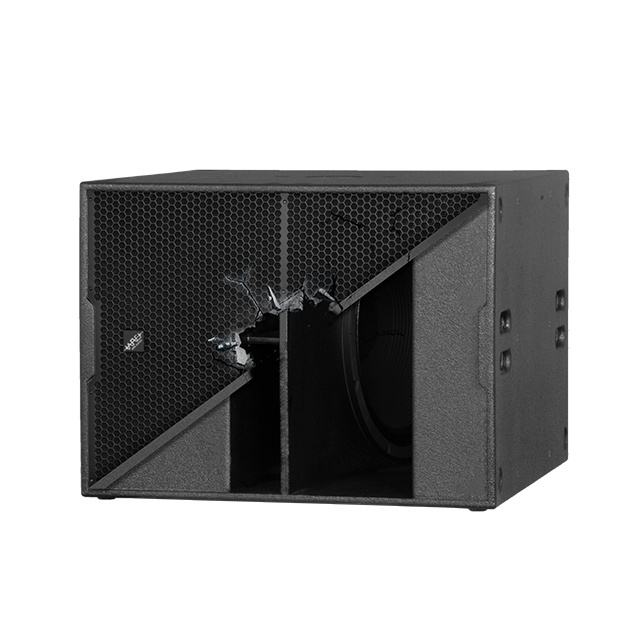

BS24
|
|
Driver (Inch)
|
2*12"LF+2*2"HF
|
1x24"LF
|
|
DC-Impedance
|
12.8Ohm
|
6.4Ohm
|
|
Frequency Range (Hz/-10db）
|
60-20k Hz
|
30-90
|
|
Power (W)
|
700W
|
800W
|
|
Peak Power (W)
|
2800W
|
3200W
|
|
Sensitivity (dB/m.w)
|
102dB
|
104dB
|
|
Max SPL (dB)
|
137-149dB
|
138dB
|
|
Coverage (H*V)
|
110º horizontal, 15º vertical
|
/
|
|
Size (cm)
|
82x34x40
|
80x60x1200
|
|
N.W. (kg)
|
32
|
80
|
|
|
D6D
|
|
Minimum Load Impedance (Ω)/DCRmin
|
4.8/4.8
|
|
Max Output (W/230v/40ms)
|
4000/4000
|
|
THD (8Ω/100W/100Hz)
|
<0.03%
|
|
Frequency Response (8Ω/100W/±0.5dB)
|
10Hz-22kHz
|
|
SNR (8Ω/100Hz/A-weighting)
|
105dB
|
|
Damping Factor (8Ω/300W/100Hz)
|
>1000
|
|
Slew Rate (8Ω/300W/100Hz)
|
>100V/us
|
|
Electric Energy Efficiency (8Ω/300W/100Hz)
|
>85%
|
|
Idle Power (230V)
|
20w
|
|
Power Factor (1000W/230V/50Hz)
|
>0.85
|
|
Operation Range
|
350kHz
|
