Quick Details
-
Warranty:
-
2 years
-
Brand Name:
-
Aikon
-
Model Number:
-
CHLF
-
Place of Origin:
-
Shanghai, China
-
Horsepower:
-
0.5HP~6HP
-
Outlet Size:
-
G1 1/2''-G2''
-
Power:
-
0.37KW~4KW
-
motor:
-
1ph/3ph
-
Flow range:
-
0.6~240m³/h
-
Head range:
-
15~60m
-
Power range:
-
0.37KW~4KW
-
Material:
-
SS304
-
Frequency:
-
50/60HZ
-
Temperature:
-
-15~+180℃
-
Max working pressure:
-
0.6Mpa
-
Connection:
-
Flange/Thread
-
Seal:
-
Cartridge mechnical seal
-
Certification:
-
ce
Quick Details
-
Application:
-
Commercial Buildings, Drinking water treatment, Family Homes, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Metal and Equipment Manufacturers, Raw Water Intake, Washing and Cleaning, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
High Pressure
-
Voltage:
-
220/380V
-
Warranty:
-
2 years
-
Brand Name:
-
Aikon
-
Model Number:
-
CHLF
-
Place of Origin:
-
Shanghai, China
-
Horsepower:
-
0.5HP~6HP
-
Outlet Size:
-
G1 1/2''-G2''
-
Power:
-
0.37KW~4KW
-
motor:
-
1ph/3ph
-
Flow range:
-
0.6~240m³/h
-
Head range:
-
15~60m
-
Power range:
-
0.37KW~4KW
-
Material:
-
SS304
-
Frequency:
-
50/60HZ
-
Temperature:
-
-15~+180℃
-
Max working pressure:
-
0.6Mpa
-
Connection:
-
Flange/Thread
-
Seal:
-
Cartridge mechnical seal
-
Certification:
-
ce
Integrated pump control solution

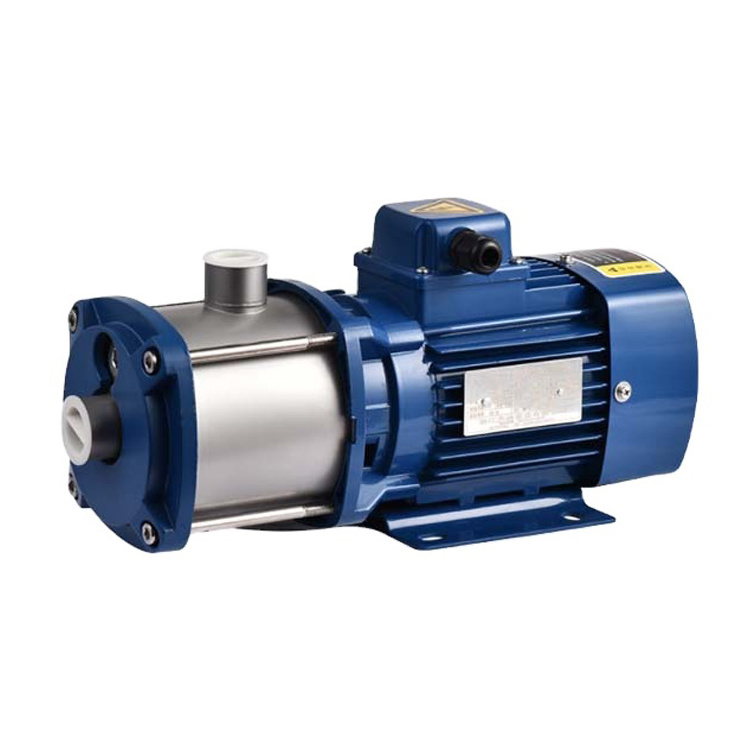

Horizontal SS variable frequency pump set for household
Horizontal SS multistage variable frequency pump set
(Double Pumps or three pumps)
Vertical stainless steel variable frequency pump set
Product Description
Introduction:
1. Impeller and wet parts are made of stainless steel.
2. It's with the merits of small size, light weight, compact structure, low noise, easy to install and used.
3. Horizontal multistage non-self-priming centrifugal pump, attached with long shaft electric motor.
4. Axial inlet and radial outlet.
5. CHL flow passage components stainless steel 304 or 316, CHLF is stainless steel 304 or 316 segmental type pump body, CHLF(T) is segmental type pump body and discharge are made of cast iron.
2. It's with the merits of small size, light weight, compact structure, low noise, easy to install and used.
3. Horizontal multistage non-self-priming centrifugal pump, attached with long shaft electric motor.
4. Axial inlet and radial outlet.
5. CHL flow passage components stainless steel 304 or 316, CHLF is stainless steel 304 or 316 segmental type pump body, CHLF(T) is segmental type pump body and discharge are made of cast iron.
Applicable medium
Thin and clean non-flammable and non-explosive liquid without solid granules and fibers.
Mineral water, soft water, pure water, edible vegetable oil and other light chemical mediums.
When the density or viscosity of to-be-conveyed liquid is larger than that of water, it is necessary to select a driving motor of high-power.
Whether a specific liquid is suitable for the pump depends on many factors, among which the most important ones are chlorine content, PH value, temperature, solvent and oil content.
Mineral water, soft water, pure water, edible vegetable oil and other light chemical mediums.
When the density or viscosity of to-be-conveyed liquid is larger than that of water, it is necessary to select a driving motor of high-power.
Whether a specific liquid is suitable for the pump depends on many factors, among which the most important ones are chlorine content, PH value, temperature, solvent and oil content.
Specification
|
Working Principle:
|
Centrifugal
|
|
Main applications:
|
Water, Chemical
|
|
Driver:
|
Electric motor
|
|
Power Specs:
|
220-240V single phase, 220-240V/380-415V three phase
50Hz or 60Hz |
|
Max.permissible fluid temperature:
|
-15°C to +70°C(hot water type max 110°C)
|
|
Type of connection:
|
Inlet thread, hose, flange
|
|
Installation position:
|
Horizontal
|
|
Casing parts material:
|
Stainless steel 304 or 316
|
|
Shaft seal type:
|
Mechanical seal
|
|
Maximum drive rating:
|
4KW(6HP)
|
|
Maximum caliber:
|
50mm(2inch)
|
|
Maximum discharge-side pressure:
|
0.6MPa(6bar)
|
|
Maximum head:
|
60m(196.8ft)
|
|
Flow rate range:
|
0.5-28m3/h(2.2-123.20US.GPM)
|
