Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LONKIA
-
Dimension(L*W*H):
-
5000*1400*1600
-
Marketing Type:
-
Hot Product 2020
-
Weight (KG):
-
400 kg
-
Application:
-
Continuous Commercial Cleaning
-
Keywords:
-
Turnover Tray Cleaning Machine
-
Name:
-
High Pressure Steam Washer
-
Pressure Washer Type:
-
High Pressure Power Jet Cleaner
-
Usage:
-
Cleaning Plastic Box
-
Product:
-
Turnover Box Cleaning Machine
-
Item:
-
Fish Basket Washing Machine
-
Product Name:
-
Disinfection Steam Sprayer Cleaner Portable High Pressure Cleaner
-
Key words:
-
Industrial Bakery Crate Washing Machine
-
Type:
-
High Pressure Cleaner Water Jet Drain Pipe Cleaner
Quick Details
-
Cleaning Process:
-
Hot Water Cleaning
-
Power:
-
15.75kw
-
Max. Pressure:
-
30Mpa
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LONKIA
-
Dimension(L*W*H):
-
5000*1400*1600
-
Marketing Type:
-
Hot Product 2020
-
Weight (KG):
-
400 kg
-
Application:
-
Continuous Commercial Cleaning
-
Keywords:
-
Turnover Tray Cleaning Machine
-
Name:
-
High Pressure Steam Washer
-
Pressure Washer Type:
-
High Pressure Power Jet Cleaner
-
Usage:
-
Cleaning Plastic Box
-
Product:
-
Turnover Box Cleaning Machine
-
Item:
-
Fish Basket Washing Machine
-
Product Name:
-
Disinfection Steam Sprayer Cleaner Portable High Pressure Cleaner
-
Key words:
-
Industrial Bakery Crate Washing Machine
-
Type:
-
High Pressure Cleaner Water Jet Drain Pipe Cleaner
Product Description

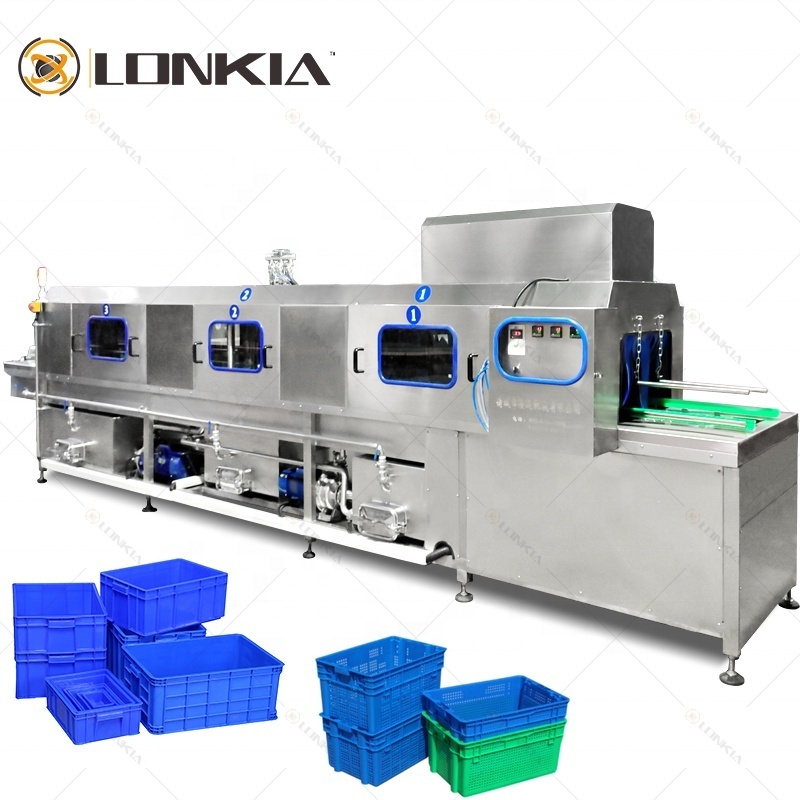

Brief Introduction of Crate Washing Machine：
This equipment is used for cleaning all kinds of turnover baskets. The whole machine is made of high-quality 304 stainless steel to meet the national health requirements. The pipeline adopts a snap-in installation form, which is convenient for pipeline cleaning and reliable operation. Using multi-stage pump pressure supply, unique nozzle installation makes cleaning more thorough.
Spray system:
1). Conical cleaning nozzle arrangement for stereo four-way mounting structure, a scattered distribution, nozzle angle adjustable, cold, hot water cleaning, the cleaning is more thorough, all the pipes and joints are the quick change connector design, each nozzle pipe can achieve without dismounting tool, easy to clean, workers per shift cleaning without dead angle, cleaning the box without dead angle;
2). Tank before the second stage adopts horizontal spray cleaning stainless steel centrifugal pump cycle, water pump using the best domestic pump pump industry (per 7.5 KW), southern water pump flow per hour 100 cubic, big flow pump small export, pressure big, clean the cleaner. In the first two paragraphs of water temperature 30-50 degrees self-control, after a period of ordinary water pump (each 3 kw), water spray system, to ensure the cleaning effect of ideal
Working principal:
Steam is injected to water directly for heating; the spraying nozzles are used in all directions, so crates can be cleaned from different directions; there are three washing sections, 1st section by spraying alkali solution, cleaning temperature 80 degrees; 2nd section by spraying hot water, temperature 80 degrees; 3rd by normal water cleaning and meanwhile cool the crates before output;
Product Paramenters
|
Name
|
Section
|
Two Sections
|
There Sections
|
Five Sections
|
|||
|
Length/Width/Heigh
|
3000*1700*1700
|
4000*1700*1800
|
6100*1700*1900
|
8000*1700*1700
|
|||
|
Machine plate
|
SUS304
|
|
|
|
|||
|
Power supply
|
380V/50HZ
|
|
|
|
|||
|
Total power
|
9
|
16.5
|
19.5
|
34.5
|
|||
|
Steam consumption
|
0.3T/H
|
|
|
|
|||
|
Water supply pressure
|
4KG
|
|
|
|
|||
|
Thickness
|
3mm
|
|
|
|
|||
|
Steam pressure Mpa
|
0.6Mpa
|
|
|
|
|||
|
Electric heating
|
15kw/per
|
|
|
|
|||
|
Workload
|
100-500units
|
300-800units
|
800-1200units
|
1000-1500units
|
|||
|
Working height
|
1000mm
|
|
|
|
|||
|
Water consumption
|
0.5m*3/one tank
|
|
|
|
|||
Application:
The target enter into the machine from the stainless steel chain, sequentially through the warm water to high pressure hot water to room temperature water to disinfection water and then remove the water from the powerful fan. Sterilization and blow dry at the same time when the target is cleaned up fully. For hard cleaning, the hot soda water can be added and plus several brushes, focus on the bottom and two sides of the target, using continuous cleaning mode to improve the clean up effect.
