Quick Details
-
Description:
-
Isolation and conversion voltage, current transducer
-
Model Number:
-
N3WD, N3-WD-123
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SAC
-
Theory:
-
Hall Effect/Electromagnetic Induction
-
Output:
-
4-20m;0-5V
-
Power Supply:
-
AC220V/DC220V DC110V
-
name:
-
Voltage Transducer
-
Usage:
-
industrial control and Telecommunication widely use
-
Accuracy:
-
0.2% , 0.5%
-
Linearity:
-
0.10%
-
Operating Temperature:
-
-25℃~+55℃
-
Humidity:
-
5%-95%
-
Installation Method:
-
Guided Rail-Type
Quick Details
-
Use:
-
Industry
-
Series:
-
N3
-
Mounting Type:
-
DIN RAIL
-
Description:
-
Isolation and conversion voltage, current transducer
-
Model Number:
-
N3WD, N3-WD-123
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SAC
-
Theory:
-
Hall Effect/Electromagnetic Induction
-
Output:
-
4-20m;0-5V
-
Power Supply:
-
AC220V/DC220V DC110V
-
name:
-
Voltage Transducer
-
Usage:
-
industrial control and Telecommunication widely use
-
Accuracy:
-
0.2% , 0.5%
-
Linearity:
-
0.10%
-
Operating Temperature:
-
-25℃~+55℃
-
Humidity:
-
5%-95%
-
Installation Method:
-
Guided Rail-Type
Best Selling
Overview
Product Description
Overview:

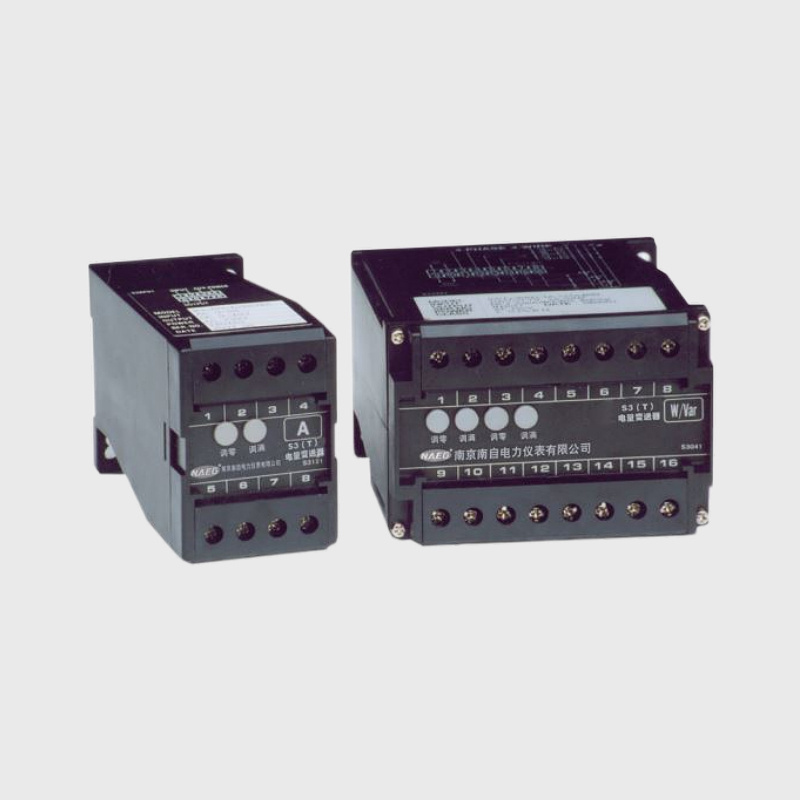

<1>. N3 series AC transmitter, it converts AC signals from AC transformers into standard process signals. It is used for monitoring the power supply line and its voltage,and monitoring the overload of nonstandard pressure drop.
<2>. The distortion waveform of input signal does not affect the measurement accuracy
<3>. The input,output and power supply are isolated from each other.
<4>. Standard 35mm DIN rail independent mounting. Full channel configuration, parameter customizable.
<2>. The distortion waveform of input signal does not affect the measurement accuracy
<3>. The input,output and power supply are isolated from each other.
<4>. Standard 35mm DIN rail independent mounting. Full channel configuration, parameter customizable.
<5>
(1) 0.5-stage three-phase four-wire active power transmitter
Input nominal current: 5A:
Input nominal voltage: 63.5 V;
Input nominal power: 952.5 W;;
Input signal frequency: 50 + 5Hz
Output range: 4mA-20mA
Corresponding to 0-952.5 W;
Auxiliary power supply: AC220V;
Type selection: N3-WD-3S-555A4BN
<6>
0.2-stage three-phase four-wire active power transmitter
Input nominal current: 5A
Input nominal voltage: 220V;
Nominal input power: 3300W;
Input signal frequency: 50 ± 5Hz;
Output range: -10V - 0 ~ 10V
Corresponding to -3300W ~ 0 ~ 3300W;
Auxiliary power supply: AC I00V:
Specification：
N3 series Active power transmitter
|
Technical parameters
|
Performance index
|
|
Grade index
|
Grade 0.2 Grade 0.5
|
|
Use ambient temperature
|
0 ~ + 45 ℃ RH ≤ 93%
|
|
Limit working environment temperature
|
-10 ℃-+ 60 ℃
|
|
Temperature coefficient
|
0 ~ + 60 ℃ ≤ 150 ppm/℃
|
|
Response time
|
≤ 400ms; Fast ≤ 500 μ s
|
|
Full-scale adjustment range
|
≥20%
|
|
Zero adjustment range
|
≥10%
|
|
Power consumption
|
AC ≤5VA,DC≤3VA
|
|
Installation method
|
TS35 rail
|
|
Output Signal
|
4-20mA;;0-5V
|
|
Auxiliary power supply
|
AC220V 15%、AC110V+15% (50Hz)
|
|
|
DC220V+10%,DC110V+10%,DC48V:10%,DC24V+10
|
