Quick Details
-
Product Weight（kg）:
-
0.12
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
banqcn
-
Connection Mode:
-
MANUAL
-
Product name:
-

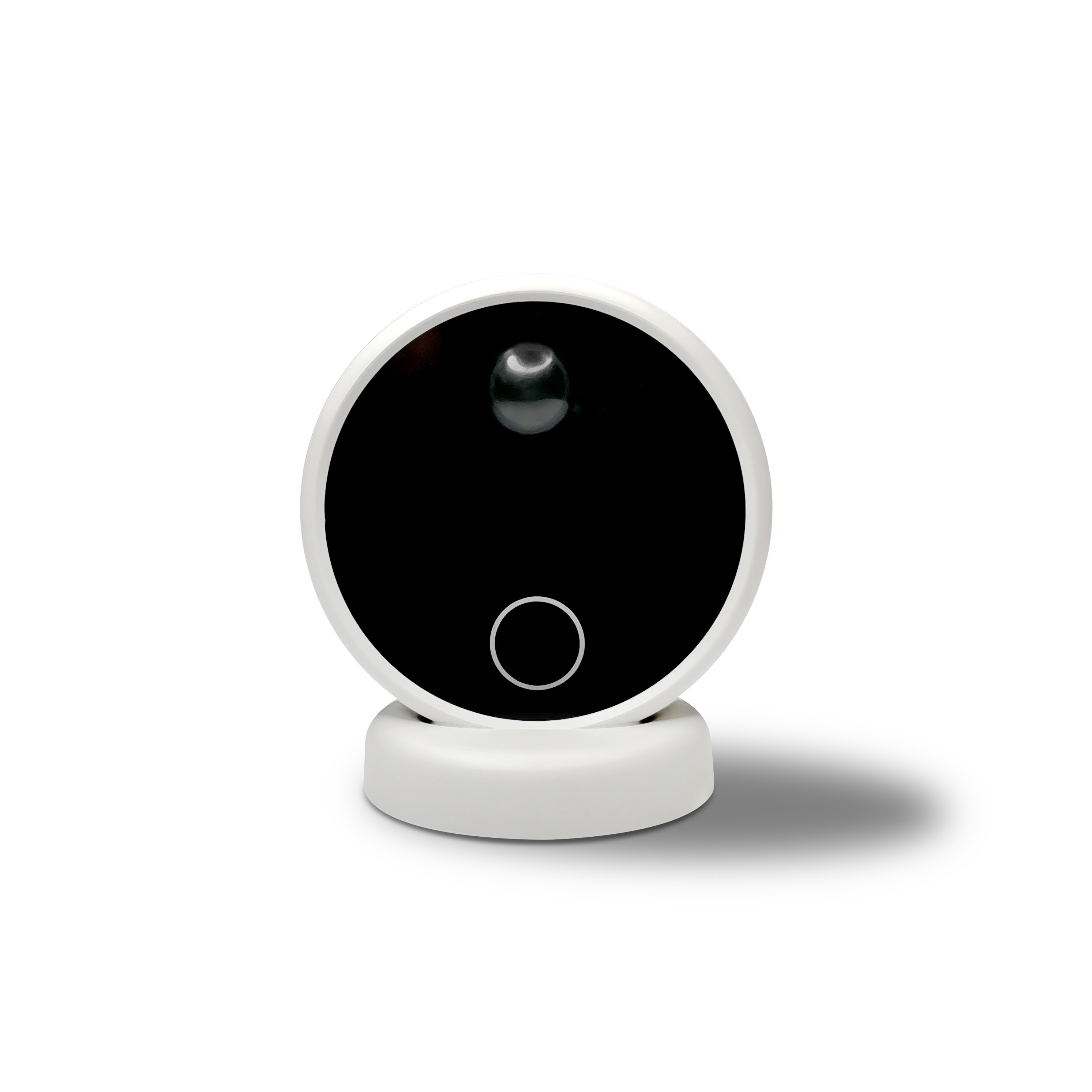

Wireless Touch&PIR Sensor Switch
-
Keyword:
-
ON/OFF & dimming;PIR sensor
-
Operating Voltage:
-
12-24V DC
-
Working Current:
-
<7.0mA
-
Output Signal:
-
RF 2.4GHz
-
Application:
-
cabinet light
-
Material:
-
ABS+PC
-
Dimming:
-
10%-100%
-
Remote distance:
-
30meter
-
Mounting Type:
-
Remote control with magnetic design and adhesive-fixed base
Quick Details
-
Warranty(Year):
-
3-Year
-
Type:
-
Wireless Touch&PIR Sensor Switch
-
Luminous Efficacy(lm/w):
-
0
-
Product Weight（kg）:
-
0.12
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
banqcn
-
Connection Mode:
-
MANUAL
-
Product name:
-
Wireless Touch&PIR Sensor Switch
-
Keyword:
-
ON/OFF & dimming;PIR sensor
-
Operating Voltage:
-
12-24V DC
-
Working Current:
-
<7.0mA
-
Output Signal:
-
RF 2.4GHz
-
Application:
-
cabinet light
-
Material:
-
ABS+PC
-
Dimming:
-
10%-100%
-
Remote distance:
-
30meter
-
Mounting Type:
-
Remote control with magnetic design and adhesive-fixed base
Product Description
|
Install Method
|
Surface mounted
|
|
Product Function
|
ON/OFF & dimming;PIR sensor(off after 3mins); Body sensing function runs after Turn off light in touch sensor mode for 15s
|
|
Remote Distance
|
30m(Barrier-free space)
|
|
Working Voltage
|
3V DC (CR2450)
|
|
Working Current
|
<7.0mA
|
|
Standby Current
|
<14.0uA
|
|
Standby Time
|
2 years
|
|
Output Signal
|
RF 2.4GHZ
|
|
Working Temp
|
-10 ℃ — 40℃
|
|
Shell Material
|
ABS+PC
|
|
Warranty
|
3years
|
|
Product Dimensions
|
52.5x48.3x22mm
|
|
Mounting Type
|
Remote control with magnetic design and
adhesive-fixed base |
Matching & Delete mode
Matching mode 1:
Powered on the receiver , the led indicator will stay 20s , quickly long pressing the Match key 5s on the remote control,the led
indicator of the receiver fastflash 3 time and the led bar fast flash one time synchronously,means match is successful
Matching mode 2:
Press and hold the pairing key of receiver for 5s the led indicator will stay 20s, quickly long pressing the match key for 5s on
the remote controller , the led indicator of the receiver fast flash 3 time and the led bar fast flash one time synchronously,means
mach is successful
Powered on the receiver , the led indicator will stay 20s , quickly long pressing the Match key 5s on the remote control,the led
indicator of the receiver fastflash 3 time and the led bar fast flash one time synchronously,means match is successful
Matching mode 2:
Press and hold the pairing key of receiver for 5s the led indicator will stay 20s, quickly long pressing the match key for 5s on
the remote controller , the led indicator of the receiver fast flash 3 time and the led bar fast flash one time synchronously,means
mach is successful
Delete mode 1:
Remote control
Quickly short Press match key on the remote control 5 times,the led indicator will flash 3 times quickly,and the light bar will
flash 3 times synchronously to indicate successful code clearing
Delete mode 2:
Receiver
Quickly short press the pairing key of the receiver 3 times, the led indicator flash 3 times, and the light bar synchronously
flashes 3 times means all matched remotes were deleted
Remote control
Quickly short Press match key on the remote control 5 times,the led indicator will flash 3 times quickly,and the light bar will
flash 3 times synchronously to indicate successful code clearing
Delete mode 2:
Receiver
Quickly short press the pairing key of the receiver 3 times, the led indicator flash 3 times, and the light bar synchronously
flashes 3 times means all matched remotes were deleted
