Quick Details
-
Weight:
-
23000 KG
-
Marketing Type:
-
New Product 2023
-
Drilling Diameter:
-
1020mm
-
Drilling Depth:
-
Max.60m
-
Mobility:
-
yes
-
Engine rated power:
-
250/2200KW
-
Maximum drag/feed force:
-
680KN
-
Maximum torque of power head:
-
27000N.n
-
Power head speed:
-
100r/min
-
Moving speed of power head:
-
30m/min
-
Loading capacity:
-
4t m
-
Max inclination angle:
-
18°
-
Max pressure:
-
10MPa
-
Maximum mud flow:
-
600L/min
-
Max backreamer diameter:
-
1000mm
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
11350*2800*3000mm
-
Weight:
-
23000 KG
-
Marketing Type:
-
New Product 2023
-
Drilling Diameter:
-
1020mm
-
Drilling Depth:
-
Max.60m
-
Mobility:
-
yes
-
Engine rated power:
-
250/2200KW
-
Maximum drag/feed force:
-
680KN
-
Maximum torque of power head:
-
27000N.n
-
Power head speed:
-
100r/min
-
Moving speed of power head:
-
30m/min
-
Loading capacity:
-
4t m
-
Max inclination angle:
-
18°
-
Max pressure:
-
10MPa
-
Maximum mud flow:
-
600L/min
-
Max backreamer diameter:
-
1000mm
Contact Way
Alune Xie —— Sales Manager
Mobile/Wechat/WhatsApp: +86 193-1332-9653
Email: alune@richmchn.com
Email: alune@richmchn.com
Products Description

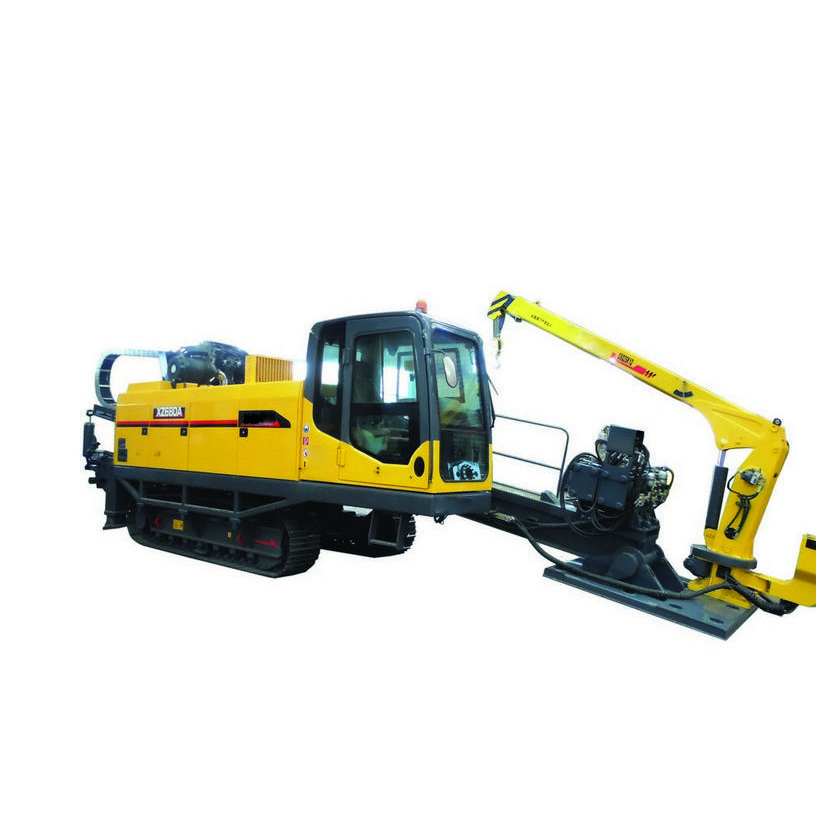

Horizontal Directional Drill XZ680
1. Hydraulic pilot control, provide comfortable operating performance and flexible regulation, first-class brand of hydraulic components to ensure the reliability of the machine hydraulic system.
2. Rack and pinion sliding, to ensure the stability of the carriage and the reliability of drive operational. Carriage floating, proprietary patented carriage floating, floating vice technology can greatly protect the drill pipe thread, the service life of the drill pipe 30% increase.
3. Double speed carriage, drilling, dragged back when running at low speed, ensure the smooth construction.The discharge pipe light back and forth, carriage can accelerate sliding, reduce the auxiliary time, improve work efficiency.
4. Host equipped with semi-automatic pipe loading and unloading device,hengyangmud pump,mud cleaning device,high efficiency and energy saving construction.
5. Support the diverse needs of customers, the machine can option configuration with the automatic (semi-automatic) full-automatic pipe loader, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing,mud throttling and other devices.
2. Rack and pinion sliding, to ensure the stability of the carriage and the reliability of drive operational. Carriage floating, proprietary patented carriage floating, floating vice technology can greatly protect the drill pipe thread, the service life of the drill pipe 30% increase.
3. Double speed carriage, drilling, dragged back when running at low speed, ensure the smooth construction.The discharge pipe light back and forth, carriage can accelerate sliding, reduce the auxiliary time, improve work efficiency.
4. Host equipped with semi-automatic pipe loading and unloading device,hengyangmud pump,mud cleaning device,high efficiency and energy saving construction.
5. Support the diverse needs of customers, the machine can option configuration with the automatic (semi-automatic) full-automatic pipe loader, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing,mud throttling and other devices.
Details Images
Product Paramenters
|
Project
|
Unit
|
Parameter
|
|
Rated power
|
(kW/r/min)
|
250/2200
|
|
Max thrust-pull force
|
(kN)
|
680
|
|
thrust-pull speed
|
(m/min)
|
30
|
|
Torque
|
(N·m)
|
27000
|
|
Max spindle speed
|
(r/min)
|
100
|
|
Max Flow rate
|
(L/min)
|
600
|
|
Max pressure
|
(MPa)
|
10
|
|
Pipe
|
(mm×m)
|
φ102×6
|
|
Lifting weight
|
(t)
|
2
|
|
Loading capacity
|
(t•m)
|
4
|
|
Max inclination angle
|
(°)
|
18
|
|
Max backreamer diameter
|
(mm)
|
φ1000
|
|
Weight
|
(t)
|
23
|
|
Dimension
|
(mm)
|
11350×2800×3000
|
