Quick Details
-

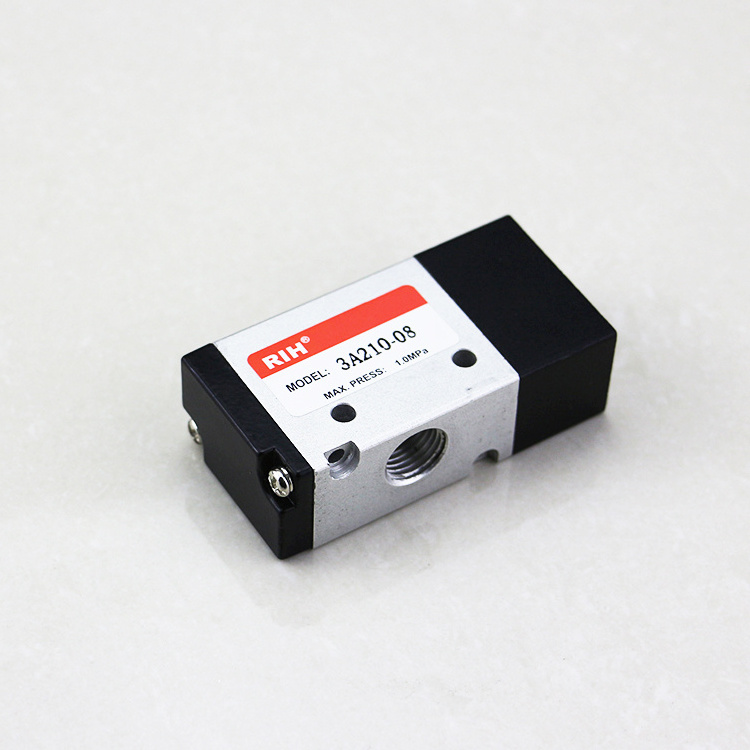

Model Number:
-
3A210-08
-
Brand Name:
-
RIH
-
Working Pressure:
-
0.15-0.8Mpa
-
Motion Pattern:
-
Inner Guide Type
-
Working Medium:
-
40 Micron Filtered Air
-
Operating Temperature:
-
5~50℃
-
Electrical Entry:
-
Lead Wire or Connector type
-
Position and Way NO.:
-
Two-position Three-way
-
Connection:
-
Female Thread
-
Product Name:
-
Pneumatic control valve
-
Certification:
-
CE
Quick Details
-
Port Size:
-
1/4''
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
3A210-08
-
Brand Name:
-
RIH
-
Working Pressure:
-
0.15-0.8Mpa
-
Motion Pattern:
-
Inner Guide Type
-
Working Medium:
-
40 Micron Filtered Air
-
Operating Temperature:
-
5~50℃
-
Electrical Entry:
-
Lead Wire or Connector type
-
Position and Way NO.:
-
Two-position Three-way
-
Connection:
-
Female Thread
-
Product Name:
-
Pneumatic control valve
-
Certification:
-
CE
Banner
1. Features
* Good tightness,sensitive reaction;
* Three kinds of central function for your choice for 3 ports valves;
* Internal hole adopts special processing technology,which has little attrition friction,low star pressure and long service life ;
* No need to add oil for lubrication;
* Manifold is available,can be integrated valve group with the base to save installation space;
* Standard voltage grades are optional.
* Three kinds of central function for your choice for 3 ports valves;
* Internal hole adopts special processing technology,which has little attrition friction,low star pressure and long service life ;
* No need to add oil for lubrication;
* Manifold is available,can be integrated valve group with the base to save installation space;
* Standard voltage grades are optional.
2. Specification:
|
Model
|
3A210-06
|
3A220-06
|
3A210-08
|
3A220-08
|
|||
|
Position Number
|
3 Ports 2 Position
|
|
|
|
|||
|
Effective Sectional Area
|
14mm²(CV=0.78)
|
|
16mm²(CV=0.89)
|
|
|||
|
Port Size
|
Inlet=Outlet=G1/8''
|
|
Inlet=Outlet=G1/4''
|
|
|||
|
Working Medium
|
40μm Filtered Air
|
|
|
|
|||
|
Action Style
|
Exterior Control
|
|
|
|
|||
|
Working Pressure
|
0.15~0.8MPA
|
|
|
|
|||
|
Max. Pressure Resistance
|
1.2MPA
|
|
|
|
|||
|
Ambient Temperature
|
-5~60℃(23~140°F)
|
|
|
|
|||
|
Material of valve body
|
Aluminum Alloy
|
|
|
|
|||
|
Frequency
|
5/s
|
|
|
|
|||
|
Lubrication
|
No Need
|
|
|
|
|||
