Quick Details
-
Function one:
-
Faceting & Polishing
-
With:
-
Faceting hand
-
Speed of Mainshaft:
-
2300 to 2800 r/min
-
Motor Speed:
-
1350 r/min
-
Motor Power:
-
170v to 180V
-
warranty:
-
one year
-
Input Power:
-
AC 220V, 50-60Hz
-
Gross Weight:
-
25kg
Quick Details
-
Brand Name:
-
Fable
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
FJM-2014A
-
Function one:
-
Faceting & Polishing
-
With:
-
Faceting hand
-
Speed of Mainshaft:
-
2300 to 2800 r/min
-
Motor Speed:
-
1350 r/min
-
Motor Power:
-
170v to 180V
-
warranty:
-
one year
-
Input Power:
-
AC 220V, 50-60Hz
-
Gross Weight:
-
25kg
Product Description

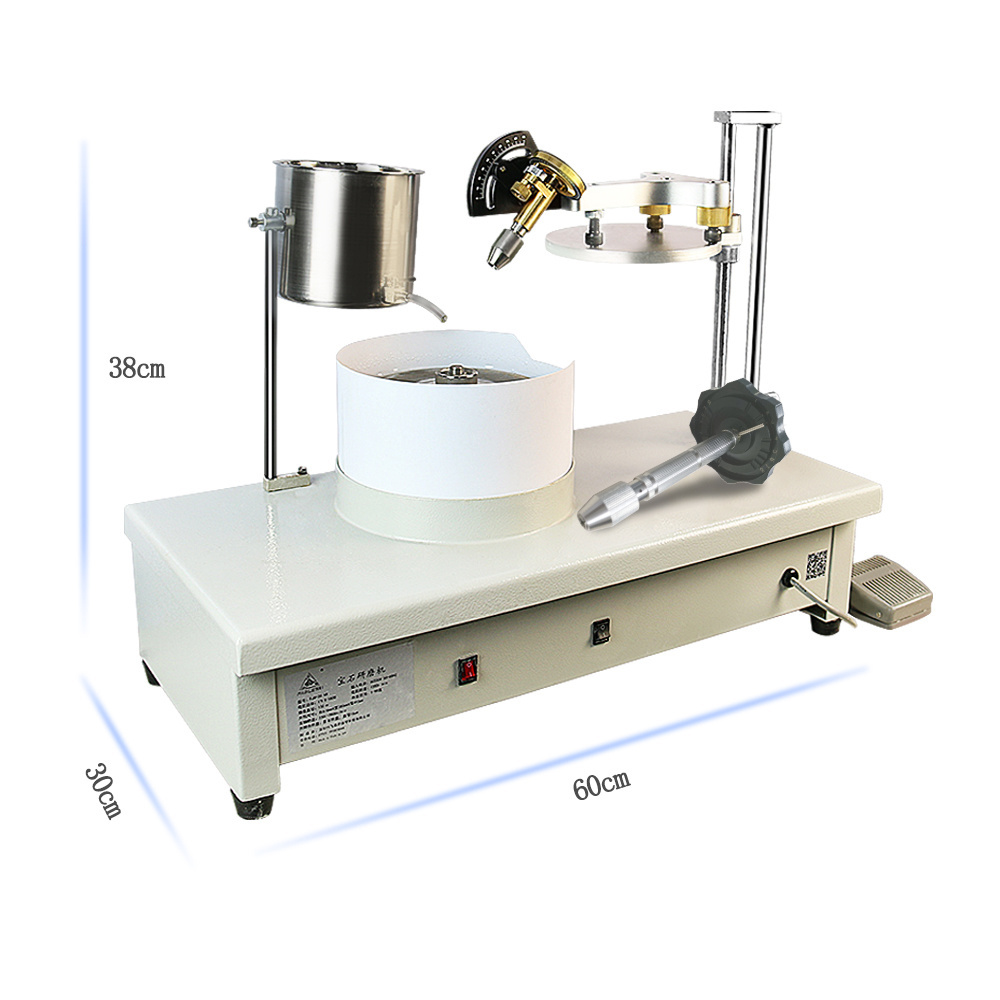

Fable Lapidary Machine With The Function of Faceting And Polishing the Gemstone
used for gem faceting processing and mineral Processing sample faceting, the structure is compact, reasonable coordination, in the case of high-speed operation, with smooth operation, good heat dissipation function, low noise advantages.
Specifications:
1. Main functions: Faceting and Polishing the Gemstone.
2. Angle range: 0-90 degrees;
3. The drainage hole has the function of anti-leakage stone.
4. To Faceting the gemstone with hardness up to 9.
5. Equipped with Faceting Hand, wheels Index: 96 & 64,with Angle lock knob,easy to operate. 6. Equipped with Fable High Quality Black Exquisite octangle Hand,share lifting platform with faceting hand
7. Motor Power:170-180W.
8. Motor Speed: 1350r/min.
9. Speed of Mainshaft: 2300-2800r/min.
10. Faceting Disc Dia:150mm.
11. Input power:AC220V, 50-60Hz.
12. Lifting platform With rounded tray and it's Dia. is 160 mm; 13. With the foot control switch only, 14. Size : 600×300×380mm.packing size:750x380x400 mm;
15: Accesories. *diamond disc x 3( 400#; 800#; 1200#);Zinc disc x 1; dop sticks x 10;dop worktable x 1,dop plate x 1, transfer dop x 1,Folding magnifier x1,Dop Wax x 1, dop stick insert plate x 1;Pliers x 1,Wrench x 1,
1. Main functions: Faceting and Polishing the Gemstone.
2. Angle range: 0-90 degrees;
3. The drainage hole has the function of anti-leakage stone.
4. To Faceting the gemstone with hardness up to 9.
5. Equipped with Faceting Hand, wheels Index: 96 & 64,with Angle lock knob,easy to operate. 6. Equipped with Fable High Quality Black Exquisite octangle Hand,share lifting platform with faceting hand
7. Motor Power:170-180W.
8. Motor Speed: 1350r/min.
9. Speed of Mainshaft: 2300-2800r/min.
10. Faceting Disc Dia:150mm.
11. Input power:AC220V, 50-60Hz.
12. Lifting platform With rounded tray and it's Dia. is 160 mm; 13. With the foot control switch only, 14. Size : 600×300×380mm.packing size:750x380x400 mm;
15: Accesories. *diamond disc x 3( 400#; 800#; 1200#);Zinc disc x 1; dop sticks x 10;dop worktable x 1,dop plate x 1, transfer dop x 1,Folding magnifier x1,Dop Wax x 1, dop stick insert plate x 1;Pliers x 1,Wrench x 1,
