Quick Details
-
Brand Name:
-
huadian
-
Product name:
-
Container Corner
-
Material:
-
Special steel casting
-
Service:
-
24 hours online
-
Standard:
-
ISO1161
-
Size:
-
178*162*118mm
-
Surface treatment:
-
Painting
-
OEM:
-
acceptable
-
Weight:
-
88kg/set
-
Packing:
-
Customized Packing
-
Usage:
-
container
Quick Details
-
Type:
-
Reefer Container
-
Capacity:
-
other
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
huadian
-
Product name:
-
Container Corner
-
Material:
-
Special steel casting
-
Service:
-
24 hours online
-
Standard:
-
ISO1161
-
Size:
-
178*162*118mm
-
Surface treatment:
-
Painting
-
OEM:
-
acceptable
-
Weight:
-
88kg/set
-
Packing:
-
Customized Packing
-
Usage:
-
container
Products Description
|

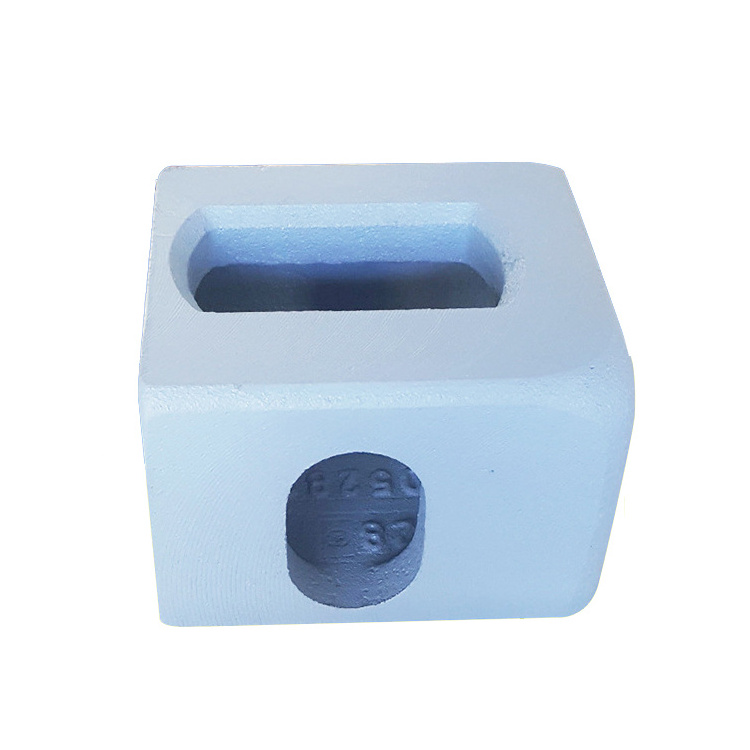

Shipping Container Corner Castings
|
|
|
|
Standard
|
ISO1161
|
|
|
Size
|
178*162*118mm；7.01*2.44*4.65 inch
|
|
|
Type
|
TL, TR, BL, BR; 1 set includes 2 pcs of TL, 2 pcs of TR, 2 pcs of BL and 2 pcs of BR.
|
|
|
Material
|
JIS SCW480 CAST STEEL
|
|
|
Weight
|
11kg/pc, 88kg/set; 24.7lbs/pc, 197.4lbs/set
|
|
|
Application
|
20', 40' standard containers
|
|
|
Package
|
Pallets: 70*70*70cm, 100 pcs loaded max.; 250 sets loaded max. in one 20' container
|
|
Container corner casting are the key element to the structural maneuverability of shipping containers, they allow shipping
containers to not only be able to be locked together both horizontally and vertically.
The corner casting contains TL, TR, BL BR, which are casted with heat (batch) number accordingly.
containers to not only be able to be locked together both horizontally and vertically.
The corner casting contains TL, TR, BL BR, which are casted with heat (batch) number accordingly.
Product name:
container corner parts Specification: 178 * 162 * 118
Material: 304 stainless steel
Weight: 11kg/ piece Product
Description: Angle piece each set of 8, the model is the lower corner piece A, B; Top corner pieces C, D, E, F. (where C and E are common, D and F are common) A is the bottom two and C is the top one B is 2 on the bottom left and D is 1 on the top left E is the top right one F is the top left one
In addition: the arc of the installation Angle piece is outside, and the holes on three sides are also outside. The surface
without holes is connected with the container.
Usage: used to fix each corner of the box, dry cargo container, refrigerated container, folding container, open top container,container mobile room. A 20-foot container needs A set of 8 container corners, including A right door, B left door, C door right top, D door left top, E front left top, F front right top.
Material: 304 stainless steel
Weight: 11kg/ piece Product
Description: Angle piece each set of 8, the model is the lower corner piece A, B; Top corner pieces C, D, E, F. (where C and E are common, D and F are common) A is the bottom two and C is the top one B is 2 on the bottom left and D is 1 on the top left E is the top right one F is the top left one
In addition: the arc of the installation Angle piece is outside, and the holes on three sides are also outside. The surface
without holes is connected with the container.
Usage: used to fix each corner of the box, dry cargo container, refrigerated container, folding container, open top container,container mobile room. A 20-foot container needs A set of 8 container corners, including A right door, B left door, C door right top, D door left top, E front left top, F front right top.
