Quick Details
-
Power (kW):
-
11
-
Range of Spindle Speed(r.p.m):
-
1 - 5800 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
LPMIE
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
4200x1250 x2700
-
Weight (KG):
-
1000 KG
-
function:
-
powder grinding machine
Quick Details
-
Output (kg/h):
-
200 - 1000 kg/h
-
Feeding Size (mm):
-
1 - 10 mm
-
Output Size (mesh):
-
120 - 300 mesh
-
Power (kW):
-
11
-
Range of Spindle Speed(r.p.m):
-
1 - 5800 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
LPMIE
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
4200x1250 x2700
-
Weight (KG):
-
1000 KG
-
function:
-
powder grinding machine

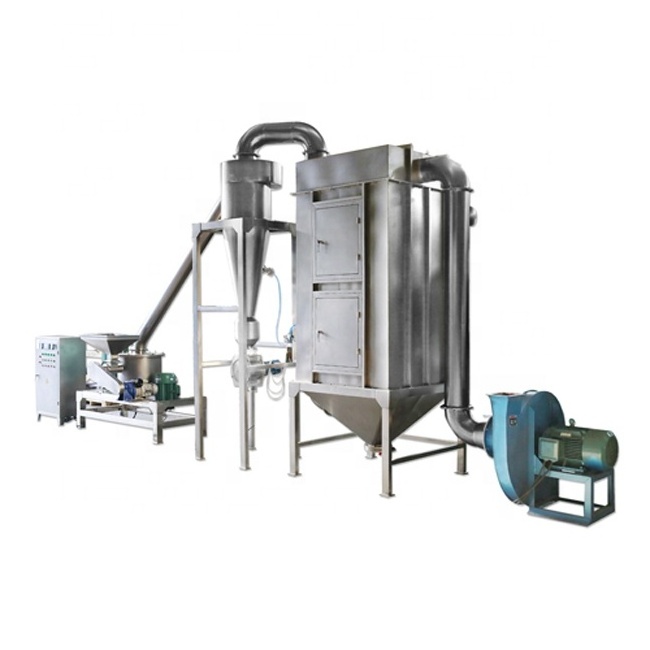

Ginger sugar chili turmeric leaf crusher milling machine ultra fine powder grinding machine
This machine is consists of three parts of the main machine, auxiliary machine and electrical control box, with the performance of winnowing, no screen, uniform size and continuous production.
The main machine temperature do not rise when working, can grind various heat sensitive material.
The comprehensive performance has reached international advanced level, widely used in chemical and food industry, can grind the materials such as: herb, plant root and stem, corn, rice, pepper, lettuce, soy, garlic, star anise, cinnamon, dehydrated vegetables, hawthorn, dried ginger, sugar, saccharin, dried shrimps, pumpkin powder and seasoning, etc.
Working principle:
Material from the hopper through screw conveyor into the crushing chamber, shattered by high-speed rotation cutting blade, transported via the negative pressure air method transport the material into cyclone, bag type dust collector, the discharge material meet product requirement.
Parameters:
|
Model |
WFJ-15 |
WFJ-20 |
WFJ-30 |
WFJ-60 |
WFJ-80 |
|
Production Capacity (kg/h) |
10-100 |
50-200 |
50-300 |
100-1200 |
100-1600 |
|
Inlet material size (mm) |
<10 |
<10 |
<10 |
<12 |
<12 |
|
Outlet powder size (mesh) |
80-320 |
80-320 |
80-320 |
80-320 |
80-320 |
|
Rotary speed (rpm) |
5800 |
4200 |
3800 |
3200 |
2800 |
|
Total power (KW) |
13.75 |
22.15 |
46 |
84.15 |
100.4 |
|
Machine dimension (mm) |
4200x1250 x2700 |
4700x1250 x2900 |
6640x1300 x3960 |
7500x2300 x4530 |
8200x2500 x4600 |
|
Weight (kg) |
850 |
850 |
960 |
3200 |
3200 |
Packaging:
Whole machine and every parts wrapped by plastic film for dusting-proof.
Packed in export standard wooden case with pallet, conducive to forklift handling.
Shipping:
Shipping method: by sea, by air, by international express company.
Delivery time: 30-45 days after order confirm.
Forwarder: We have shipping forwarder agent for sending the goods to all over the world, can arrange shippment to destination port and to door for customer. We also accept forwarder agent of customer.
