Quick Details
-
Certification:
-
CE
-
Model Number:
-
16/18/20/25/32um battery separator film
-
Place of Origin:
-
Shandong, China
-
Weight:
-
2kg
-
Electric Energy:
-
0 Wh
-
Product name:
-
Battery Polyethylene Separator
-
Color:
-
Ivory-white
-
Payment:
-
Credit Card.Paypal.TT.Escrow.Western Union.Alibaba Trade Assurance
-
Certificate:
-
CE/RoHS/ISO9001
-
Width:
-
As your demands
-
Thickness:
-
16/18/20/25/32um or Celgard separator film
-
Type:
-
Li-ion or Celgard separator film
-
Quality:
-
Excellent
Quick Details
-
Application:
-
lithium ion battery materials, Used in Lithium ion battery production or lab. research
-
Battery Size:
-
3.7v
-
Brand Name:
-
AME Li-ion battery separator film
-
Certification:
-
CE
-
Model Number:
-
16/18/20/25/32um battery separator film
-
Place of Origin:
-
Shandong, China
-
Weight:
-
2kg
-
Electric Energy:
-
0 Wh
-
Product name:
-
Battery Polyethylene Separator
-
Color:
-
Ivory-white
-
Payment:
-
Credit Card.Paypal.TT.Escrow.Western Union.Alibaba Trade Assurance
-
Certificate:
-
CE/RoHS/ISO9001
-
Width:
-
As your demands
-
Thickness:
-
16/18/20/25/32um or Celgard separator film
-
Type:
-
Li-ion or Celgard separator film
-
Quality:
-
Excellent

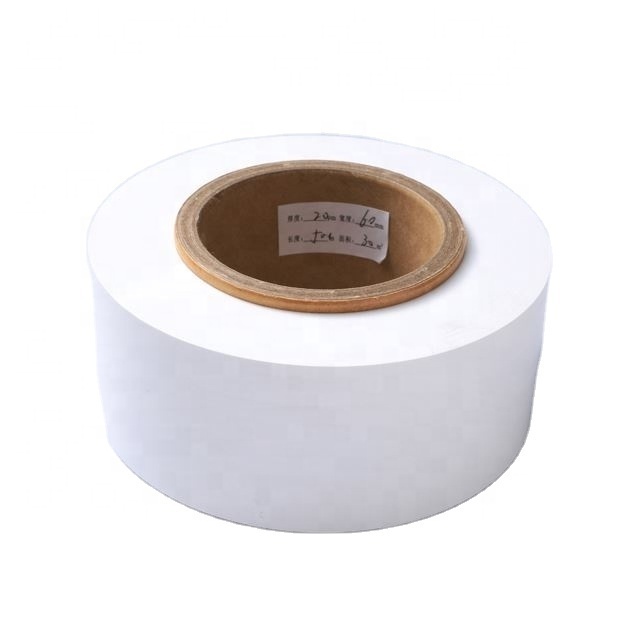

PP/PE Separator Film For Lithium Ion Battery Material
Specification
|
Term
|
Unit
|
Inspection Value
|
Inspection Value
|
Inspection Value
|
Inspection Value
|
|
Appearance
|
|
Ivory-White
|
Ivory-White
|
Ivory-White
|
Ivory-White
|
|
Thickness
|
Micron
|
16±2
|
18±2
|
20±2
|
25±2
|
|
Gas Permeability
|
Sec/100ml
|
350-550
|
350-500
|
350-550
|
350-650
|
|
Porosity
|
%
|
38-44
|
38-44
|
38-44
|
38-44
|
|
Puncturing Strength
|
G
|
＞300
|
＞300
|
＞300
|
＞300
|
|
Tensile Strength MD
|
Mpa
|
＞90
|
＞90
|
＞90
|
＞90
|
|
Tensile Strength TD
|
Mpa
|
＞100
|
＞100
|
＞100
|
＞100
|
|
Film Close Temperature
|
℃
|
≤135
|
≤135
|
≤135
|
≤135
|
|
Film Break Temperature
|
℃
|
≥147
|
≥147
|
≥147
|
≥147
|
|
90℃ Heat Shrink MD
|
%
|
≤3.5
|
≤3.5
|
≤3.5
|
≤3.5
|
|
90℃ Heat Shrink TD
|
%
|
≤2
|
≤2
|
≤2
|
≤2
|
|
105℃ Heat Shrink MD
|
%
|
≤5
|
≤5
|
≤5
|
≤5
|
|
105℃ Heat Shrink TD
|
%
|
≤3
|
≤3
|
≤3
|
≤3
|
|
120℃ Heat Shrink MD
|
%
|
≤20
|
≤20
|
≤20
|
≤20
|
|
120℃ Heat Shrink TD
|
%
|
≤15
|
≤15
|
≤15
|
≤15
|
FAQ
1.When can I get the quote?
We usually quote within 48 hours after we get your inquiry.
2.Can you do the design for us?
We can specially customize according to your technical requests.
3.What is your terms of delivery?
We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
4.what about the after-sale service?
A years warranty and lifetime free technical support.
5.Can we visit your factory?
Yes,of course.Welcome to China to visit our factory.
We usually quote within 48 hours after we get your inquiry.
2.Can you do the design for us?
We can specially customize according to your technical requests.
3.What is your terms of delivery?
We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
4.what about the after-sale service?
A years warranty and lifetime free technical support.
5.Can we visit your factory?
Yes,of course.Welcome to China to visit our factory.
