Quick Details
-
Marketing Type:
-
New Product 2023
-
Core Components:
-
laser source
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Questt
-
Dimension(L*W*H):
-
500mm*300mm*650mm
-
Weight (KG):
-
33 KG
-
Material:
-
Metal / Coil
-
Application:
-
rust removal/dust removal
-
working Speed:
-
0-7000mm/s
-
Laser wavelength:
-
1.064um
-
materials:
-
Rust Oxide Painting Coating
-
Use:
-
Derusting
-
Laser source type:
-
Mopa Laser
-
Cleaning materials:
-
Metal Rust Oil Dust Coating
-
After-sales Service Provided:
-
Online support
Quick Details
-
Power:
-
100W, 50W, 20W
-
Laser Type:
-
Fiber Laser
-
Laser Source Brand:
-
JPT
-
Marketing Type:
-
New Product 2023
-
Core Components:
-
laser source
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Questt
-
Dimension(L*W*H):
-
500mm*300mm*650mm
-
Weight (KG):
-
33 KG
-
Material:
-
Metal / Coil
-
Application:
-
rust removal/dust removal
-
working Speed:
-
0-7000mm/s
-
Laser wavelength:
-
1.064um
-
materials:
-
Rust Oxide Painting Coating
-
Use:
-
Derusting
-
Laser source type:
-
Mopa Laser
-
Cleaning materials:
-
Metal Rust Oil Dust Coating
-
After-sales Service Provided:
-
Online support
Products Description
Introduction

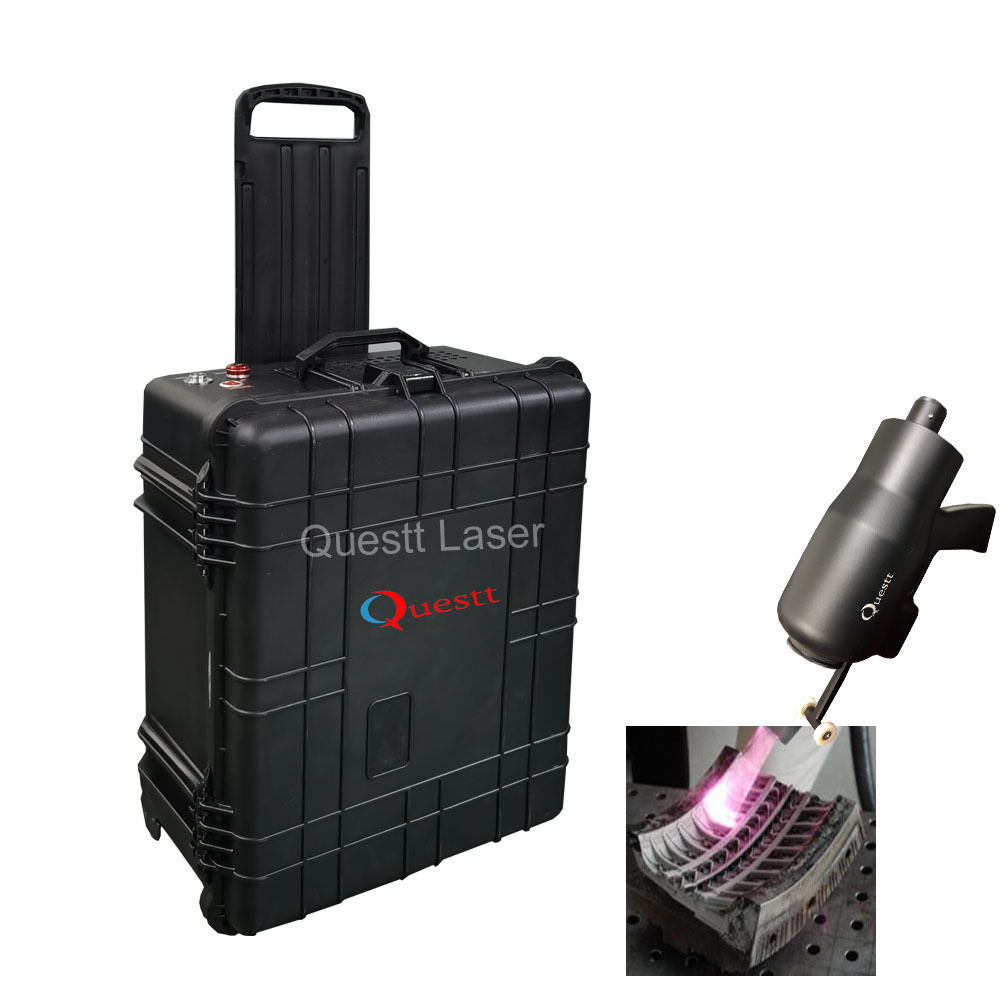

QA-LC100S Laser rust removal equipment is a suitcase type machine.The outlook is the same as a travel case , which is very easy to take along and move. Also the best demo machine to fly with you on airplane. We also approved to add Phone APP control system. It can remove the rust, paint, grease, dirt, coating, residue, oxide layer, and other target materials with high efficiency, high performance, low cost and without harm to the base material..
Different types laser cleaning machine
1000w 1500w 2000w 3000w continuous laser cleaning machine
50w 100w pulse backapck laser cleaning machine
200w 300w pulse laser cleaning machine
200w 300w pulse water chiller laser cleaning machine
500w 1000w pulse laser cleaning machine
robot automative laser cleaning machine with different powers
Equipment Performance
1.Two-dimensional laser cleaning with dual axis scanner, it is not easy to damage the substrate (Optional)
2.Precision cleaning, realized selective cleaning of precise location and accurate size
3.No need any chemical cleaning liquid, no consumables, safety and environmental protection
4.Easy operation, realized automated cleaning by hand-held or robotic arm
5. Fast cleaning speed, high cleaning efficiency, saving time.
6. Stable laser cleaning system, almost no maintenance requirement
2.Precision cleaning, realized selective cleaning of precise location and accurate size
3.No need any chemical cleaning liquid, no consumables, safety and environmental protection
4.Easy operation, realized automated cleaning by hand-held or robotic arm
5. Fast cleaning speed, high cleaning efficiency, saving time.
6. Stable laser cleaning system, almost no maintenance requirement
Product Paramenters
|
Model
|
QA-LC50S
|
QA-LC100S
|
|
Laser source
|
Fiber
|
Fiber
|
|
Laser power
|
50W
|
100W
|
|
Fiber cable length
|
5m
|
5m
|
|
Laser wavelength
|
1064nm
|
1064nm
|
|
Pulse energy
|
1mJ
|
1.5 mJ
|
|
Pulse frequency
|
1-1000KHz
|
1-2000KHz
|
|
Cleaning speed
|
≤5 M²/Hour
|
≤12 M²/Hour
|
|
Cooling
|
Air cooling
|
Air cooling
|
|
Dimension
|
500*300*650mm
|
500*300*650mm
|
|
Packing
|
680x450x530mm
|
680x450x530mm
|
|
Net weight
|
29kg
|
33kg
|
|
Gross weight
|
34kg
|
38kg
|
|
Beam width
|
10-70mm
|
10-100mm
|
|
Optional
|
Manual
|
Manual
|
|
Temperature
|
5-40 ℃
|
5-40 ℃
|
|
Voltage
|
Single Phase AC 220V 4.5A
|
Single Phase AC 220V 4.5A
|
Samples
