Quick Details
-
Max. Spindle Speed (r.p.m):
-
2000 r.p.m
-
Width of bed (mm):
-
200 mm
-
Spindle Motor Power(kW):
-
2.5
-
Travel (X Axis)(mm):
-
400 mm
-
Travel (Z Axis)(mm):
-
300 mm
-
Positioning Accuracy (mm):
-
0.02
-
Repeatability (X/Y/Z) (mm):
-
0.001
-
Place of Origin:
-
Anhui, China
-
Dimension(L*W*H):
-
2662x2800x3550mm
-
Brand Name:
-
wmtcnc or Customized
-
Model Number:
-
CK5116
-
Voltage:
-
380V
-
Weight (KG):
-
13000
-
Marketing Type:
-
New Product 2022
-
CNC or Not:
-
CNC
-
Automatic Grade:
-
Automatic
-
After-sales Service Provided:
-
Overseas service center available
-
Table diameter:
-
1400mm
-
Vertical lathe machine:
-
Single column vertical lathe
-
Weight:
-
9500kgs
-
Max. swing dia.:
-
1600mm
-
Range of spindle speed:
-
86rpm
-
Power:
-
30kw
-
Precision:
-
High precision machine
Quick Details
-
Type:
-
VERTICAL
-
Max. Length of Workpiece (mm):
-
1200
-
Year:
-
New
-
Max. Spindle Speed (r.p.m):
-
2000 r.p.m
-
Width of bed (mm):
-
200 mm
-
Spindle Motor Power(kW):
-
2.5
-
Travel (X Axis)(mm):
-
400 mm
-
Travel (Z Axis)(mm):
-
300 mm
-
Positioning Accuracy (mm):
-
0.02
-
Repeatability (X/Y/Z) (mm):
-
0.001
-
Place of Origin:
-
Anhui, China
-
Dimension(L*W*H):
-
2662x2800x3550mm
-
Brand Name:
-
wmtcnc or Customized
-
Model Number:
-
CK5116
-
Voltage:
-
380V
-
Weight (KG):
-
13000
-
Marketing Type:
-
New Product 2022
-
CNC or Not:
-
CNC
-
Automatic Grade:
-
Automatic
-
After-sales Service Provided:
-
Overseas service center available
-
Table diameter:
-
1400mm
-
Vertical lathe machine:
-
Single column vertical lathe
-
Weight:
-
9500kgs
-
Max. swing dia.:
-
1600mm
-
Range of spindle speed:
-
86rpm
-
Power:
-
30kw
-
Precision:
-
High precision machine
Product Description
Main Features:
1. Vertical CNC lathe machine with single column;
2. Rigid column and stable;
3. DRO optional;
4. Precise cutting for heavy metal parts.
|
Specification
|
C5116D
|
|
Table dia.
|
1400mm
|
|
Max. turning dia.
|
1600mm
|
|
Max. workpiece height
|
1000/1200/1400/1600mm
|
|
Max. workpiece weight
|
5t
|
|
Table speed range
|
5-160r/min
|
|
Table rotation speed step
|
16
|
|
Vertical toolpost feed range
|
0.8-86 r/min
|
|
Vertical side toolpost feed step
|
12
|
|
Horizontal travel of vertical toolpost
|
915mm
|
|
Vertical travel of vertical toolpost
|
800/1000mm
|
|
Horizontal travel of side toolpost
|
650mm
|
|
Vertical travel of side toolpost
|
1000mm
|
|
Crossam ram travel
|
850/1050/1250/1450mm
|
|
Tool bar section size(Lx W)
|
30x40mm
|
|
Main motor power
|
30kw
|
|
Feeding motor power
|
1.3/1.8kw
|
|
N.W
|
12.7t
|
|
Overall size(LXWXH)
|
2662x2800x3550mm
|

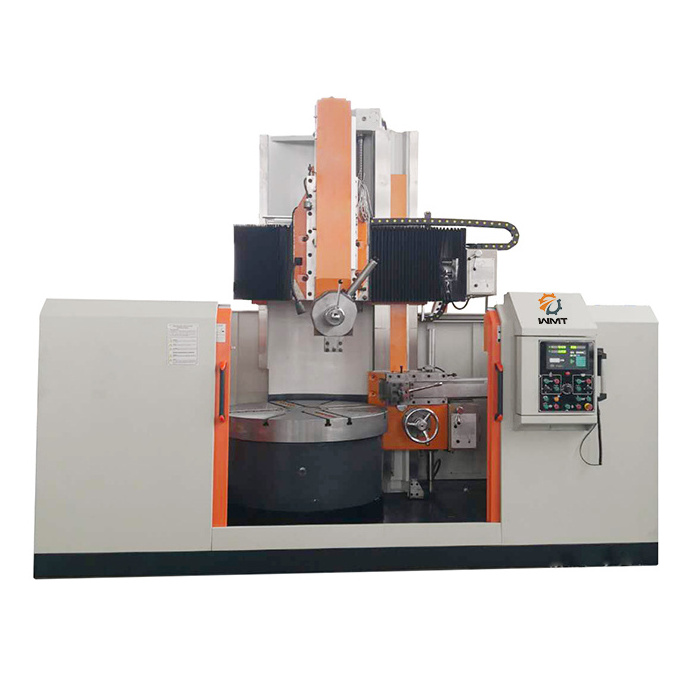

Detailed Images
