Quick Details
-
Brand Name:
-
ROADWAY
-
Product name:
-
Concrete Laser Screed(Boom type)
-
Usage:
-
Concrete Pavement Leveling
-
Engine Model:
-
Yanmar
-
Power:
-
35kW/3000r/min
-
Screed head Type:
-
Laser self-leveling
-
Arm length:
-
6000mm
-
Width:
-
3000mm
-
Paving type:
-
With auger
-
Exciting force:
-
3000N
-
Vibration frequency:
-
60Hz
Quick Details
-
Weight (KG):
-
6300
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ROADWAY
-
Product name:
-
Concrete Laser Screed(Boom type)
-
Usage:
-
Concrete Pavement Leveling
-
Engine Model:
-
Yanmar
-
Power:
-
35kW/3000r/min
-
Screed head Type:
-
Laser self-leveling
-
Arm length:
-
6000mm
-
Width:
-
3000mm
-
Paving type:
-
With auger
-
Exciting force:
-
3000N
-
Vibration frequency:
-
60Hz

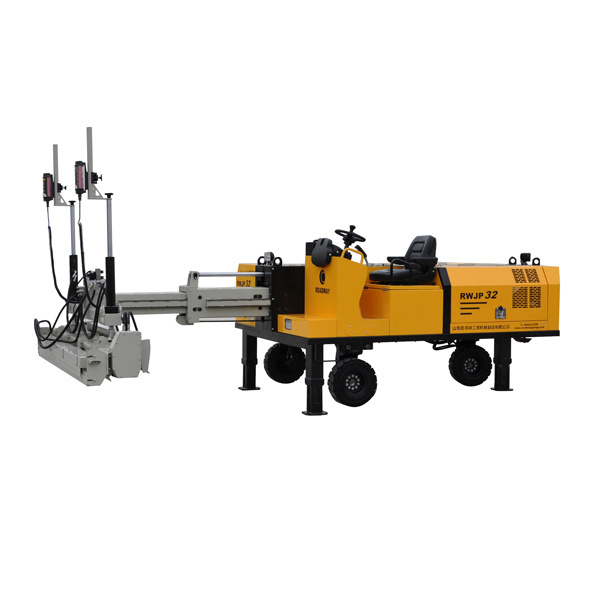

Concrete Laser Screed (Boom Type) RWJP32
|
Type |
RW JP32 |
||||
|
Engine |
|
||||
|
Model |
Yanmar
|
||||
|
Type |
Diesel engine,liquid cooled, 4 stroke, four cylinder
|
||||
|
Power |
35kW/3000r/min
|
||||
|
Lubricant L |
1.9L |
||||
|
Fuel consumption |
261g/kWh |
||||
|
Running device |
|
||||
|
Driving |
4 Hydraulic drive motor |
||||
|
Steering
|
Front wheel/4-wheel/Crab-shaped turn
|
||||
|
Wheel |
Antiskid tyre |
||||
|
Outrigger |
4 legs, self-leveling |
||||
|
Driving speed |
0-6km/h |
||||
|
Working speed |
20m² /min |
||||
|
Screed head |
|
||||
|
Type |
Laser self-leveling |
||||
|
Arm length |
6000mm |
||||
|
Width |
3000mm |
||||
|
Paving type |
With auger |
||||
|
Auger force |
Hydraulic motor |
||||
|
Exciting force |
3000N |
||||
|
Vibration frequency |
60Hz |
||||
|
Screed head control |
Ratio control |
||||
|
Screed head control |
Ratio control |
||||
|
Height of screed head |
400mm |
||||
|
Control accuracy |
± 1.5mm |
||||
|
Laser control system |
|
||||
|
Control type |
Microcomputer laser scan |
||||
|
Control effect |
Flat, slope or double slope |
||||
|
Operation mode |
|
||||
|
Chair position |
Ride-on forward type |
||||
|
Forward and reverse |
Handle control, stepless speed walking |
||||
|
Telescopic arm |
Handle control, stepless speed walking |
||||
|
Steering |
Hydraulic intelligent control
|
||||
|
Cleaning system |
|
||||
|
Power |
Hydraulic motor |
||||
|
The Max pressure of inlet |
7Mpa |
||||
|
Fuel tank volume |
100L |
||||
|
Hydraulic oil volume |
100L |
||||
|
Outline dimension |
5135x3510x2150mm |
||||
|
Weight |
|||||
