Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Traditional
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KONTY
-
Model Number:
-
SJL
-
Lift height:
-
4-20m
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, other
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
Hotel
-
Design Style:
-
Traditional
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KONTY
-
Model Number:
-
SJL
-
Lift height:
-
4-20m

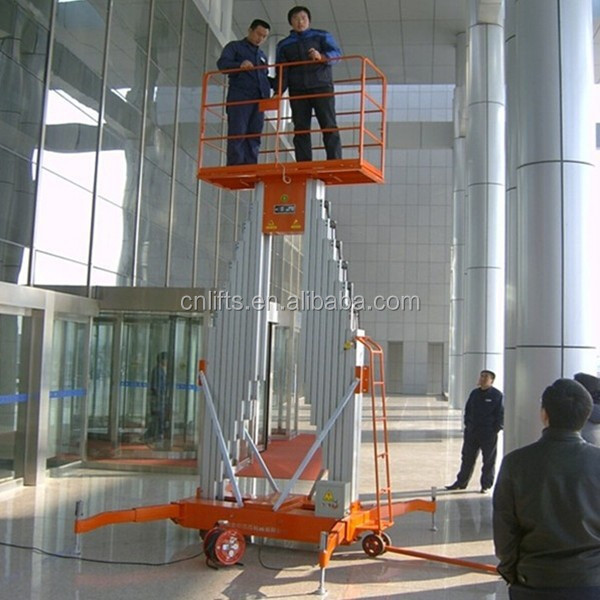

window cleaning suspended platform
2. The equipment takes up small spaces , light-weight, mobile flexible, looks beautiful.
3. Electrical control or manual pump control when the electricity is not available.
4. Two control panel: one is hand button, which may be placed in any position on the table railfor the
5. Easily pushed around to the designated sites.
6. Low energy consumption, no pollution, do no damage to the grounds.
7. The power sources can be 110V 220V 380V AC power, DC power, depending on the local power sources.
|
type |
dimension (mm) |
P latform size (mm) |
L oad capacity (kgs) |
P ower (kw) |
Lift height (m) |
|
SJL0.14(single) |
1100 x 850 x1 980 |
600 x 600 |
100 |
0.75 |
4 |
|
SJL0.1-6(single) |
1200 x 850 x 1980 |
600 x 600 |
100 |
0.75 |
6 |
|
SJL0.1-8(single) |
1300 x 850 x 1980 |
600 x 600 |
100 |
0.75 |
8 |
|
SJL0.110(single) |
1400 x 850 x 1980 |
600 x 600 |
100 |
0.75 |
10 |
|
SJL0.2-6(double) |
1300 x 900 x 1980 |
1200 x 600 |
200 |
1.5 |
6 |
|
SJL0.2-8(double) |
1400 x 900 x 1980 |
1200 x 600 |
200 |
1.5 |
8 |
|
SJL0.210(double) |
1900 x 1000 x 1980 |
1500 x 600 |
200 |
1.5 |
10 |
|
SJL0.212(double) |
2000 x 1000 x 1980 |
1550 x 600 |
200 |
1.5 |
12 |
|
SJL0.214(double) |
2000 x 1000 x 2280 |
1600 x 600 |
200 |
1.5 |
14 |
|
SJL0.216 (double) |
3000 x 1500 x 2200 |
1500 x 600 |
200 |
2.2 |
16 |
|
SJL0.2-14(four) |
2000 x 1500 x 2400 |
1600 x 900 |
250 |
2.2 |
14 |
|
SJL0.3-16(four) |
2500 x 1300 x 2400 |
1800 x 950 |
300 |
2.2 |
16 |
|
SJL0.3-18(four) |
2500 x 1300 x 3000 |
1800 x 950 |
300 |
2.2 |
18 |
|
SJL0.3-20(four) |
3000 x 1500 x 2200 |
1700 x 900 |
300 |
2.2 |
20 |
