- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
JY
-
Year:
-
2020
-
Voltage:
-
optional
-
Dimension(L*W*H):
-
1000x900x2900mm
-
Weight (T):
-
5000 T
-
Model Number:
-
JY
-
Motor Power (kw):
-
22 kw
-
Style:
-
Hydraulic Stamping Press
-
Structure:
-
Four Column Machine
-
Material:
-
Steel Material
-
After-sales Service Provided:
-
Online Support
-
Function:
-
Stamping Metal Product
-
Model:
-
Deep Punching Machine
-
Frame:
-
Integrate High Rigid Steel Frame
-
Item:
-
Hydraulic Forming Press Machine
-
Feature:
-
Hydroforming Press
-
Power souce:
-
Electricity Hydraulic Power
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Ejector Force (kN):
-
55
-
Return Force (kN):
-
5000 kN
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
JY
-
Year:
-
2020
-
Voltage:
-
optional
-
Dimension(L*W*H):
-
1000x900x2900mm
-
Weight (T):
-
5000 T
-
Model Number:
-
JY
-
Motor Power (kw):
-
22 kw
-
Style:
-
Hydraulic Stamping Press
-
Structure:
-
Four Column Machine
-
Material:
-
Steel Material
-
After-sales Service Provided:
-
Online Support
-
Function:
-
Stamping Metal Product
-
Model:
-
Deep Punching Machine
-
Frame:
-
Integrate High Rigid Steel Frame
-
Item:
-
Hydraulic Forming Press Machine
-
Feature:
-
Hydroforming Press
-
Power souce:
-
Electricity Hydraulic Power
Product Description
Steel Door Production Line Equipment
Main Equipments
Hydraulic door embossing press machine
Door frame automatic forming machine
Door plate transfer printing machine
Lamination Machine
Machine Details

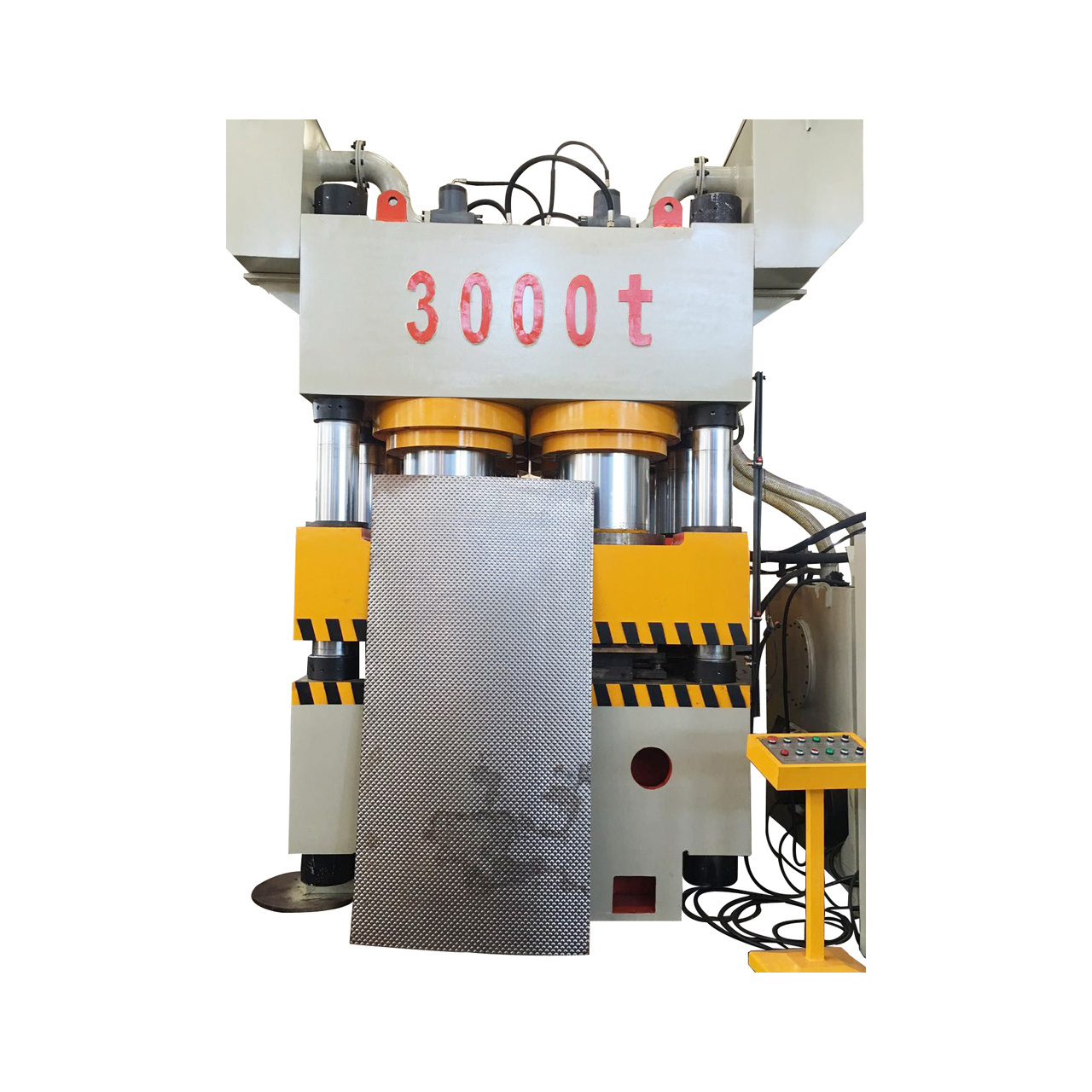

Hydraulic door embossing press machine
Upgrade door design effortlessly with our Hydraulic Embossing Press. Craft intricate patterns with ease, enhancing the appeal of any entrance. Explore our range for residential, commercial, or industrial spaces. Elevate aesthetics and leave a lasting impression with custom embossed doors. Experience innovation and precision in door manufacturing
Door frame automatic forming machine
Streamline door frame production with our Automatic Forming Machine. Precision-engineered for seamless shaping, it ensures efficient manufacturing of high-quality door frames. Boost productivity and quality in your operation today. Explore our advanced solution for door frame fabrication.
Door plate transfer printing machine
Upgrade your door plates with precision and ease using our Transfer Printing Machine. Effortlessly apply intricate designs for a stylish finish. Elevate your door aesthetics with our advanced printing solution. Explore now for flawless results.
Lamination machine
Transform surfaces effortlessly with our Lamination Machine. Achieve seamless, durable finishes for various materials. Elevate your projects with precision lamination. Explore our range for professional results every time.
Product Paramenters
|
Technical Parameter of Hydraulic Press Machine
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Type
|
Unit
|
63T
|
100T
|
160T
|
200T
|
315T
|
630T
|
1000T
|
2000T
|
|||||||||
|
Ejecting force
|
KN
|
100
|
200
|
250
|
400
|
630
|
1000
|
1200
|
2000
|
|||||||||
|
Nominal pressure
|
KN
|
630
|
1000
|
1600
|
2000
|
3150
|
6300
|
10000
|
20000
|
|||||||||
|
Slider Stroke
|
mm
|
500
|
500
|
500
|
700
|
800
|
900
|
900
|
1400
|
|||||||||
|
Max.opening height
|
mm
|
700
|
900
|
900
|
1120
|
1250
|
1500
|
1500
|
1600
|
|||||||||
|
Ejecting Stroke
|
mm
|
160
|
200
|
200
|
250
|
300
|
300
|
400
|
450
|
|||||||||
|
Power of motor
|
KW
|
5.5
|
7.5
|
15
|
18.5
|
22
|
45
|
68
|
134
|
|||||||||
|
Max.Working pressure
|
Mpa
|
25
|
26.2
|
26
|
25
|
25
|
26
|
26
|
27
|
|||||||||
|
Table size(F.B.)
|
mm
|
500
|
580
|
800
|
900
|
1200
|
1500
|
1600
|
2000
|
|||||||||
|
Table size(L.R.)
|
mm
|
500
|
710
|
800
|
900
|
1200
|
1500
|
1600
|
2800
|
|||||||||
|
Idle stroke
|
mm/s
|
76
|
100
|
100
|
100
|
＞100
|
＞100
|
＞100
|
＞100
|
|||||||||
|
Pressing
|
mm/s
|
10
|
8-15
|
8-15
|
8-15
|
8-15
|
10
|
12
|
10
|
|||||||||
|
Return
|
mm/s
|
60
|
60
|
60
|
70
|
70
|
65
|
80
|
＞75
|
|||||||||
|
Total Weight
|
T
|
2.5
|
4
|
7
|
12
|
15
|
38
|
48
|
145
|
|||||||||
Products Recommended
Our order and visitors
Since its establishment, Dalian J&Y Machinery Co., Ltd. has been adhering to the enterprise spirit of "pursuing excellence and exceeding expectations", insisting on improving user satisfaction and its own service level, receiving customers with high-level and convenient services, and devoting This kind of demand has won unanimous praise from customers.
