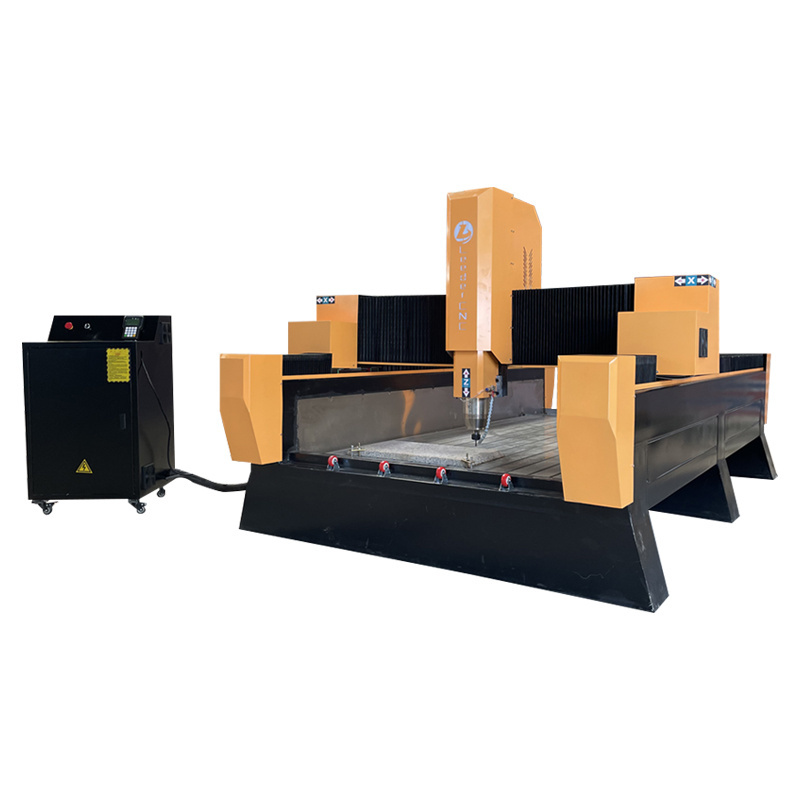

Quick Details
-
Applicable Industries:
-
Stone cutting
-
Production Capacity:
-
200sets/month
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LEEDER CNC
-
Voltage:
-
380/220v
-
Dimension(L*W*H):
-
4300mmx2100mmx1550mm
-
Weight:
-
1500 kg
-
Marketing Type:
-
New Product 2023
-
Spindle power:
-
5.5kw Water Cooling Spindle
-
Working area:
-
1500*3000mm
-
Keyword:
-
5.5kw Stone Cnc Carving Machine
-
Control system:
-
DSP Control System
-
Motor:
-
Stepper Motor
-
Guide Rail:
-
Taiwan Hiwin Square Guide Rail
-
Application:
-
Stone Marble Granite Quartz Sandstone
-
Spindle speed:
-
24000r/min
-
Transmission:
-
Ball Screw
-
Cutting depth:
-
70-125mm
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
5.5 KW
-
Cutting thickness (max):
-
100mm
-
Applicable Industries:
-
Stone cutting
-
Production Capacity:
-
200sets/month
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LEEDER CNC
-
Voltage:
-
380/220v
-
Dimension(L*W*H):
-
4300mmx2100mmx1550mm
-
Weight:
-
1500 kg
-
Marketing Type:
-
New Product 2023
-
Spindle power:
-
5.5kw Water Cooling Spindle
-
Working area:
-
1500*3000mm
-
Keyword:
-
5.5kw Stone Cnc Carving Machine
-
Control system:
-
DSP Control System
-
Motor:
-
Stepper Motor
-
Guide Rail:
-
Taiwan Hiwin Square Guide Rail
-
Application:
-
Stone Marble Granite Quartz Sandstone
-
Spindle speed:
-
24000r/min
-
Transmission:
-
Ball Screw
-
Cutting depth:
-
70-125mm
Product Description
Specification
|
X Y Working area
|
1500*3000mm
|
|
Z axis travel
|
300mm, option: 500mm, 600mm, 700mm, etc.
|
|
Machine Body
|
8mm thickness welded steel tube, cast iron vertical shafts and steel gantry
|
|
Spindle
|
4.5kw/ 5.5kw HQD water cooling
|
|
Spindle speed
|
24000rpm
|
|
Driving motor
|
Stepper/Servo motor and driver
|
|
Inverter
|
Fuling inverter
|
|
Control system
|
DSP/NC Studio/ Mach3
|
|
Interface
|
USB
|
|
Table Surface
|
T-slot aluminum+Good PVC
|
|
Guide rail
|
Hiwin linear square guide rail
|
|
Transmission
|
X/Y rack and pinion, Z ball screw
|
|
Lubrication system
|
Manual lubrication system
|
|
Tool Calibration
|
Automatic tool sensor calibration
|
|
Cables
|
Germany Igus cables with CE, cUL certificate
|
|
Compatible software
|
Artcam, Powermill, Fusion 360, etc.
|
|
Command language
|
G Code & M Code
|
|
Traveling speed
|
40m/min
|
|
Working speed
|
0-20m/min
|
|
Re-positioning accuracy
|
±0.03mm
|
|
Working voltage
|
220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ
|
Details Images
Working Sample
This stone CNC router craving machine mainly suit for stone, granite, marble engrave cutting work. But it also suit engrave and cut on soft wood,hard wood, MDF, Aluminum and plastic composite panel, Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet, PCB Aluminum sheet etc.
