Quick Details
-
Application:
-
Warehouse
-
Design Style:
-
Traditional
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
shenzhou
-
Model Number:
-
rubber foam insulation board
-
Type:
-
rubber foam tube
-
name:
-
foam rubber insulation
-
Place of Origin::
-
Hebei, China
-
Model Number::
-
GB/T13350-2000
-
Material::
-
pvc/NBR, PVC/NBR
-
Heat conductivity (w/m. k)::
-
≤0.043
-
Application::
-
Hotel, Villa, Apartment, Office Building, Hospital,
-
Hydrophobic::
-
>98.5
-
Fire resistanceclass A::
-
Grade A
-
Average fiber diameter::
-
4.0-6.0
-
Thickness: 25-100mm:
-
Thickness: 25-100mm
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
Warehouse
-
Design Style:
-
Traditional
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
shenzhou
-
Model Number:
-
rubber foam insulation board
-
Type:
-
rubber foam tube
-
name:
-
foam rubber insulation
-
Place of Origin::
-
Hebei, China
-
Model Number::
-
GB/T13350-2000
-
Material::
-
pvc/NBR, PVC/NBR
-
Heat conductivity (w/m. k)::
-
≤0.043
-
Application::
-
Hotel, Villa, Apartment, Office Building, Hospital,
-
Hydrophobic::
-
>98.5
-
Fire resistanceclass A::
-
Grade A
-
Average fiber diameter::
-
4.0-6.0
-
Thickness: 25-100mm:
-
Thickness: 25-100mm

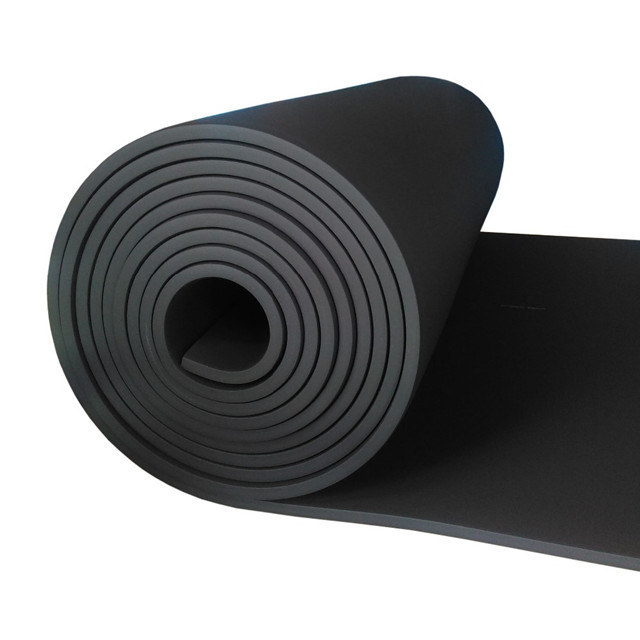

LV DU high-end rubber foam insulation materials which has introduced advanced foreign technologies and processes. After scientific research and development、technological innovation, adopting excellent performance of nitrile rubber and polyvinyl chloride as the main raw materials, and adopting Shenzhou particular "vacuum microcrystalline" foaming Technology (Vacuum Microcrystal Foaming Technique abbreviated as VMFT), made by precise control of micro-foaming. The cells are dense and high closed cell rate.
|
item
|
|
unit
|
specification
|
standard
|
|
|
density
|
|
kg/m3
|
45~55
|
GB/ T17794-2008
|
|
|
Flamm- ability
|
Oxygen index
|
%
|
≥36
|
|
|
|
|
SDR
|
—
|
≤50
|
|
|
|
|
Fire-proof level
|
—
|
B1
|
GB 8624-2012
|
|
|
|
|
|
Class0
|
BS476 Part7
|
|
|
|
|
|
V0
|
UL 94
|
|
|
conductvity factor
|
-20°C （average temperatur）
|
W/(m • K)
|
≤0.030
|
GB/T17794-2008
|
|
|
|
0°C （average temperatur）
|
|
≤0.032
|
|
|
|
|
40°C （average temperatur）
|
|
≤0.036
|
|
|
|
water vapor permeability
|
coefficient
|
g/(m • s • Pa)
|
≤1.96x10'11
|
|
|
|
|
factor
|
—
|
≥1.0x104
|
|
|
|
water adsorption ratio in vacuum
|
|
%
|
≤5
|
|
|
|
dimension stability
|
|
%
|
≤8
|
|
|
|
compression resilience ratio
|
|
%
|
≥78
|
|
|
|
Aging resistance （150h）
|
|
—
|
slightly crumpling,no cracks,no pin holes,not deforming
|
|
|
|
anti-ozone
|
|
—
|
not cracking
|
ISO 7326
|
|
|
Strong smell
|
|
—
|
≤class 2
|
Q/CYCTC 003-2013
|
|
|
applicable temperature
|
|
—
|
-40-105
|
GB/T17794-2008
|
|
