Quick Details
-
Weight:
-
Depends on the capacity
-
Product name:
-

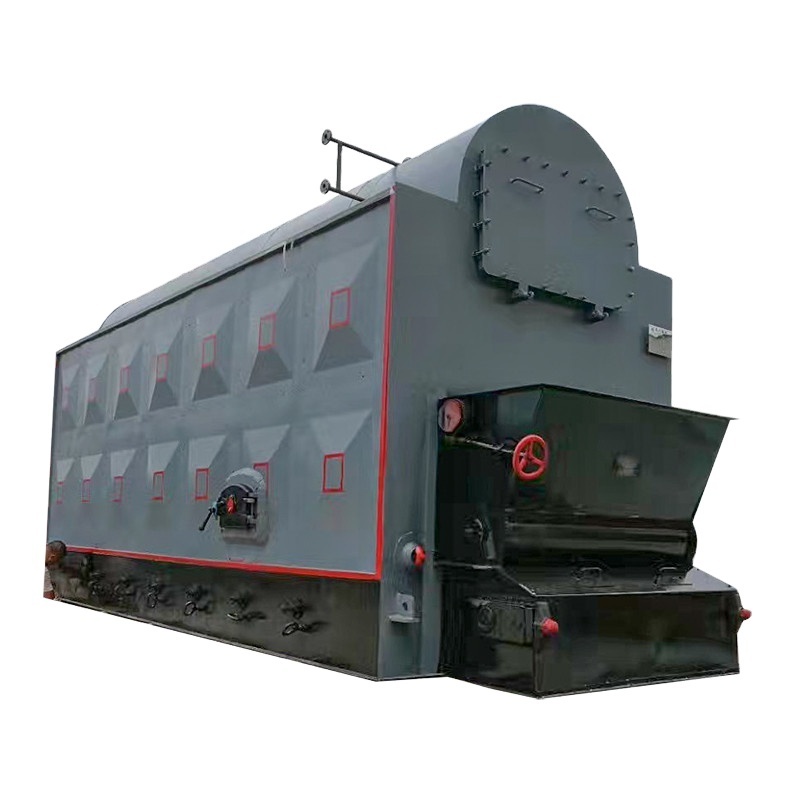

Biomass Boiler
-
Design fuel:
-
Wood Chip Pellet
-
Application:
-
Industrial Production
-
Keywords:
-
Energy Saving
-
Material:
-
Special Boiler Steel Plate
-
Fuel Type:
-
Biomass Rice Husk
-
Steam Capacity:
-
20 Ton
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Certification:
-
ISO9001, CE certificate, TUV certificate
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZHONGDE
-
Dimension(L*W*H):
-
Depends on the capacity
-
Weight:
-
Depends on the capacity
-
Product name:
-
Biomass Boiler
-
Design fuel:
-
Wood Chip Pellet
-
Application:
-
Industrial Production
-
Keywords:
-
Energy Saving
-
Material:
-
Special Boiler Steel Plate
-
Fuel Type:
-
Biomass Rice Husk
-
Steam Capacity:
-
20 Ton
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Certification:
-
ISO9001, CE certificate, TUV certificate
Product Description
Specification
|
Model
Item |
|
DZL1-0.7-AII
DZL1-1.0- AII DZL1-1.25- AII |
DZL2-0.7- AII
DZL2-1.0- AII DZL2-1.25- AII |
DZL4-1.25- AII
DZL4-1.6- AII |
DZL6-1.25- AII
DZL6-1.6- AII |
DZL8-1.25- AII
DZL8-1.6- AII |
DZL10-1.25- AII
DZL10-1.6-AII (Assembly) |
DZL20-1.6-AII
DZL20-2.5-AII (Assembly) |
|||||||
|
Steam Capacity
(t/h) |
|
1
|
2
|
4
|
6
|
8
|
10
|
20
|
|||||||
|
Steam Pressure
(MPa) |
|
0.7/1.0/1.25
|
|
1.25/1.6
|
|
|
|
|
|||||||
|
Steam Temperature
(℃) |
|
170/184/194
|
|
194/204
|
|
|
|
|
|||||||
|
Feed water
Temperature(℃) |
|
20
|
20
|
20
|
20
|
20
|
70
|
70
|
|||||||
|
Heating
Area(m2) |
Body
|
~33
|
~50
|
~100
|
~170
|
~200
|
~250
|
502
|
|||||||
|
|
Economizer
|
10.56/10.56/20.7
|
27.6
|
52.48/33.12
|
87.2
|
98
|
174
|
382
|
|||||||
|
Effective Grate
Area(m2) |
|
2.22
|
2.22
|
4.1
|
5.5
|
7.95
|
9.75
|
23.9
|
|||||||
|
Fuel Type
|
|
II Bituminous Coal, Lower Heating Value Q≈21000KJ/Kg
|
|
|
|
|
|
|
|||||||
|
Fuel Consumption
(kg/h) |
|
~151
|
~302
|
~600
|
~880
|
~1150
|
~1450
|
~1160
|
|||||||
|
Exhaust Gas
Temperature(℃) |
|
135-145
|
|
|
|
|
|
|
|||||||
|
Thermal Efficiency
(%) |
|
83-85
|
|
|
|
|
|
|
|||||||
|
Weight of Biggest Part
for Transportation(t) |
|
17
|
23
|
25
|
35
|
45
|
33(Up Part)
28(Down Part) |
50(Up Part)
28(Down Part) |
|||||||
|
Overall Dimension of
Boiler Assembled L*W*H(m) |
|
5.1×2.2×3
|
5.5×2.3×3.3
|
6.6×2.6×3.6
|
7.5×2.9×3.8
|
8.1×3.1×3.8
|
7.7×3.2×3.6
8.6×3.0×2.6 |
11×3.24×3.54
14×3.2×3.08 |
|||||||
