Quick Details
-
Material:
-
Steel
-
Brand Name:
-
China Factory
-
Place of Origin:
-
Suzhou China
-
Model:
-
DL26*35 Flexible Coupling
-
Body Material:
-
Aluminium
-
Structure Type:
-
Single/Double Diaphragm
-
Model (D*L):
-
26*35mm
-
Bore Diameter(d1~d2):
-
4-10mm
-
Shaft Dia:
-
5mm-62mm
-
Service:
-
OEM ODM Customised
-
Lock Type:
-
Clamp
-
Surface Dealing:
-
Oxidation
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Printing Shops, Construction works , Energy & Mining, Other
-
Structure:
-
Universal
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Steel
-
Brand Name:
-
China Factory
-
Place of Origin:
-
Suzhou China
-
Model:
-
DL26*35 Flexible Coupling
-
Body Material:
-
Aluminium
-
Structure Type:
-
Single/Double Diaphragm
-
Model (D*L):
-
26*35mm
-
Bore Diameter(d1~d2):
-
4-10mm
-
Shaft Dia:
-
5mm-62mm
-
Service:
-
OEM ODM Customised
-
Lock Type:
-
Clamp
-
Surface Dealing:
-
Oxidation
Products Description
Coupling Deatails
Name:

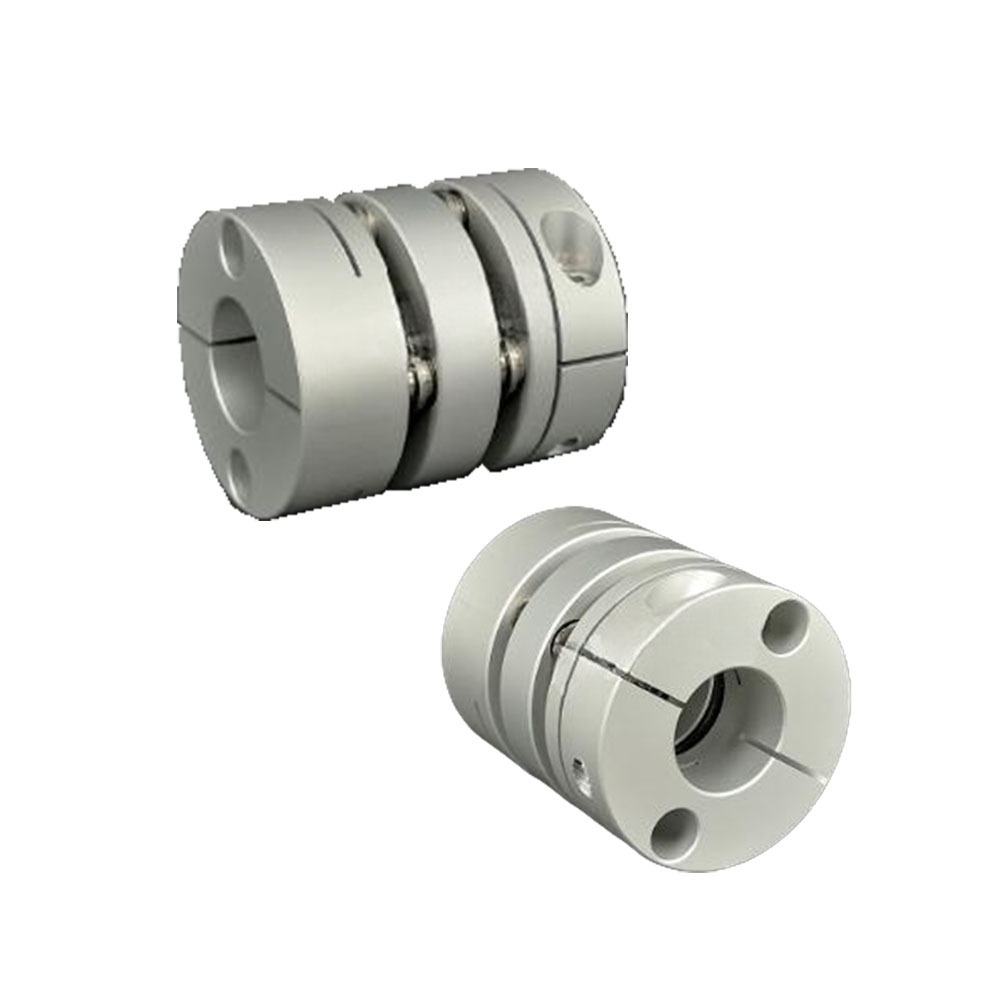

Diaphragm Coupling
coupling Model: LM-Material: Aviation Aluminum Alloy
Working temperature: -40 ° C ~ 100 ° C
Support customization: Factory direct sales support customization.
Features:
1.Intermediate Elastomer Connection-Absorbs vibration, compensates for radial, angular, and axial 2.misalignment
3.Oil resistance and electrical insulation
4.Clockwise and counterclockwise rotation characteristics are identical-there are three different hardness 5.elastomer
6.Fixation by clamping screw.
Product Paramenters
|
Model No
|
D(mm)
|
L(mm)
|
d1(min)
|
d2(max)
|
|
19*26
|
19
|
26
|
3
|
8
|
|
26*35
|
26
|
35
|
4
|
10
|
|
32*41
|
32
|
41
|
6
|
14
|
|
34*45
|
34
|
45
|
6
|
14
|
|
39*49
|
39
|
49
|
8
|
19
|
|
44*50
|
44
|
50
|
8
|
22
|
|
50*55
|
50
|
55
|
8
|
26
|
|
56*63
|
56
|
63
|
10
|
28
|
|
68*74
|
68
|
74
|
12
|
35
|
|
82*98
|
82
|
98
|
14
|
45
|
