Quick Details
-
Weight (KG):
-
1200
-
Voltage:
-
220V,Customizable
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dession
-
Dimension(L*W*H):
-
1488*1080*1490mm
-
Main Function:
-
Bag forming filling sealing
-
Packaging Range:
-
Max.10kg
-
Optional Device:
-
Gusseted bag device, bag punching device
-
Film Thickness:
-
0.04~0.08mm
-
Packaging Speed:
-
Max.80bags/min
-
Film Width:
-
Max.1020mm
-
Bag Length:
-
Max.500mm
-
Bag Width:
-
Max.500mm
-
Roll Diameter:
-
Max.320mm
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Sealing
-
Packaging Type:
-
Stand-up Pouch, Bags, Film, Pouch, sachet
-
Packaging Material:
-
Plastic
-
Weight (KG):
-
1200
-
Voltage:
-
220V,Customizable
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dession
-
Dimension(L*W*H):
-
1488*1080*1490mm
-
Main Function:
-
Bag forming filling sealing
-
Packaging Range:
-
Max.10kg
-
Optional Device:
-
Gusseted bag device, bag punching device
-
Film Thickness:
-
0.04~0.08mm
-
Packaging Speed:
-
Max.80bags/min
-
Film Width:
-
Max.1020mm
-
Bag Length:
-
Max.500mm
-
Bag Width:
-
Max.500mm
-
Roll Diameter:
-
Max.320mm

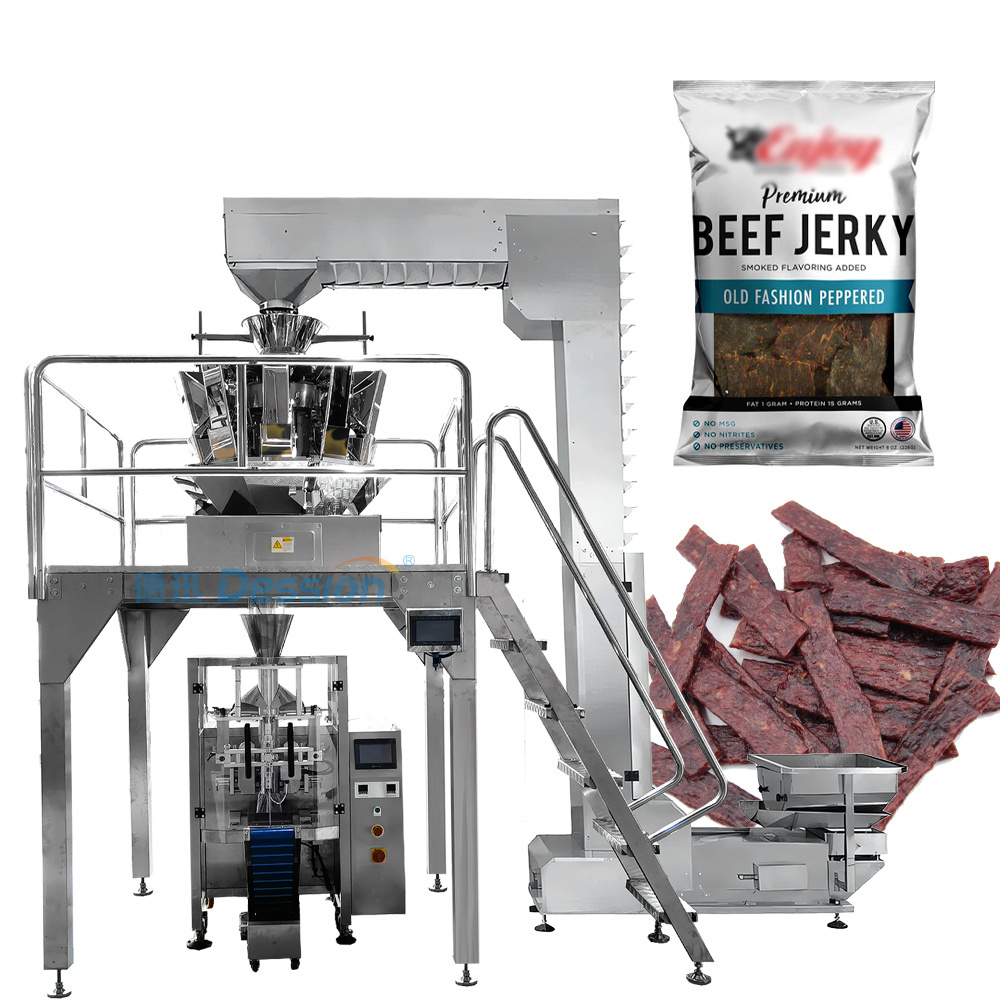

Free Package Design Automatic Electronic Scale Food Pouch Packaging Machine Beef Jerky Bag Packing Machine With Nitrogen
Machine Application
Vertical form fill seal (VFFS) packaging machines are used in almost every industry today, for good reason: They are fast, economical packaging solutions that conserve valuable plant floor space.
Whether you're new to packaging machinery or already have multiple systems, chances are you're curious as to how they work.
Vertical Form Fill Sealing Machine (VFFS) is used for packing many different products:
1. Food Industry: peanuts, popcorn, jelly, data, garlic, beans, grains, soybeans, pistachios, walnuts, rice, corn, sunflower seeds, melon seeds, coffee beans, potato chips, banana chips, plantain chips, chocolate ball, shrimp, sweet candy, sugar, tea, herbs, Chinese medicine, puffed food, dry food, frozen food, frozen vegetables, frozen pea, frozen fish ball, frozen pie, and other granule products.
2. Pet Food Industry: dog food, bird food, cat food, fish food, poultry food and etc.
3. Hardware Industry: plastic pipe elbows, nails, bolts and nuts, buckles, wire connectors, screws and other construction products.
Machine Parameters
|
Model
|
DS-420AZ
|
DS-520AZ
|
DS-720AZ
|
|
Film Width
|
Max.420mm
|
Max.520mm
|
Max.720mm
|
|
Filling Range
|
150~1500ml
|
150~2000ml
|
150~4000ml
|
|
Bag Length
|
80~300mm
|
80~350mm
|
100~450mm
|
|
Bag Width
|
60~200mm
|
80~250mm
|
100~350mm
|
|
Packaging Speed
|
5~60bags/min
|
10~50bags/min
|
10~40bags/min
|
|
Machine Power
|
220V, 50/60HZ, 2.2KW
|
220V, 50/60HZ, 3KW
|
220V, 50/60HZ, 3.6KW
|
|
Machine Size
（L*W*H）
|
1217*1015*1343mm
|
1488*1080*1490mm
|
1716*1260*1820mm
|
|
Machine Weight
|
650KG
|
750KG
|
950KG
|
Machine Features
1. The new design, beautiful appearance, the structure is more reasonable, more advanced technology.
2. English and Chinese screen display. PLC control, servo motor, very easy to operate. Do not need to stop machine to adjust any parameters.
3. Fully automatic bag forming, dosing Filling, sealing, coding, conveying, counting can be finished in one operation, most labor-saving equipment.
4. High quality stainless steel, suitable for GMP, good for food packaging with high standard.
5. Horizontal, vertical temperature control, suitable for various of mix film, PE film packing material.
6. Pocket diversification, can provide customers with pillow bags, angled bags, hanging-hole bags, vertical bags, punched bags, etc.
7. A variety of automatic alarming protective function, maximum limit to reduce wear and tear.
8. Double sever motors, drawing film position accurately, and the speed is faster.
9. Temperature independent control system, precision get to ±1°C.
2. English and Chinese screen display. PLC control, servo motor, very easy to operate. Do not need to stop machine to adjust any parameters.
3. Fully automatic bag forming, dosing Filling, sealing, coding, conveying, counting can be finished in one operation, most labor-saving equipment.
4. High quality stainless steel, suitable for GMP, good for food packaging with high standard.
5. Horizontal, vertical temperature control, suitable for various of mix film, PE film packing material.
6. Pocket diversification, can provide customers with pillow bags, angled bags, hanging-hole bags, vertical bags, punched bags, etc.
7. A variety of automatic alarming protective function, maximum limit to reduce wear and tear.
8. Double sever motors, drawing film position accurately, and the speed is faster.
9. Temperature independent control system, precision get to ±1°C.
Machine Details
Touch Screen
Packing speed,temperature capacity bag length etc.all display
Electronic Scale
Combined weighing, accurate weighing material size, how much
Z-shapeelevator
The damage to the material itself is small, and the scrap rate is reduced. Strong sealing, reduce dust flying.
Sealing And Cutting Device
PLD temperature control, automatic heat sealing,suitable for a variety of materials, to ensure airtightness
In addition to the power supply, the machine needs to be connected to the air source for
normal operation. So you need to have an air compressor. If your product needs to be
filled with nitrogen to ensure the freshness of the product, then you need to purchase a set
of nitrogen production equipment. In addition, our machines can also be equipped with
labeling machines, date coding machines, etc. to meet your production needs.
