- Product Details
- {{item.text}}
Quick Details
-
Charging Port:
-
NO
-
Connection:
-
IEC 62196-2
-
Combination:
-
NO
-
Voltage:
-
400V AC, 380V~450V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YOCAR
-
Model Number:
-
11KW
-
Operating temperature:
-
-30°C ~ +50°C
-
Mechanical life:
-
no-load socket in/pull out >10000 times
-
Contact impedance:
-
0.5mΩ Max
-
Current:
-
16A Three Phase
-
Standard:
-
IEC 61851
-
Earth leakage protection:
-
AC 30mA
-
Certificate:
-
CE
-
Cable length:
-
5M (Customizable)
-
Certification:
-
ce
Quick Details
-
Function:
-
charging EV
-
Car Fitment:
-
bmw
-
Type:
-
EVSE
-
Charging Port:
-
NO
-
Connection:
-
IEC 62196-2
-
Combination:
-
NO
-
Voltage:
-
400V AC, 380V~450V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YOCAR
-
Model Number:
-
11KW
-
Operating temperature:
-
-30°C ~ +50°C
-
Mechanical life:
-
no-load socket in/pull out >10000 times
-
Contact impedance:
-
0.5mΩ Max
-
Current:
-
16A Three Phase
-
Standard:
-
IEC 61851
-
Earth leakage protection:
-
AC 30mA
-
Certificate:
-
CE
-
Cable length:
-
5M (Customizable)
-
Certification:
-
ce
Product Paramenters

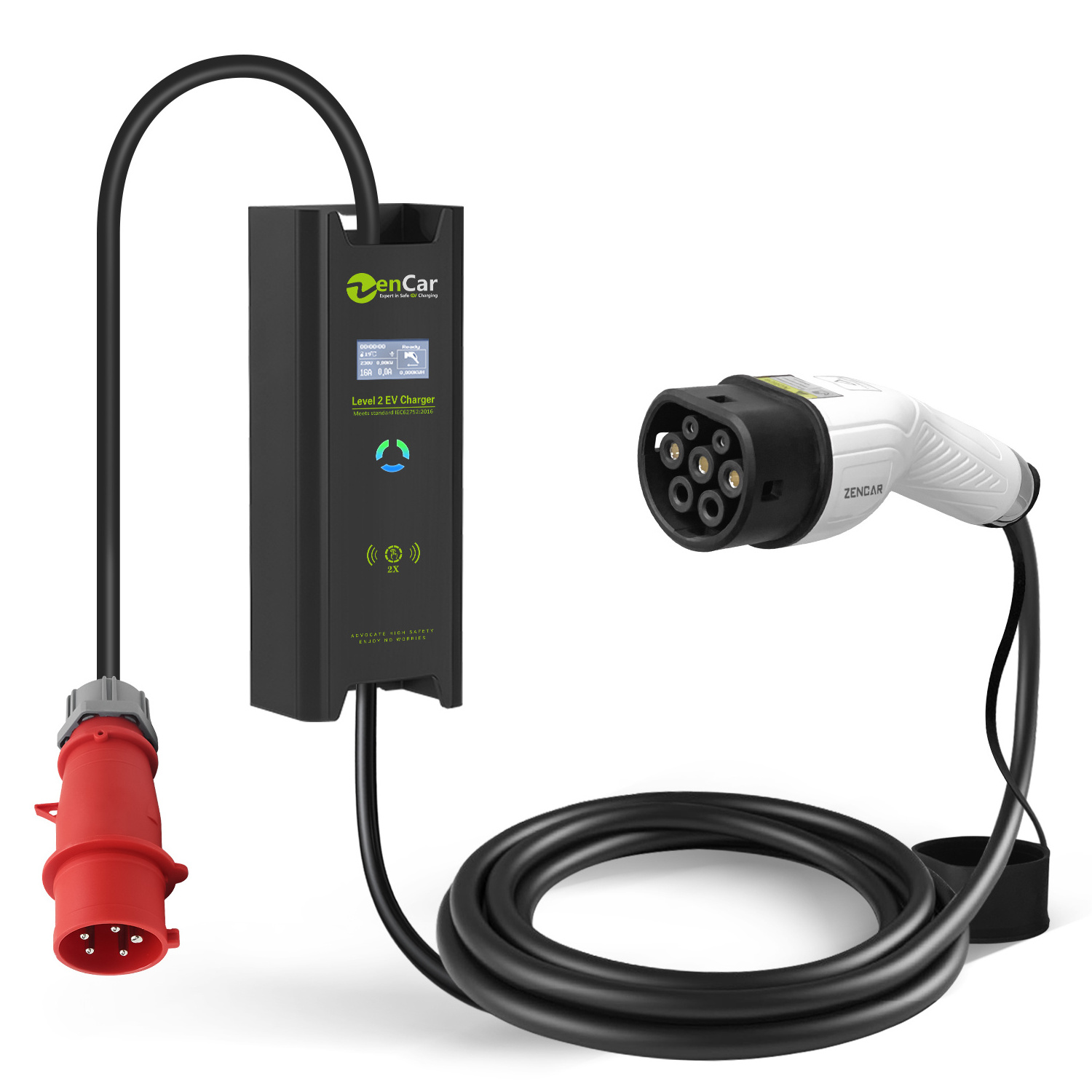

Zencar EVSE factory outlet 11kw ev charger type 2 16A 3 phase mobile electric car charger
11KW EV charger EVSE | 16A | 3 phase | Type 2 | Red CEE | 5m
|
Basic Data
|
|
|
|
|||
|
Charging Plug / Connector
|
IEC 62196-2 Type 2
|
Power side plug
|
Red CEE
|
|||
|
Input voltage
|
380V AC
|
Output voltage
|
380V AC
|
|||
|
Output current
|
6A-8A-10A-12A-16A adjustable
|
Max. output power
|
11KW
|
|||
|
Input frequency
|
50-60Hz
|
Cable length
|
5m / customized
|
|||
|
Function and Accessory
|
|
|
|
|||
|
WIFI/4G
|
NO
|
LED Indicator light
|
Flash
|
|||
|
Intelligent power adjustment
|
YES
|
LCD Screen
|
YES
|
|||
|
RCD
|
AC 30mA
|
Timing Function
|
YES
|
|||
|
Protection
|
|
|
|
|||
|
Over Voltage Protection
|
YES
|
Protection Earth Detection
|
YES
|
|||
|
Under Voltage Protection
|
YES
|
Over-temp Protection
|
YES
|
|||
|
Over current Protection
|
YES
|
Lightning Protection
|
YES
|
|||
|
Pressure Resistant
|
YES
|
Flame Resistant
|
YES
|
|||
|
Water-proof Protection
|
IP65
|
Intelligent Kernel
|
YES
|
|||
|
Electrostatic Protection
|
YES
|
Crush Test
|
YES
|
|||
|
Package
|
|
|
|
|||
|
Dimension (W/H/D)
|
410/390/100mm
|
Weight
|
3KG
|
|||
|
Packing Methord
|
Netruel /Color box
|
|
|
|||
|
Guarantee
|
|
|
|
|||
|
Warranty
|
12 months
|
Certificate
|
CE
|
|||
Certifications
