Quick Details
-
Warranty:
-
1YEAR
-
Brand Name:
-
Chenhui
-
Model Number:
-
MPB030-80w
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
/
-
Cable Length:
-
/
-
Outlet Size:
-
G1/8 OR G1/2
-
Power:
-
80W
-
motor:
-
80W DC Burshless Integreted Motor
-
Pump body material:
-
Stainless Steel 316L
-
Product name:
-
Micro Magnetic Gear Pump With 40w DC Brushless Integrated Motor
-
Material:
-
Stainless Steel
-
Feature:
-
High Efficiency
-
Function:
-
Transport Liquid
-
Color:
-
Black
-
Medium:
-
Chemical Fluid
-
Theory:
-
Magnetic Drive Gear Pump
-
Type:
-
Circulating Pumps
Quick Details
-
Application:
-
Other, Automotive Industry, Developing World Water Solutions, Drinking water treatment, Food and Beverage Industry, Industrial Boilers, Irrigation and Agriculture, Metal and Equipment Manufacturers, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
Low Pressure
-
Voltage:
-
24V, 24VDC
-
Warranty:
-
1YEAR
-
Brand Name:
-
Chenhui
-
Model Number:
-
MPB030-80w
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
/
-
Cable Length:
-
/
-
Outlet Size:
-
G1/8 OR G1/2
-
Power:
-
80W
-
motor:
-
80W DC Burshless Integreted Motor
-
Pump body material:
-
Stainless Steel 316L
-
Product name:
-
Micro Magnetic Gear Pump With 40w DC Brushless Integrated Motor
-
Material:
-
Stainless Steel
-
Feature:
-
High Efficiency
-
Function:
-
Transport Liquid
-
Color:
-
Black
-
Medium:
-
Chemical Fluid
-
Theory:
-
Magnetic Drive Gear Pump
-
Type:
-
Circulating Pumps
Products Description
Product Paramenters
Chemical 24V DC Hot Water Transfer Pump Circulation Magnet Drive Pump Gear Lubrication Oil Pump With 80W /110W BLDC Motor Coffee machine pump
|
Model
|
MPB
|
030
|
B
|
A
|
A
|
A
|
24V
|
80W
|
||||||
|
Position
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
||||||
|
1
|
Pump Series
|
MPB: Rubber O-Ring Seal
MPC: PTFE gasket seal MPD: Direct Drive (non-magnetic) |
|
|
|
|
|
|
||||||
|
2
|
Flow
|
0-3L/min
|
|
|
|
|
|
|
||||||
|
3
|
Pump Body
|
A:304；
B:316L
C:PPS D:Hastelloy
|
|
|
|
|
|
|
||||||
|
4
|
Gear/Shaft
|
A: Gear PEEK+ shaft 316L
B: Gear PEEK+ shaft ceramic C: Gear PEEK+ shaft tungsten steel |
|
|
|
|
|
|
||||||
|
5
|
Inlet/Outlet Thread
|
A: G1/8
B: G1/4 C: 3/8 D: 1/2 E: 3/4 F: 1 "G: 1 1/4", H: other customzations; (Letter: tooth)
1:25.4 2:34 3:38 4:50.5 5:649: Other customizations (Number: Chuck) |
|
|
|
|
|
|
||||||
|
6
|
Motor
|
A：BL( DC Brushless Motor)
B：DC(DC Brushed Motor)
C：SM(Stepper Motor) D：SVCA（Servo Motor） E：ACIM （3 Phase Asynchronous Motor) F：ACIMB （Explosion -Proof 3 Phase Asynchronous Motor） G：BLB （Explosion-Proof Brushless DC Motor） |
|
|
|
|
|
|
||||||
|
7
|
Voltage
|
24V
/ 48V / 220V / 380V
|
|
|
|
|
|
|
||||||
|
8
|
Power
|
30W/
40W
/60W/
70W
/
80W
/100W/
110W
/
1
50W/200W/250W/300W/370W/400W/550W/750W/1000W
|
|
|
|
|
|
|
||||||
Technical Parameters
|
Medium viscosity range
|
0-3000cps
|
|
|
|
|||
|
Medium temperature
|
-30℃-120℃
|
|
|
|
|||
|
Pressure difference
|
0-18Bar
|
|
|
|
|||
|
Type of medium
|
Almost all liquids except strong acids and bases
|
|
|
|
|||
|
Inlet filter
|
Recommended 4000mesh
|
|
|
|
|||
|
Inlet vacuum
|
-0.85Bar
|
|
|
|
|||
|
Drive Motor
|
800w DC brushless MOTOR
|
|
|
|
|||
|
Working noise
|
4000rpm<60dB
|
|
|
|
|||
|
Working speed
|
0-4500rpm
|
|
|
|
|||
|
Motor Parameters
|
|
|
|
Power
|
80w
|
|
|
Electric current
|
5A
|
|
|
Voltage(V)
|
24V
|
|
|
Rev/min
|
4500RPM
|
|
Product Features

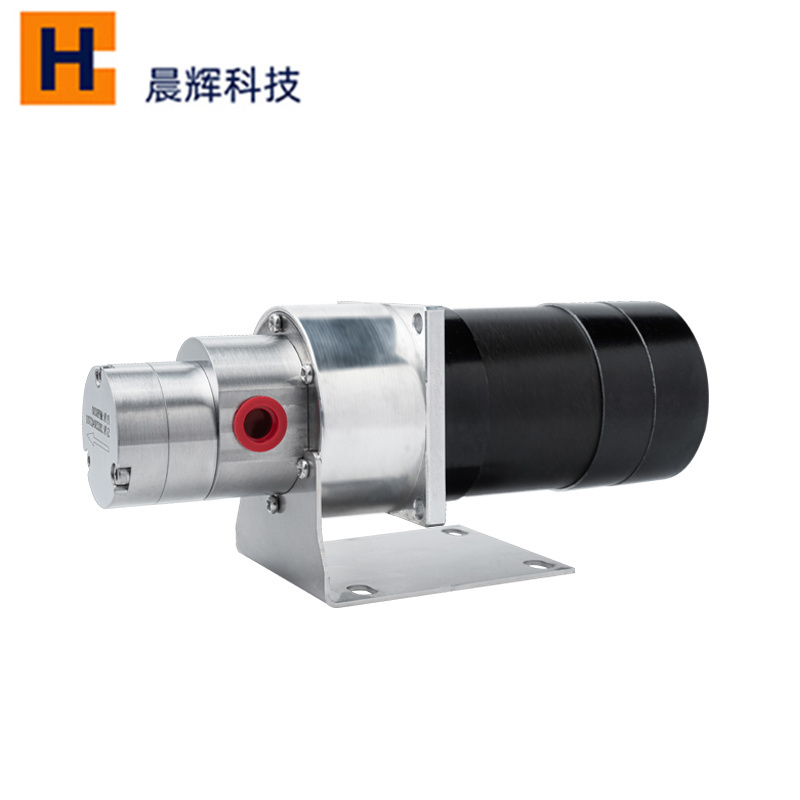

MPB030-80W
DC Brushless
Micro Magnetic Drive Gear pump
is equipped with a 80W Brushless DC Motor, long lifespan and stable operation. It enables precise control over the motor's current, speed, and position through internal drivers, ensuring high precision and controllability. Particularly suitable for the precise and stable conveyance of low-flow fluids.
1. No pulse accurate delivery
Through the gears to provide continuous accurate fluid transportation. with servo motor and stepper motor delivery accuracy of +/-0.5%.
2. Strong vacuum suction capacity High and Stable Conveyance Pressure
High conveying pressure and smooth Operation High pressure delivery in low viscosity liquids.
3. No leakage
Magnetic drive and static O-ring seal can ensure that the medium in the pump is isolated from the outside world to achieve no leakage.
4.Long Lifespan
High-performance and precision technology, advanced craftsmanship to extend its operational lifespan.
5. Compact structure
:
Micro magnetic gear pumps are usually small and compact, suitable for space-constrained applications.
6. Low noise and high
performance
Environmental protection and energy saving, low energy consumption and stable performance.
|
1
|
Inner-hexagon screw*3
|
2
|
Front end cover
|
3
|
Sealing ring *1
|
|
4
|
Dowel*2
|
5
|
Driving gear
|
6
|
Driven gear
|
|
7
|
Pump Chamber/ Pump body
|
8
|
Shaft sleeve*6
|
9
|
Main body
|
|
10
|
Sealing ring 2
|
11
|
Internal magnetic steel
|
12
|
Mounting plate Shielding case
|
|
13
|
Mounting plate
|
14
|
Countersunk head screw head M3*6
|
|
|
Main Applications:
Widely used in Laser Cooling Instrument testing; Coffee machine;Food processing; Fine chemistry; Packaging machinery; ink jet printer; Medical treatment and medicine; Agricultural spraying other more fields.
