Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DAIER
-
Model Number:
-
GQ22F-11EM
-
Item number:
-
Metal Push Button Switch
-
Electric life:
-
50,000 cycles
-
Contact Resistance:
-
50 mΩ max
-
Insulation Resistance:
-
500V DC 1000MΩ Min
-
Dielectric Strength:
-
2000VAC
-
Operating Temperature:
-
-20°C ~+55°C
-
Function:
-
SPDT 1NO+1NC
-
Operational Force:
-
5N Max
-
Material:
-
Stainless Steel
-
Led Lamp Color:
-
Red/Green/Blue/White/Yellow/Orange
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
5A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DAIER
-
Model Number:
-
GQ22F-11EM
-
Item number:
-
Metal Push Button Switch
-
Electric life:
-
50,000 cycles
-
Contact Resistance:
-
50 mΩ max
-
Insulation Resistance:
-
500V DC 1000MΩ Min
-
Dielectric Strength:
-
2000VAC
-
Operating Temperature:
-
-20°C ~+55°C
-
Function:
-
SPDT 1NO+1NC
-
Operational Force:
-
5N Max
-
Material:
-
Stainless Steel
-
Led Lamp Color:
-
Red/Green/Blue/White/Yellow/Orange
|
Name
|
Push Button Switch
|
|
Protection Level
|
IP67
|
|
Max.Current
|
5A
|
|
Max.Voltage
|
250VAC
|
|
Certificate
|
CE,Rohs,,CQC
|
|
Electrical Life
|
100,000Cycles
|
|
OEM&ODM
|
Yes
|
|
Product Name
|

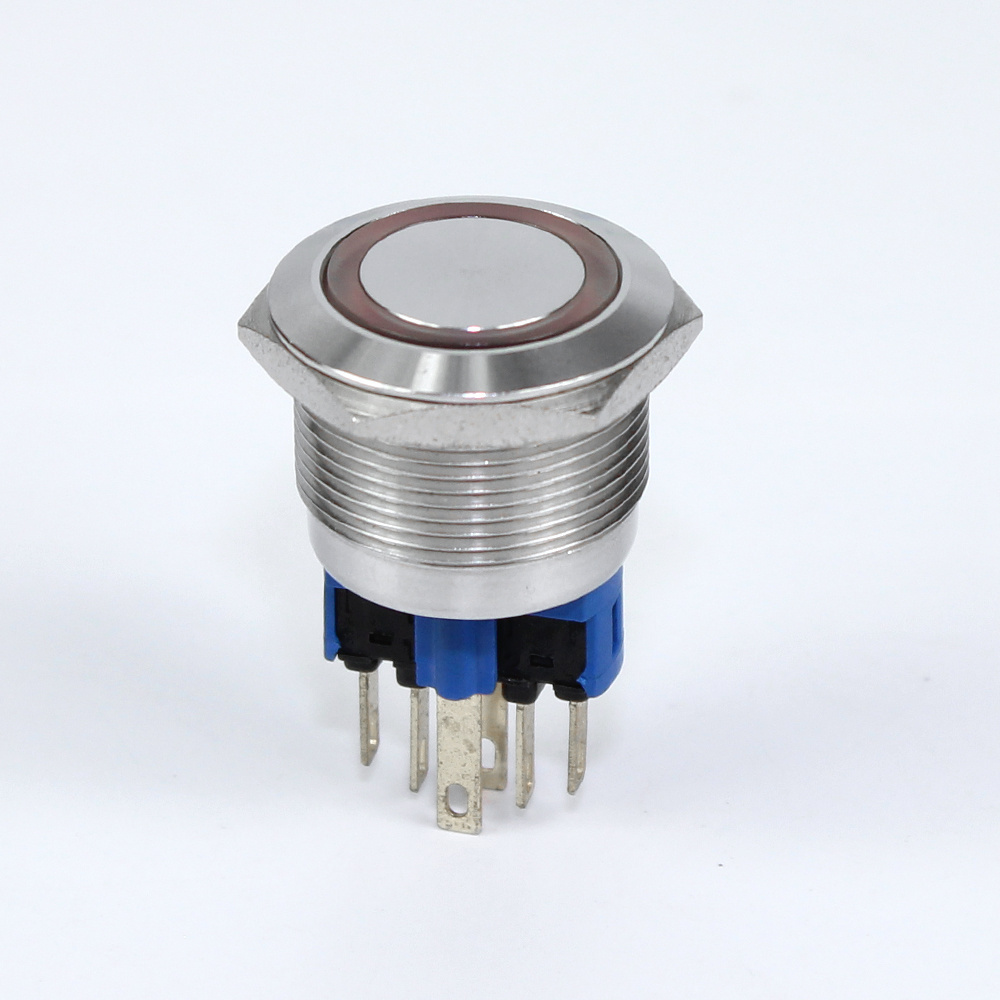

IP67 220V flat momentary 22mm spst switch push button led
|
|
Rating
|
5A 250VAC
|
|
Mounting Size
|
22mm
|
|
IP Class
|
IP67
|
|
Function
|
SPDT 1NO1NC
|
|
Led Lamp Color
|
Red/Green/Blue/White/Yellow/Orange
|
GQ22F-11EM
Specifications:
1. Rating: 5A 250VaC
2. Electrical Life: 50,000 Cycles
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:1000Ω Min
5. Dielectric Strength: 2000VAC
6. Operating Temperature:-20°C~+55°C
7. Function: SPDT 1NO+1NC
8. Operating Force: 5N Max
Specifications:
1. Rating: 5A 250VaC
2. Electrical Life: 50,000 Cycles
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:1000Ω Min
5. Dielectric Strength: 2000VAC
6. Operating Temperature:-20°C~+55°C
7. Function: SPDT 1NO+1NC
8. Operating Force: 5N Max
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
