Quick Details
-
Bottle Volume(ml):
-
1890 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
V PACK
-
Year:
-
2023
-
Voltage:
-
Customer
-
Dimension(L*W*H):
-
2400*800*1600 mm
-
Hollow part volume:
-
18.9L
-
Clamping Force (kN):
-
80
-
Power (kW):
-
15
-
Weight (KG):
-
900 KG
-
Product name:
-
Blow Moulding Machine
-
Bottle material:
-
Pet Plastic
-
Weight:
-
900KG
-
Power:
-
15KW
-
Cavity:
-
1 Cavity
-
Capacity:
-
80-100BPH
Quick Details
-
Neck Diameter(mm):
-
50 mm
-
Max.Bottle Diameter(mm):
-
270 mm
-
Max.Bottle Height(mm):
-
490 mm
-
Bottle Volume(ml):
-
1890 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
V PACK
-
Year:
-
2023
-
Voltage:
-
Customer
-
Dimension(L*W*H):
-
2400*800*1600 mm
-
Hollow part volume:
-
18.9L
-
Clamping Force (kN):
-
80
-
Power (kW):
-
15
-
Weight (KG):
-
900 KG
-
Product name:
-
Blow Moulding Machine
-
Bottle material:
-
Pet Plastic
-
Weight:
-
900KG
-
Power:
-
15KW
-
Cavity:
-
1 Cavity
-
Capacity:
-
80-100BPH
Products Description
Product Application

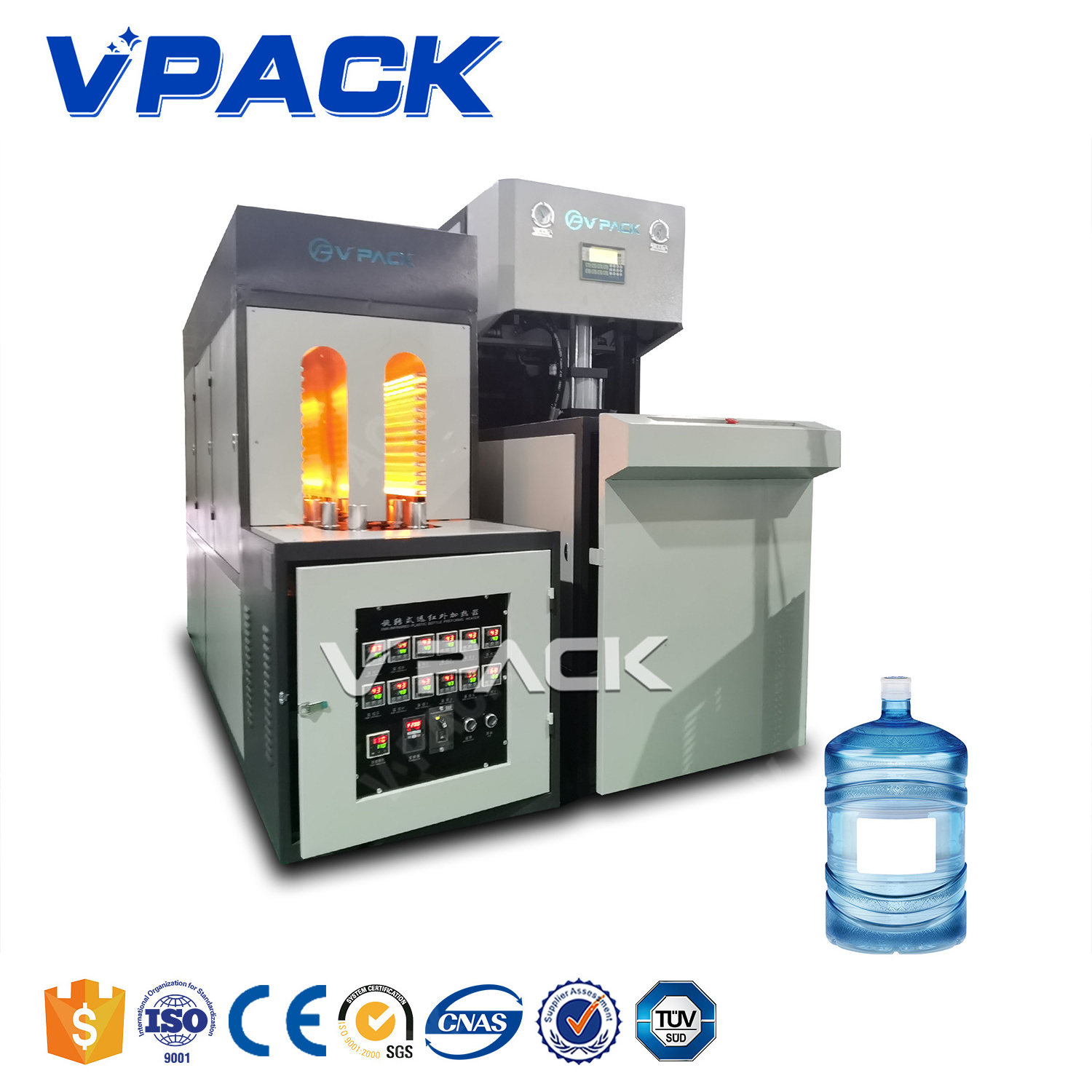

Semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 100-2000ml. It is widely used to produce the mineral water bottle, carbonated soft drink,juice,oil bottle etc..
Main Features
1.Adopting double crank to adjust mould, heavy locking mould, stable and fast ,Adopt infrared oven to heat the preform, the preform rotated and heated equally.
2.The air system has been divided into two parts: physical movement of machine and blowing movement. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3.The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4.The machine can be operated in the step-by-step mode and the semi-auto mode. 5.The machine is small with low investment, easy to operate.
Aluminium
Bottle Mold
Mold with long service life and direct manufacturer price. Main material include: cast iron, copper, bronze alloy, stainless steel etc.
Product is durable, and its service life can reach more than 54X hundred thousand times.
Product with the characteristics of high temperature resistant and antioxidant.
Blow the bottle mould to use the computer design, by computer numerical control and CNC machining center precise processing.
Product is durable, and its service life can reach more than 54X hundred thousand times.
Product with the characteristics of high temperature resistant and antioxidant.
Blow the bottle mould to use the computer design, by computer numerical control and CNC machining center precise processing.
Heater Temperature Adjustment
The distant infrared ray heat pipe are used in the machine It has high pressure protection with the feature of precisely removing mould The machine has no noise It is easy to maintain , It's the equipment for producing PET bottles
Famous brand & High quality & Long time use
Servo motor
Brand : Mitsubishi
Original : Japan
PLC
Brand : OMRON
Original : Japan
Product Paramenters
|
Model
|
VPK-C5GL
|
VPK-8Y
|
|
Production Capacity
|
80-120BPH
|
1200-1800BPH 500ML
|
|
Dimension for blow machine
|
2400*800*1600mm
|
1600*600*1610mm
|
|
Dimension for oven
|
2620*670*1600mm
|
1870*630*1450mm
|
|
Total power
|
15kw
|
17.5kw
|
|
Total weight
|
900kg
|
1000kg
|
