Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
LONGi Solar
-
Model Number:
-
LR5-72HTD 550~580M
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2278*1134*35mm
-
Product name:
-

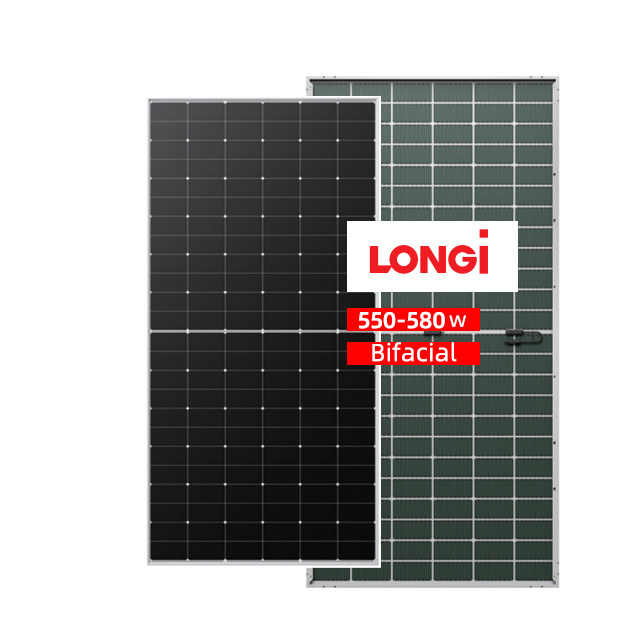

Longi LR5-72HTD Bifacial Monocrystalline 550-580W Solar Panel
-
Keyword:
-
longi solar panel
-
Brand:
-
LONGi
-
Frame:
-
Anodized Aluminium Alloy
-
Application:
-
Commercial,Industrial,Home
-
Weight:
-
32.6kg
-
Operational Temperature:
-
-40℃~+85℃
-
Glass:
-
Dual Glass, 2.0mm coated semi tempered glass
-
Junction Box:
-
IP68 Three Diodes
-
Packing:
-
wooden pallet
Quick Details
-
Cell size:
-
182mmx91mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass
-
Panel Efficiency:
-
22.5%
-
Warranty:
-
25 years
-
Brand Name:
-
LONGi Solar
-
Model Number:
-
LR5-72HTD 550~580M
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2278*1134*35mm
-
Product name:
-
Longi LR5-72HTD Bifacial Monocrystalline 550-580W Solar Panel
-
Keyword:
-
longi solar panel
-
Brand:
-
LONGi
-
Frame:
-
Anodized Aluminium Alloy
-
Application:
-
Commercial,Industrial,Home
-
Weight:
-
32.6kg
-
Operational Temperature:
-
-40℃~+85℃
-
Glass:
-
Dual Glass, 2.0mm coated semi tempered glass
-
Junction Box:
-
IP68 Three Diodes
-
Packing:
-
wooden pallet
Specification
|
Module TYPE
|
LR5-72HTD-550M
|
LR5-72HTD-555M
|
LR5-72HTD-560M
|
LR5-72HTD-565M
|
LR5-72HTD-570M
|
LR5-72HTD-575M
|
LR5-72HTD-580M
|
||||||
|
Maximum Power(Pmax/W)
|
550
|
555
|
560
|
565
|
570
|
575
|
580
|
||||||
|
Opern Circuit Voltage(Voc/V)
|
51.40
|
51.55
|
51.70
|
51.85
|
52.00
|
52.15
|
52.30
|
||||||
|
Short Circuit Current(Isc/A)
|
13.74
|
13.80
|
13.87
|
13.93
|
14.00
|
14.06
|
14.13
|
||||||
|
Voltage at Maximum Power(Vmp/V)
|
42.95
|
43.10
|
43.25
|
43.40
|
43.55
|
43.70
|
43.85
|
||||||
|
Current at Maximum Power(Imp/A)
|
12.82
|
12.88
|
12.95
|
13.02
|
13.09
|
13.16
|
13.23
|
||||||
|
Module Efficiency(%)
|
21.3
|
21.5
|
21.7
|
21.9
|
22.1
|
22.3
|
22.5
|
||||||
|
STC
|
AM1.5 1000W/㎡ 25℃ NOCT: AM1.5 800W/㎡ 20℃ 1m/s
|
|
|
|
|
|
|
||||||
