Quick Details
-
Surface Roughness(μm):
-
0.63 μm
-
Table Size(mm):
-
3000x1712x2057mm
-
Year:
-
2024
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
261x167x242cm
-
Weight (KG):
-
624
-
Power (kW):
-
7.5
-
Product name:
-
Surface grinding machine
-
Hand wheel grinding head feed (vertical):
-
0.5mm
-
Rotate speed:
-
1440 r/min
-
Worktable size(W x L):
-
320*1000mm
Quick Details
-
Grinding Length(mm):
-
1000
-
Table Travel (X) (mm):
-
1100
-
Table Travel (Y) (mm):
-
570
-
Surface Roughness(μm):
-
0.63 μm
-
Table Size(mm):
-
3000x1712x2057mm
-
Year:
-
2024
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
261x167x242cm
-
Weight (KG):
-
624
-
Power (kW):
-
7.5
-
Product name:
-
Surface grinding machine
-
Hand wheel grinding head feed (vertical):
-
0.5mm
-
Rotate speed:
-
1440 r/min
-
Worktable size(W x L):
-
320*1000mm

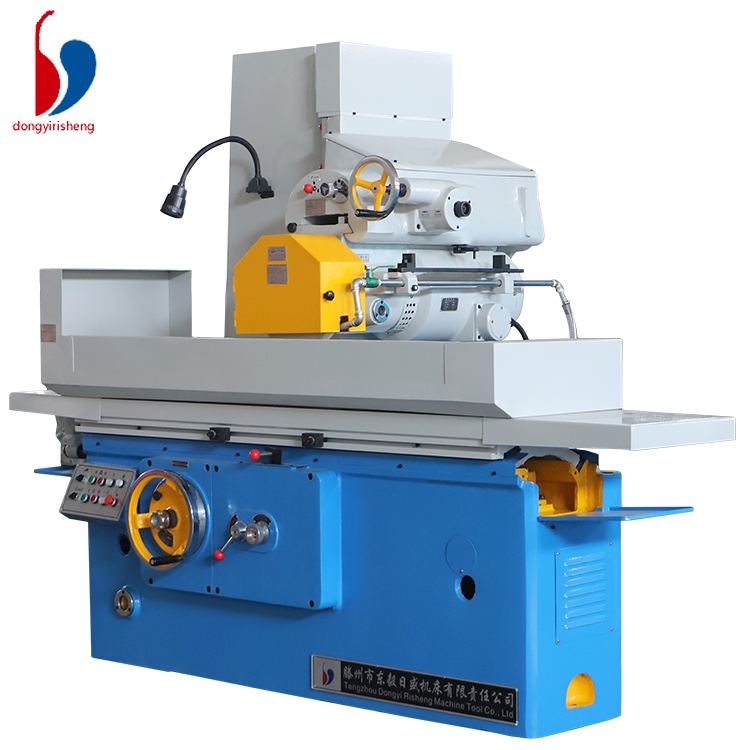

High precision automatic CNC hydraulic hand small manual surface grinding machine
Products Description
Product Paramenters
|
Item
|
Unit
|
M7130
|
|
Worktable size(W x L)
|
mm
|
320×1000
|
|
Max. grinding size(W x L x H)
|
mm
|
320×1000×400
|
|
Worktable speed (stepless speed regulating)
|
m/min
|
3-25
|
|
Worktable bearing load (Including electro-magnetic chuck)
|
kg
|
500
|
|
Electro-magnetic chuck size (W x L)
|
mm
|
300×1000
|
|
Hand wheel grinding head feed (vertical)
|
mm
|
0.5
|
|
Vertical feed hand wheel min. scale value
|
mm
|
0.01
|
|
The grinding wheel size (diameter x width x inner diameter)
|
mm
|
φ350×40×φ127
|
|
Rotate speed
|
r/min
|
1440
|
|
Machine overall dimension (L x W x H)
|
mm
|
3000×1712×2057
|
|
Net weight
|
kg
|
About 3200
|
|
model
|
max. grinding size
(W x L x H)
|
Grinding head motor
|
Grinding Wheel Size(O.D×W×I.D)
|
Max. workpiece weight
|
Net weight
|
|
M7140-GM
|
400×l000×400mm
|
7.5kW
|
φ350×40×φ127m
|
624kg
|
About 3900kg
|
|
M7163×20-GM
|
630×2000×500 mm
|
9kW
|
φ400×50×φ203mm
|
1500kg
|
about 9000kg
|
|
M7163×30-GM
|
630×3000×500mm
|
9kW
|
φ400×50×φ203mm
|
1500kg
|
about 9500kg
|
|
MK7130×6/T
|
600×300×400mm
|
4KW
|
φ350×40×φ127mm
|
280kg
|
about 2800kg
|
|
MQ7150-GM
|
500×l000×600mm
|
7.5kW
|
Φ400×50×φ203mm
|
800kg
|
About 4100kg
|
Details Images
Grinding head
Manual grinding head,equipped with a rapid lifting mechanism, using a built-in motor, the spindlehas good rigidity and high precision.
Electromagnetic
chuck
It is simple to operate,saves time and can be used continuously for more than 20 hours
Control Device
Button control, movable adjustment, operation Convenience.The operation is simple and the start and stop are clear at a glance.
High-precision metal feed handwheel, easy to control.High-precision grinding model with an accuracy of 0.002MM.
The castings have goodstability, high strength, andartificial aging treatment toensure the dimensionalaccuracy of the castingsfinishing.
