Quick Details
-
Fit Link Pitch:
-
135,171,175,190,203,216,228
-
Certification:
-
ISO9001-2008
-
Usage:
-
track repair,track pin puller
-
Fit Machine:
-
PC45-PC400,E70-D9L,D20--D155
-
Delivery time:
-
in stock
-
Pressure:
-
100T/150T
-
Maximum diameter:
-
36 mm
-
Working Flow:
-
1.2L/min
Quick Details
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Track Link Assembly
-
Mobile:
-
+86 18363622192
-
Fit Link Pitch:
-
135,171,175,190,203,216,228
-
Certification:
-
ISO9001-2008
-
Usage:
-
track repair,track pin puller
-
Fit Machine:
-
PC45-PC400,E70-D9L,D20--D155
-
Delivery time:
-
in stock
-
Pressure:
-
100T/150T
-
Maximum diameter:
-
36 mm
-
Working Flow:
-
1.2L/min
Product Description

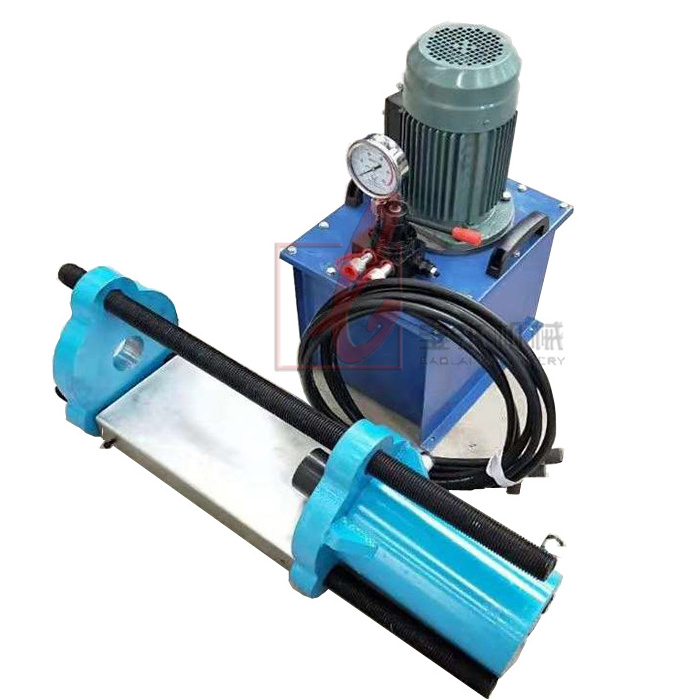

100T/150T Portable hydraulic track link pin press for sale
Mobile/Whatsapp/Wechat: +8618363622192
Specification
100T TRACK PIN PRESS MAIN PARAMETERS
|
1
|
Nominal force of oil cylinder
|
1000KN/100T
|
|
2
|
Press stroke
|
180mm
|
|
3
|
Rated pressure
|
20Mpa
|
|
4
|
Center height
|
100mm
|
|
5
|
Motor power
|
2.2KW/3KW/4KW
|
|
6
|
Voltage
|
220V
|
|
7
|
Rated flow
|
5 ML/R
|
|
8
|
Mobile
|
+86 18363622192
|
|
9
|
Weight
|
110KG
|
|
10
|
Dimension
|
L610 * W610 * H450mm
|
200T TRACK PIN PRESS MAIN PARAMETERS
|
1
|
Nominal force of oil cylinder
|
2000KN/200T
|
|
2
|
Press stroke
|
180mm
|
|
3
|
Rated pressure
|
31.5/45Mpa
|
|
4
|
Center height
|
110mm
|
|
5
|
Motor power
|
4KW
|
|
6
|
Rated flow
|
5ml/r
|
|
7
|
Mobile
|
+86 18363622192
|
|
8
|
Weight
|
150KG
|
|
9
|
Voltage
|
220V/380V
|
|
10
|
Dimension
|
L610 * W610 * H450mm
|
Packing & Delivery
Pallet, standard wooden case.
Delivery time: in stock
Monthly production:500 sets per month
